vPad-A1 OPERATORS MANUAL

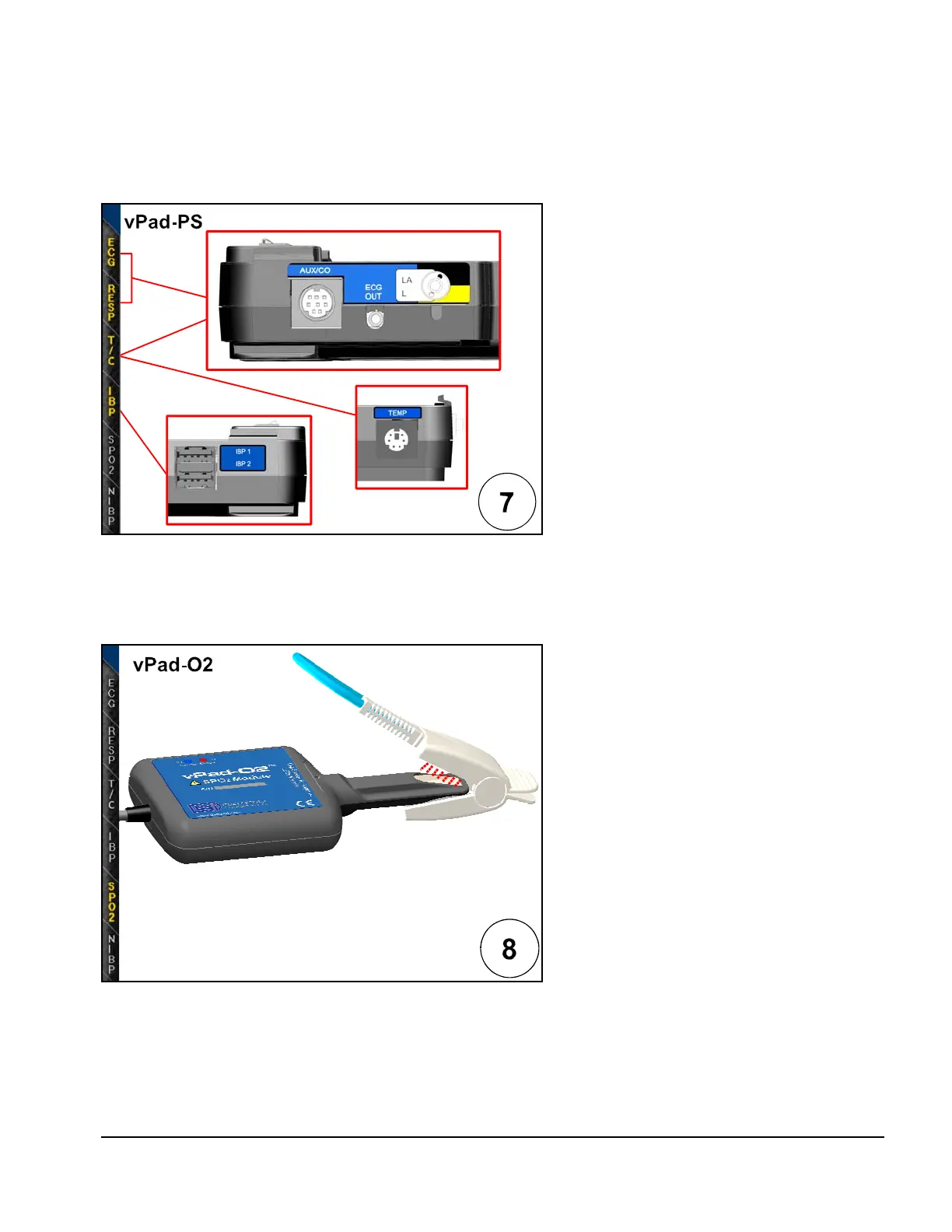

Make connections between the patient monitor under test and the simulation/test modules of vPad-A1.
vPad-PS module:
• ECG – snap connectors/adapter
• Respiration – same as above
• Temperature – TEMP connector
• Cardiac Output – AUX/CO connector
• IBP – IBP1/IBP2 connectors
vPad-O2 module:
• SpO2 – probe on finger sensor
(with red and infrared LEDs on
the same side as the module's
"vPad-O2" label)
Figure 11
Figure 12
Setup/Chapter 3 # Page 25
