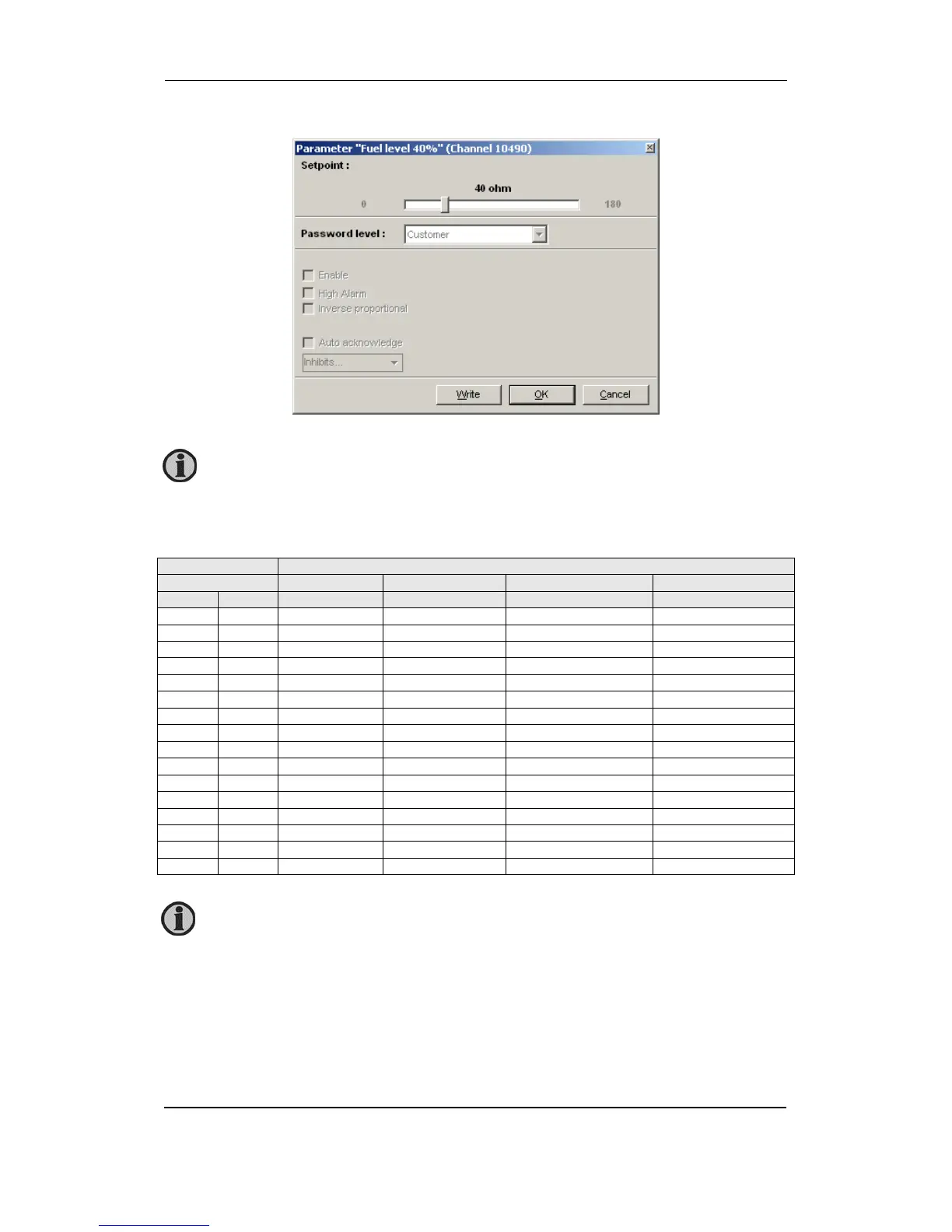

The PC utility software setting looks like this:
VDO input 2, oil pressure
VDO sensor type
Pressure Type 1 Type 2 Type 3 Type 4
Bar Psi
   
0 0 10.0 10.0 Configurable
0.5 7 27.2
1.0 15 44.9 195.6
1.5 22 62.9
2.0 29 81.0 51.5 162.2
2.5 36 99.2
3.0 44 117.1 71.0 135.7
3.5 51 134.7
4.0 58 151.9 89.6 116.6
4.5 65 168.3
5.0 73 184.0 107.3 98.0
6.0 87 124.3 78.9
7.0 102 68.8
8.0 116 155.7 57.2
9.0 131 47.7
10.0 145 184.0 40.0
Type 4 is fully configurable with eight points in the range 0 to 240 
and 0 to
10.0 bar. The parameter settings can be found from menu 10810.
Eight settings are available from 0 to 150 %.
