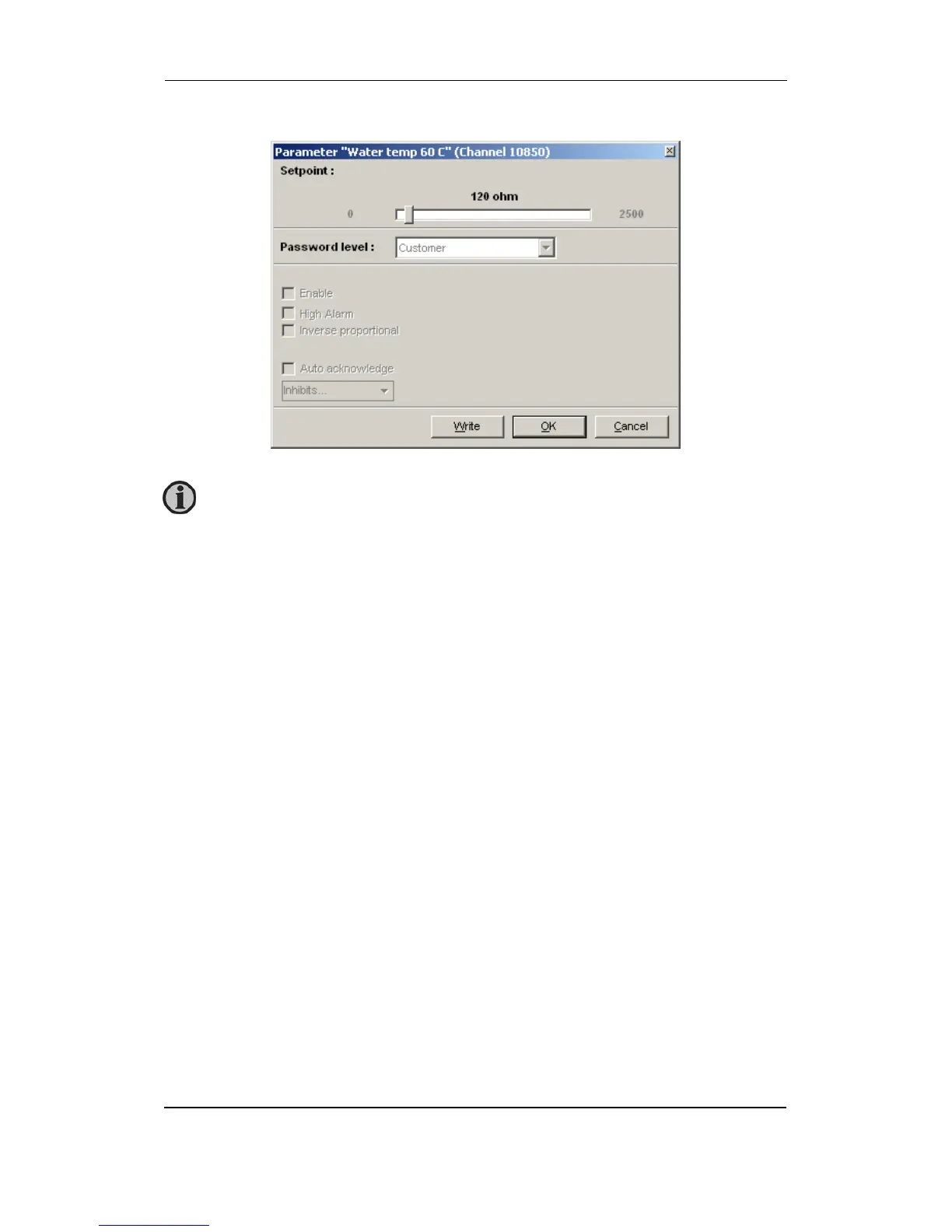

The PC utility software setting looks like this:
VDO usage
The VDO inputs are used as alarm inputs and can be configured in the following menus.
VDO input 2: Lubricating oil pressure - alarm settings in menus:
4310 VDO oil press. input 2.1
4320 VDO oil press. input 2.2
VDO input 3: Cooling water temperature - alarm settings in menus:
4460 VDO water temp. input 3.1
4470 VDO water temp. input 3.2
4630 VDO low w. temp. input 3.3
VDO input 1: Fuel level - alarm settings in menus:
4220 VDO fuel level input 1.1
4230 VDO fuel level input 1.2
4620 VDO fuel level input 1.3
In addition, VDO input 1 is also used for the fuel logic function.
Eight settings are available from 0 to 150 ° or 104 to 302 °F.
