Delem
V0505, 3.9
(GN) = 3)
gauge position = 3. lay on third level (only possible when number of gauge positions
(GN) =4)

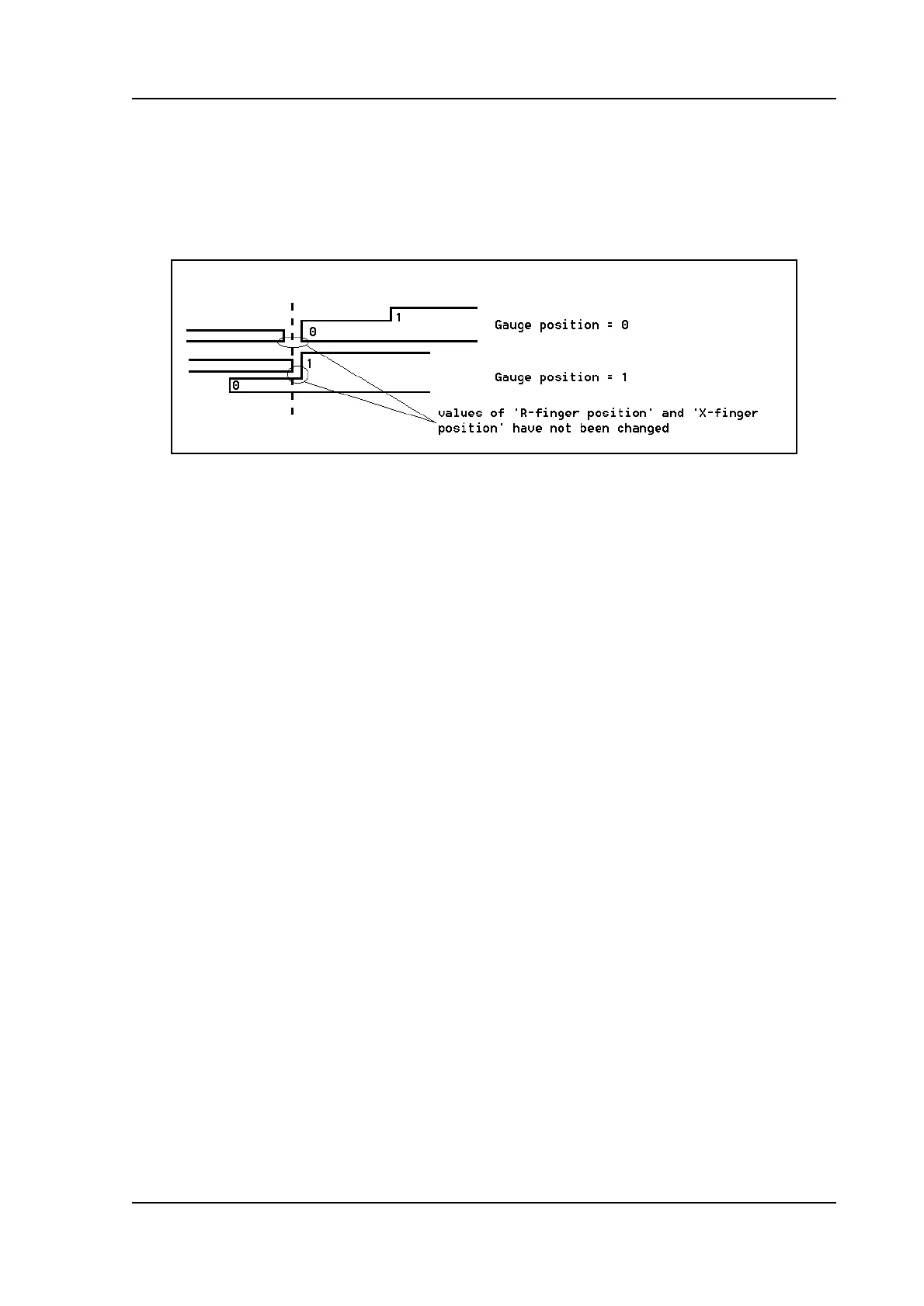

When you program another ‘Gauge position’ the backgauge position changes, but the
gauge position for the plate does not change. This means that the next two parameters
‘R-finger position’ and ‘X-finger position’ remain the same. See also example below.
3.f
R-finger position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .R
Default value = the height (R direction) of the gauge position of the plate. This value can
manually be adjusted in this window, if required.
X-finger position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .X
Default value = the value in X-direction of the gauge position for the plate. This value
can manually be adjusted in this window, if required.
With ‘END’ you leave the window and the new values have been saved. If you press
‘cancel’ you leave the window without changes.
When you have changed the ‘Gauge position’ then the axes positions in X- and R-direc-
tion have also been changed. Therefore the parameters ‘backgauge position...X’ and ‘R-
axis....R’ have been changed. The new values depend on the dimensions of the back-
gauge finger which you have programmed in the menu ‘program constants’. When you
have changed the values of ‘R-finger position’ and ‘X-finger position’, then these
changes are also included.
Retract . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .DX
Retract distance of backgauge during the bending. The "backgauge retract" is started at
the pinching point of the plate.
code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .CX
Programmable parameter which determines when the parameter values for the next
bending will be active. The possibilities are:
0 = Bending number change (step change) at end of decompression (next bend parame-
