Removing the rear bezel
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps
in Before working inside your computer. After working inside your computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/regulatory_compliance.
Topics:
• Prerequisites
• Procedure
Prerequisites
1. Remove the stability foot.
2. Remove the left and right side-panels. See “
Removing the side panels”.
3. Follow the procedure from step 1 to step 3 in Removing the handle bars to remove the rear handle bar.
Procedure

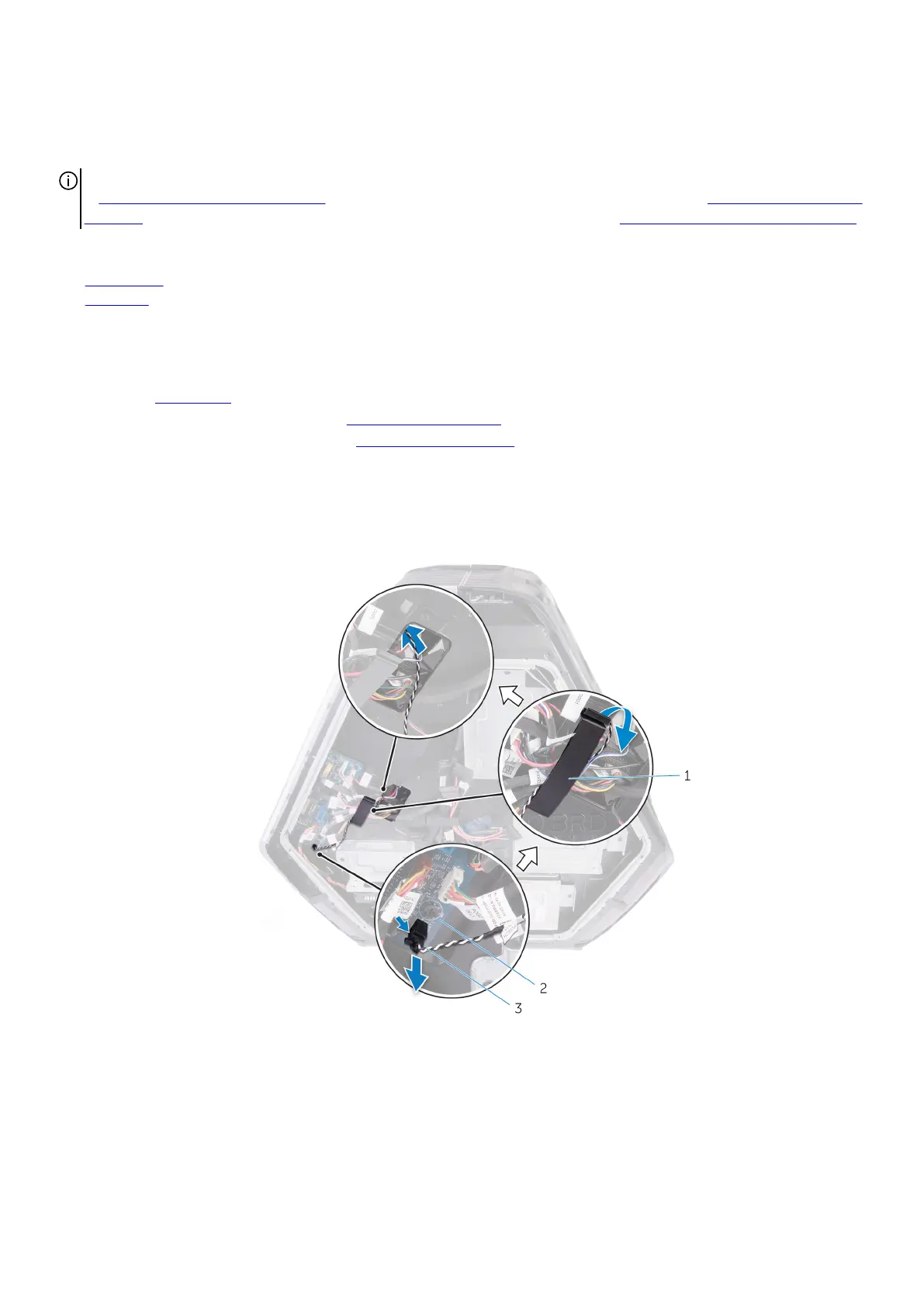

1. Disconnect the rear I/O accessibility lighting cable from the I/O board.
a. securing clip
b. I/O board
c. rear I/O accessibility lighting cable
2. Open the securing clip which secures the rear I/O accessibility lighting cable to the chassis.
3. Remove the rear I/O accessibility lighting cable through the slot on the chassis.
