Removing the logo board
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps
in Before working inside your computer. After working inside your computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/regulatory_compliance.
Topics:
• Prerequisites
• Procedure
Prerequisites
1. Remove the stability foot.
2. Remove the left and right side-panels. See “
Removing the side panels”.
3. Remove the top fan.
Procedure
NOTE: Note the routing of all cables as you remove them so that you can route them correctly after you replace the logo board.

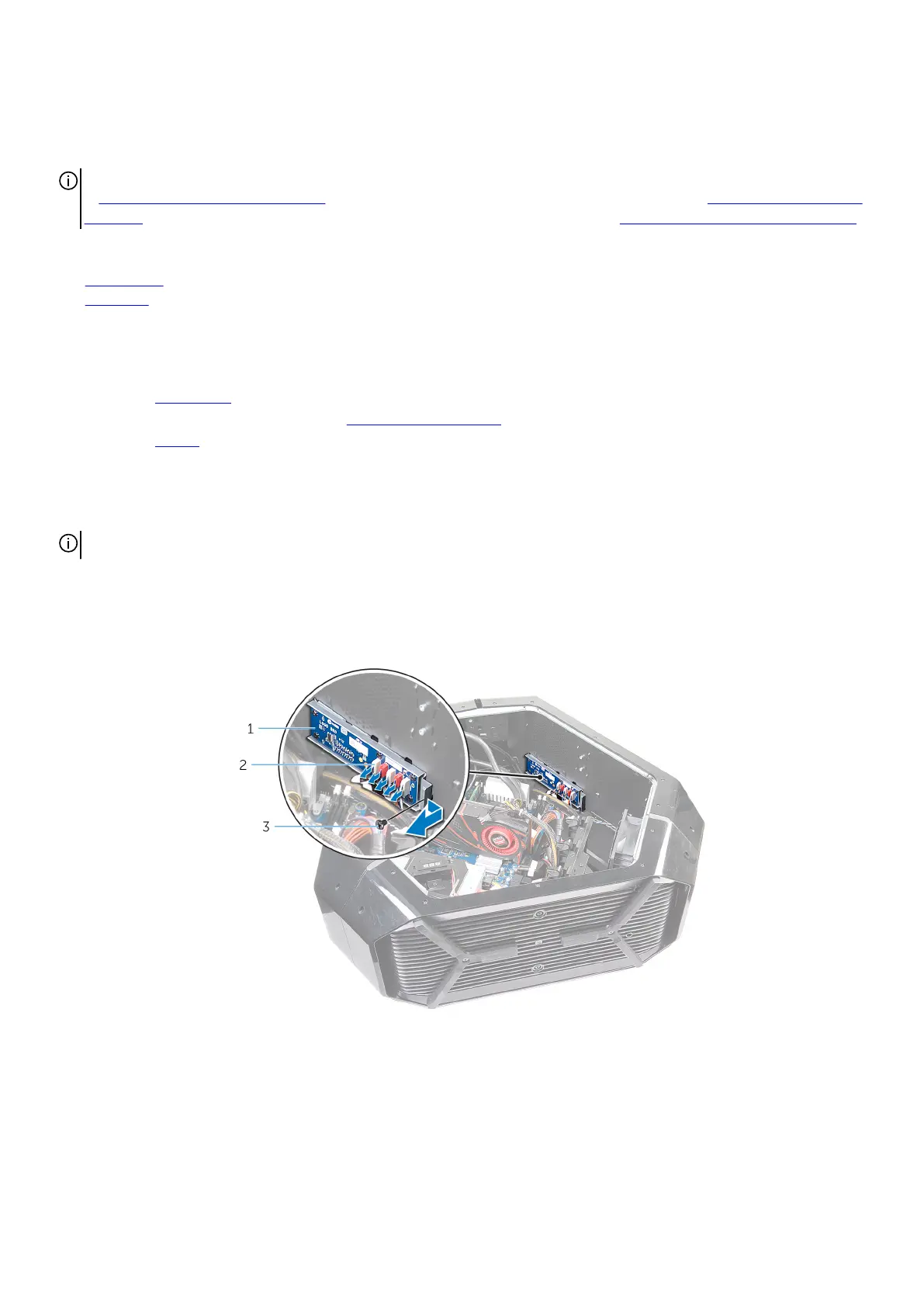

1. Lay the chassis on the right side.
2. Disconnect all the cables from the logo board.
3. Remove the screw (#6-32x6) that secures the logo board to the chassis.
4. Slide the logo board out of the chassis.
a. logo board
b. connector
c. screw
5. Remove the six screws (#6-32x6) that secure the logo board to the bracket.
6. Remove the logo board from the bracket.
65
