Removing the front-bezel heat sensor cable
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps
in Before working inside your computer. After working inside your computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/regulatory_compliance.
Topics:
• Prerequisites
• Procedure
Prerequisites
1. Remove the stability foot.
2. Remove the left and right side-panels. See “
Removing the side panels”.
3. Remove the PCI fan.
Procedure
NOTE: After removing the PCI fan, locate the sensor on the fan shroud.
1. Lay the chassis on the right side.
2. Push the release tab and pry the front-bezel heat-sensor cable off the chassis.

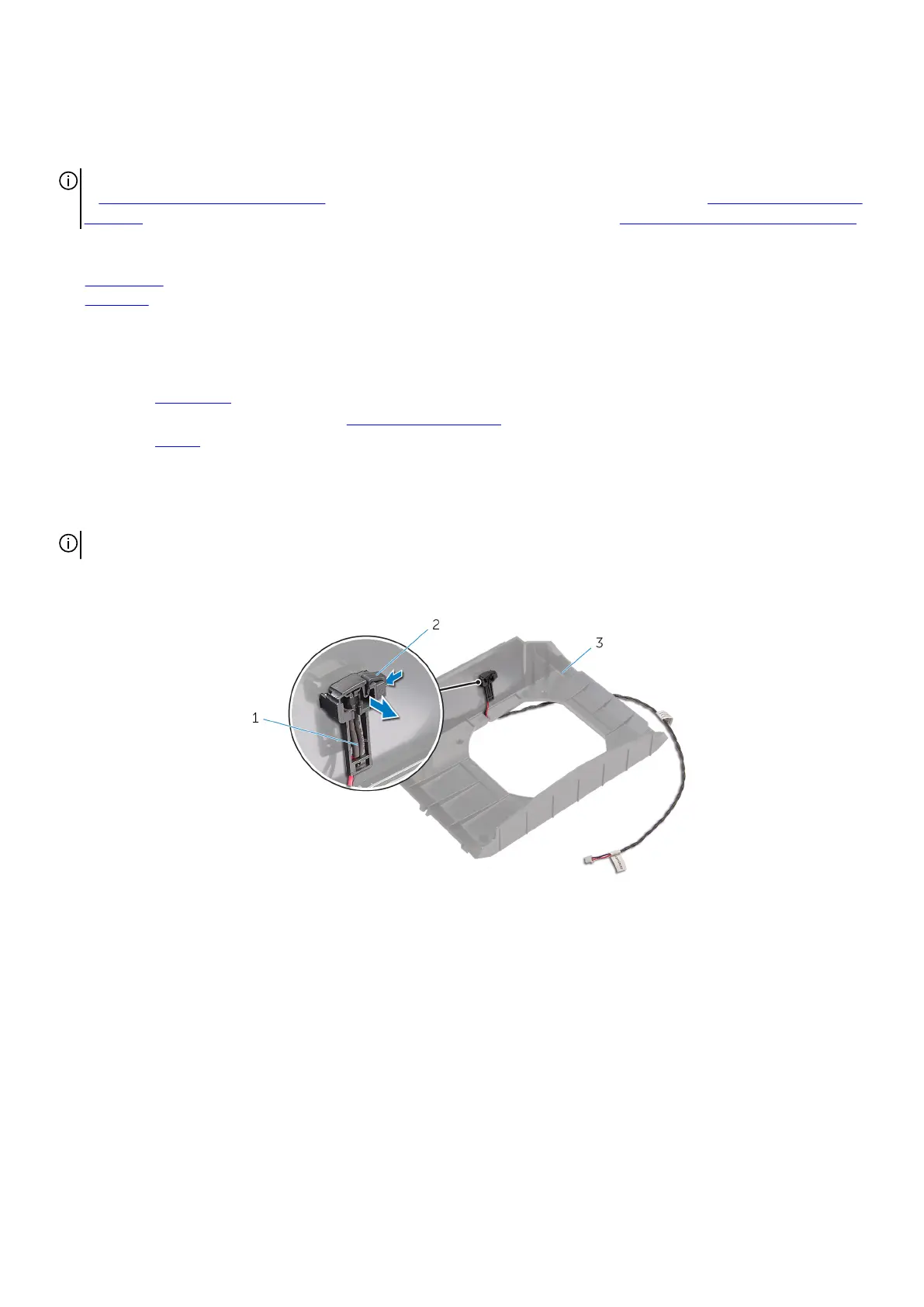

a. front-bezel heat-sensor cable
b. release tab
c. fan shroud
