Dell Alienware Area-51 R3 Threadripper Edition User Manual

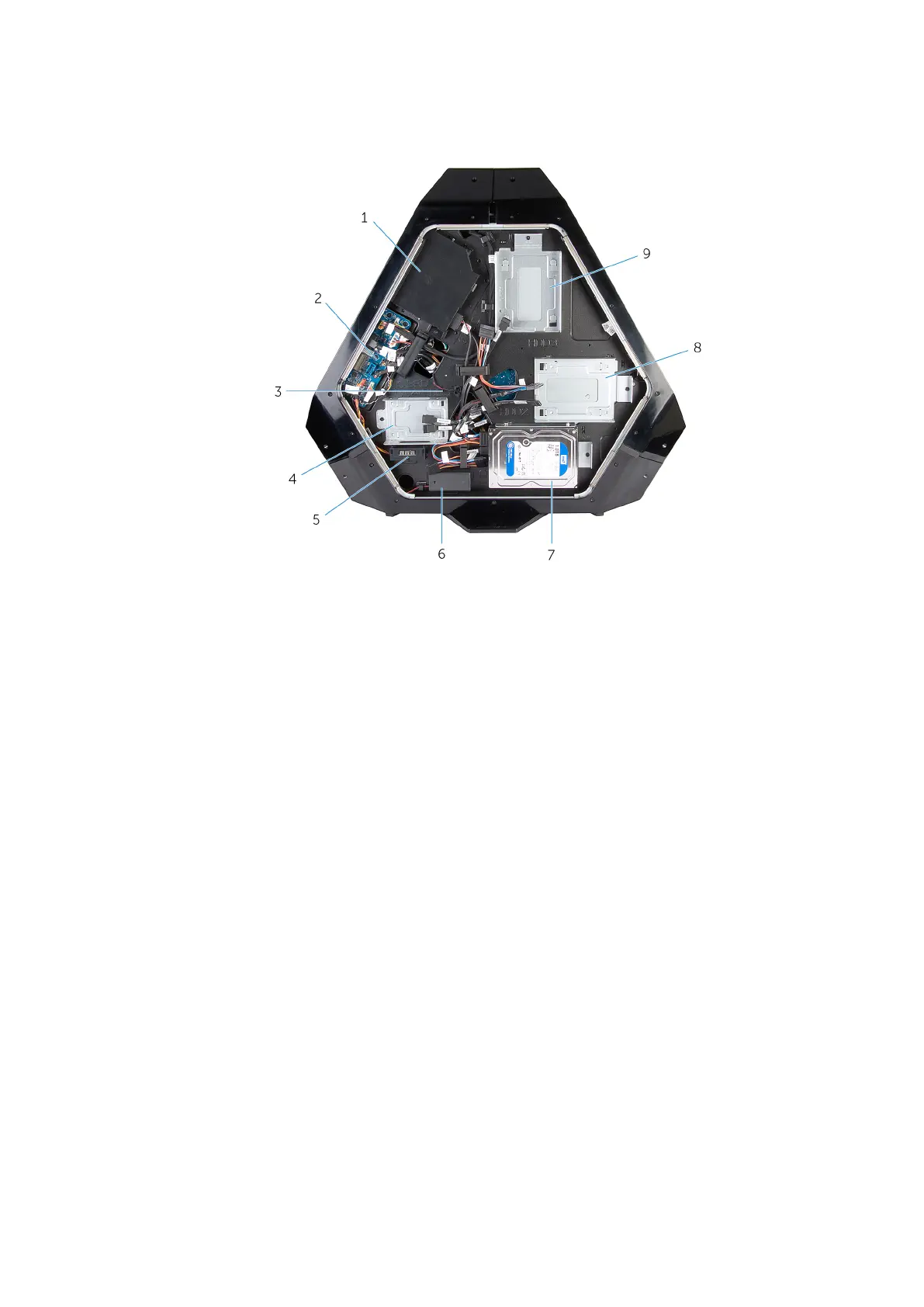

Right view
1. optical drive (ODD) 2. I/O board (IO BRD)
3. drive-bay heat-sensor 4. 2.5-inch drive bracket (HDD4/HDD5)
5. AlienFX side-panel connector 6. rear I/O accessibility lighting batteries
7. 3.5-inch drive bracket (HDD1) 8. 3.5-inch drive bracket (HDD2)
9. 3.5-inch drive bracket (HDD3)
System-board components
1.
processor-power connector (CPU PWR1) 2. processor liquid-cooling assembly pump-fan connector
(PUMP_FAN1)
3. processor liquid cooling-assembly fan (LCM_FAN1) 4. audio connector (FP_AUDIO1)
5. PCI-Express slot (SLOT1) 6. CMOS reset jumper (CMOS_CLR)
7. coin-cell battery socket (BAT1) 8. PCI-Express slot (SLOT3)
9. PCI-Express slot (SLOT4) 10. WLAN connector (M2_WLAN1)
11. PCI-Express slot (SLOT5) 12. PCI-Express slot (SLOT6)
13. solid-state drive slot (M2_SSD1) 14. PCI-Express slot (SLOT7)
15. low pin count debug header (LPC1) 16. LED Power Switch (PANEL1)
17. USB connector (USB1) 18. chassis heat-sensor connector (SENSOR2)
19. drive-bay heat-sensor connector (SENSOR1) 20.PCI-Express power connector (PCIE_PWR1)
16
