Removing the bottom tron-lighting cable
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps
in Before working inside your computer. After working inside your computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/regulatory_compliance.
Topics:
• Prerequisites
• Procedure
Prerequisites
1. Remove the stability foot.
2. Remove the left and right side-panels. See “
Removing the side panels”.
3. Remove the full-length graphics cards.
4. Remove the PCI fan.
5. Remove the handle bars.
6. Remove the front bezel.
7. Remove the rear bezel.
8. Remove the
base panel.
Procedure
1. Disconnect the bottom tron-lighting cables from the logo board.
2. Open the securing clip which secures the bottom tron-lighting cables to the chassis.
3. Remove the bottom tron-lighting cables from the routing guide on the chassis.

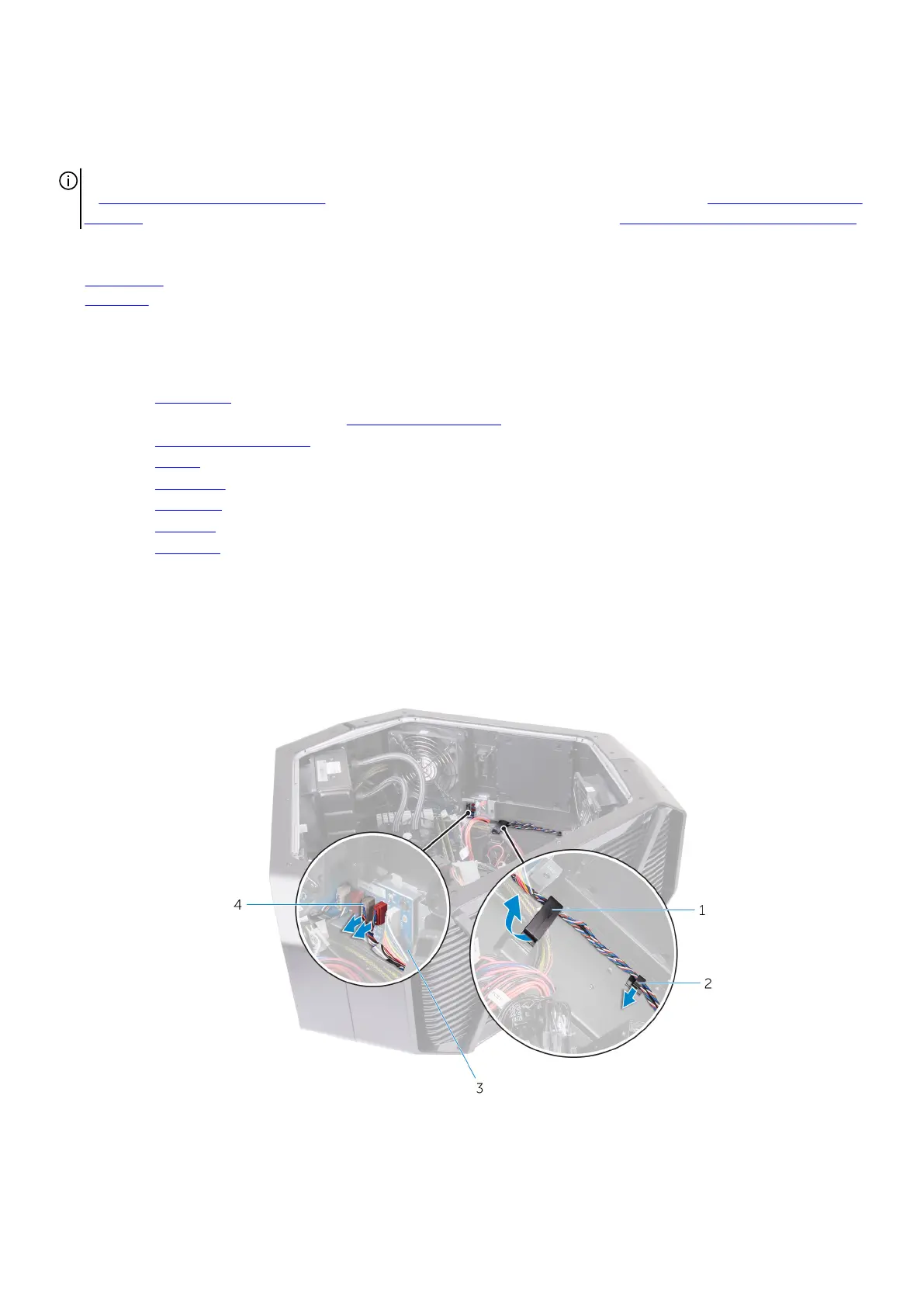

1.
securing clip 2. routing guide
3. logo board 4. tron-lighting cables
