Removing the optical-drive eject-button board
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps
in Before working inside your computer. After working inside your computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/regulatory_compliance.
Topics:
• Prerequisites
• Procedure
Prerequisites
1. Remove the stability foot.
2. Remove the left and right side-panels. See “
Removing the side panels”.
3. Remove the handle bars.
4. Remove the front bezel.
Procedure

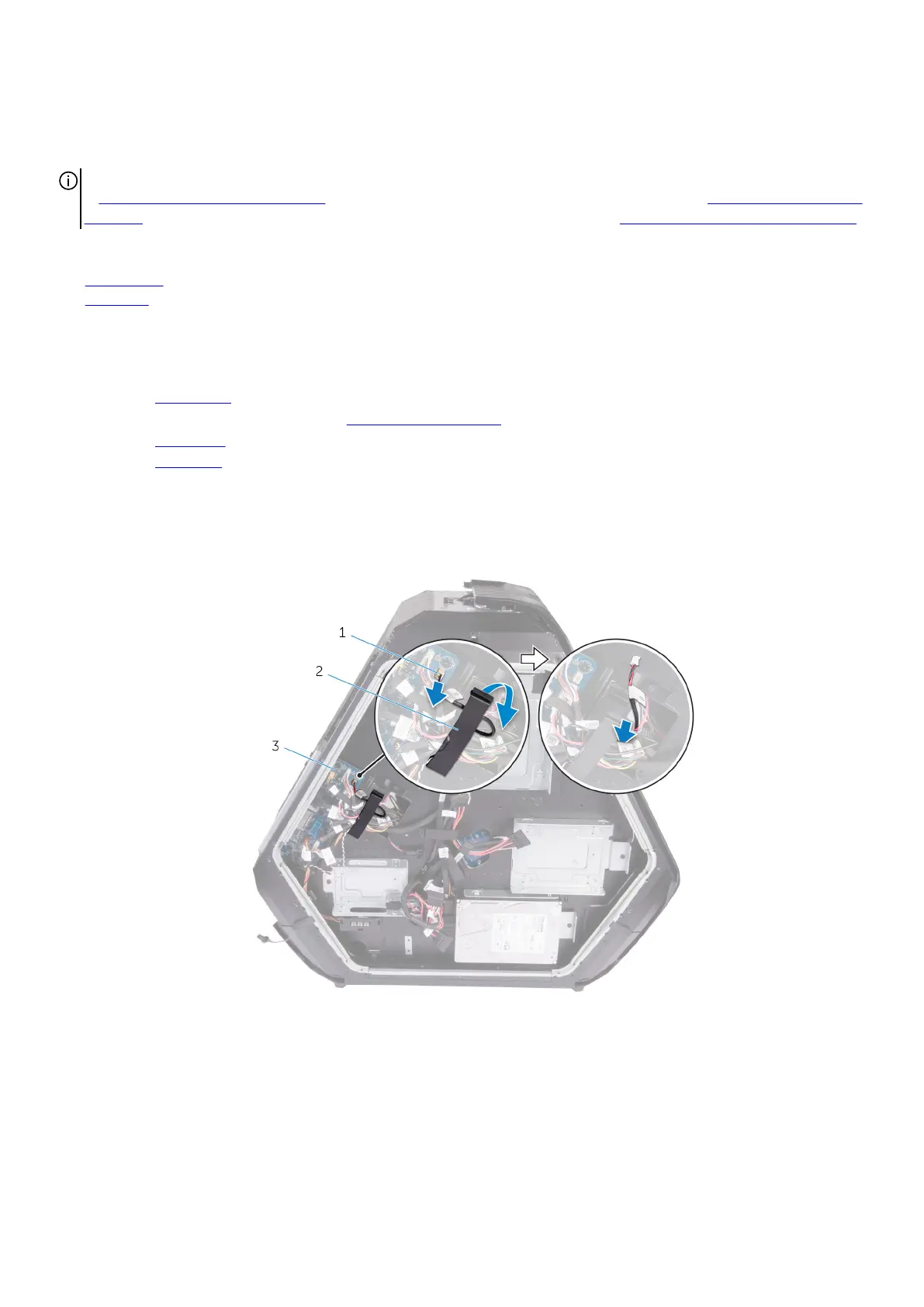

1. Disconnect the optical-drive eject-button board cable from the I/O board.
a. optical-drive eject-button board cable
b. securing clip
c. I/O board
2. Open the securing clips which secure the optical-drive eject-button board cable to the chassis.
99
