Removing the hard drive
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps
in Before working inside your computer. After working inside your computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/regulatory_compliance.
CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.
CAUTION: To avoid data loss, do not remove the hard drive while the computer is in sleep or on state.
Topics:
• Prerequisites
• Procedure
Prerequisites
1. Remove the stability foot.
2. Remove the left and right side-panels. See “Removing the side panels”.
Procedure
1. Lay the chassis on the left side.
2. Disconnect the power cable and data cable from the hard-drive assembly (HDD1).
3. Remove the screw (#6-32x6) that secures the hard-drive assembly (HDD1) to the chassis.
4. Using the tab, slide and remove the hard-drive assembly (HDD1) from the chassis.

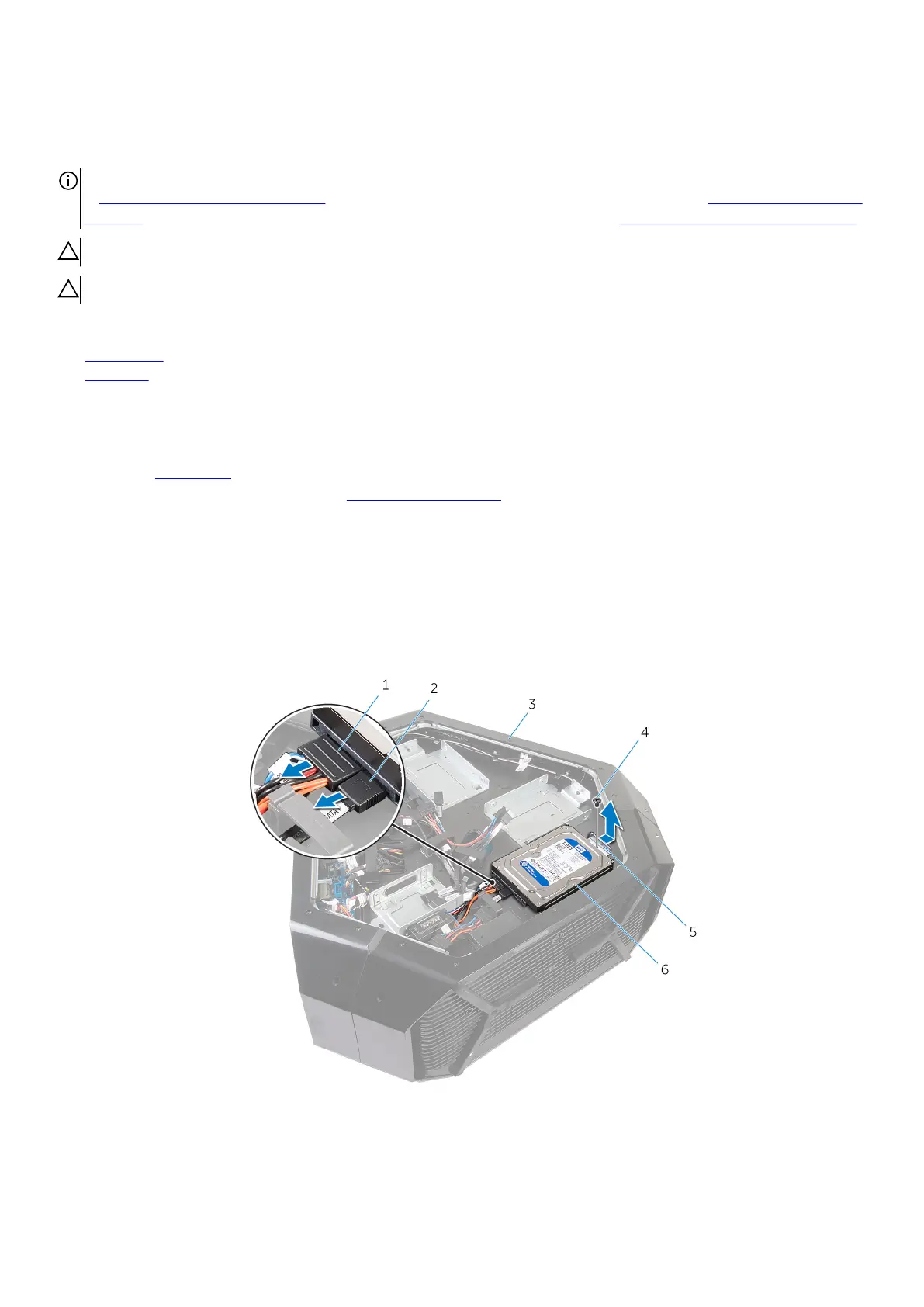

1.
power cable 2. data cable
3. chassis 4. screw
