21. PCI-Express fan 1 connector (PCI_FAN1) 22.password reset jumper (PW_CLR)
23. SATA drive connector (HDD _SATA_3_4) 24.SATA drive connector (HDD_SATA_1_2)
25.USB connector (USB3_MB2) 26.USB connector (USB3_MB1)
27. SATA drive connector (SATA6) 28.SATA drive connector (SATA5)
29.Advanced Technology xTended (ATX) power connector (ATX
PWR1)
30.processor liquid-cooling assembly fan connector (MID_FAN1)
31. top fan connector (TOP_FAN1) 32. memory-module slot (DIMM2)
33. memory-module slot (DIMM1) 34.processor socket (CPU1)
35.memory-module slot (DIMM3) 36.memory-module slot (DIMM4)

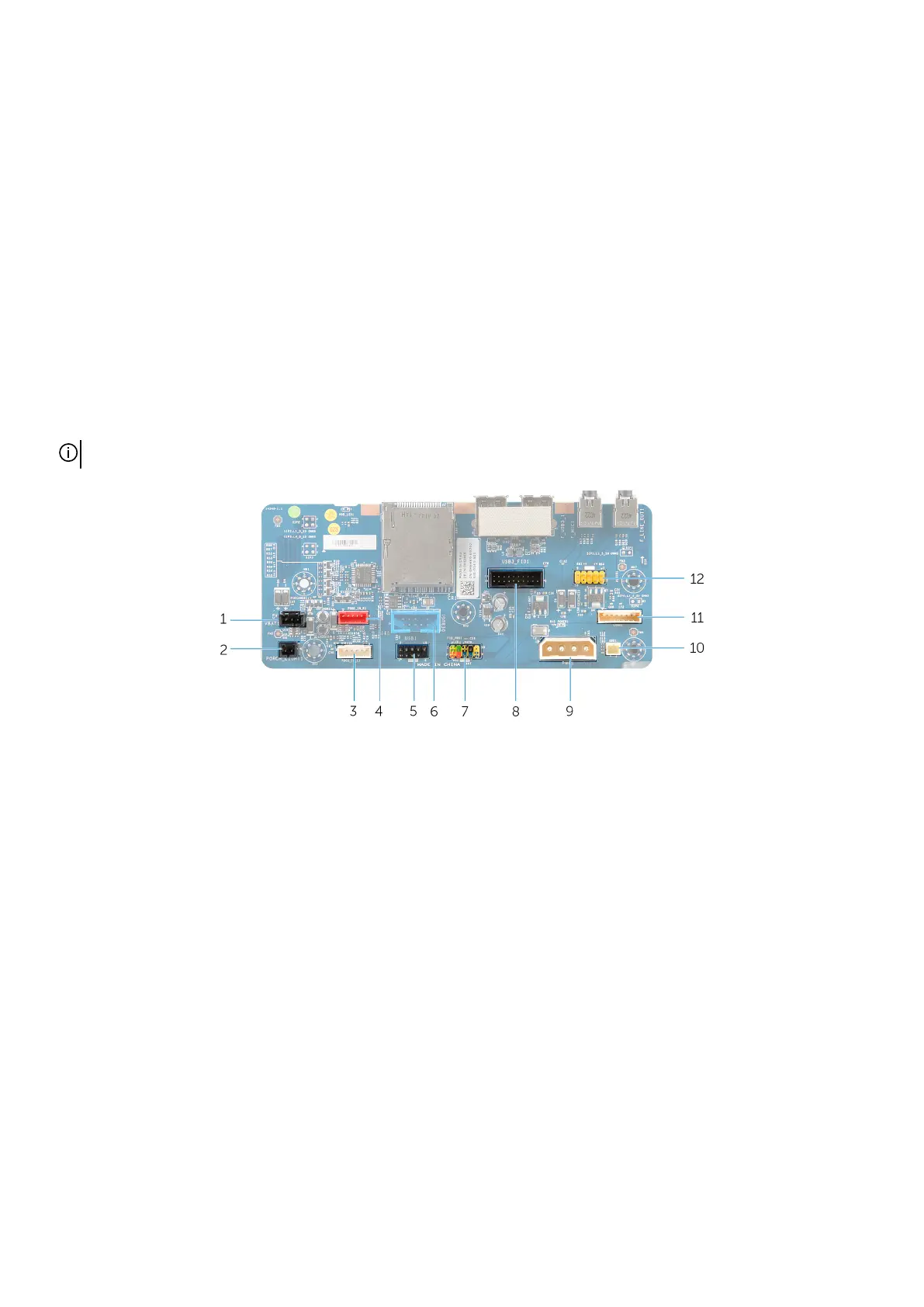

I/O-board components
NOTE: The location of the connectors may vary based on the selections you made at the time of purchase.
1. rear I/O accessibility lighting battery connector (VBAT1) 2. rear I/O accessibility lighting connector (PORCH_LIGHT1)
3. left theater-lighting connector (POGO_IN_L1) 4. right theater-lighting connector (POGO_IN_R1)
5. USB connector (USB1) 6. debug connector (DEBUG1)
7. front I/O control connector (FIO_PWR1) 8. front I/O connector (USB3_FIO1)
9. main-power connector (PWR1) 10. optical drive power connector (ODD1)
11. logo board connector (LOGO1) 12. audio connector (AUDIOIO1)
17
