Removing the top tron-lighting cable
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps
in Before working inside your computer. After working inside your computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/regulatory_compliance.
Topics:
• Prerequisites
• Procedure
Prerequisites
1. Remove the stability foot.
2. Remove the left and right side-panels. See “
Removing the side panels”.
3. Remove the handle bars.
4. Remove the front bezel.
5. Remove the rear bezel.
6. Remove the base panel.
Procedure

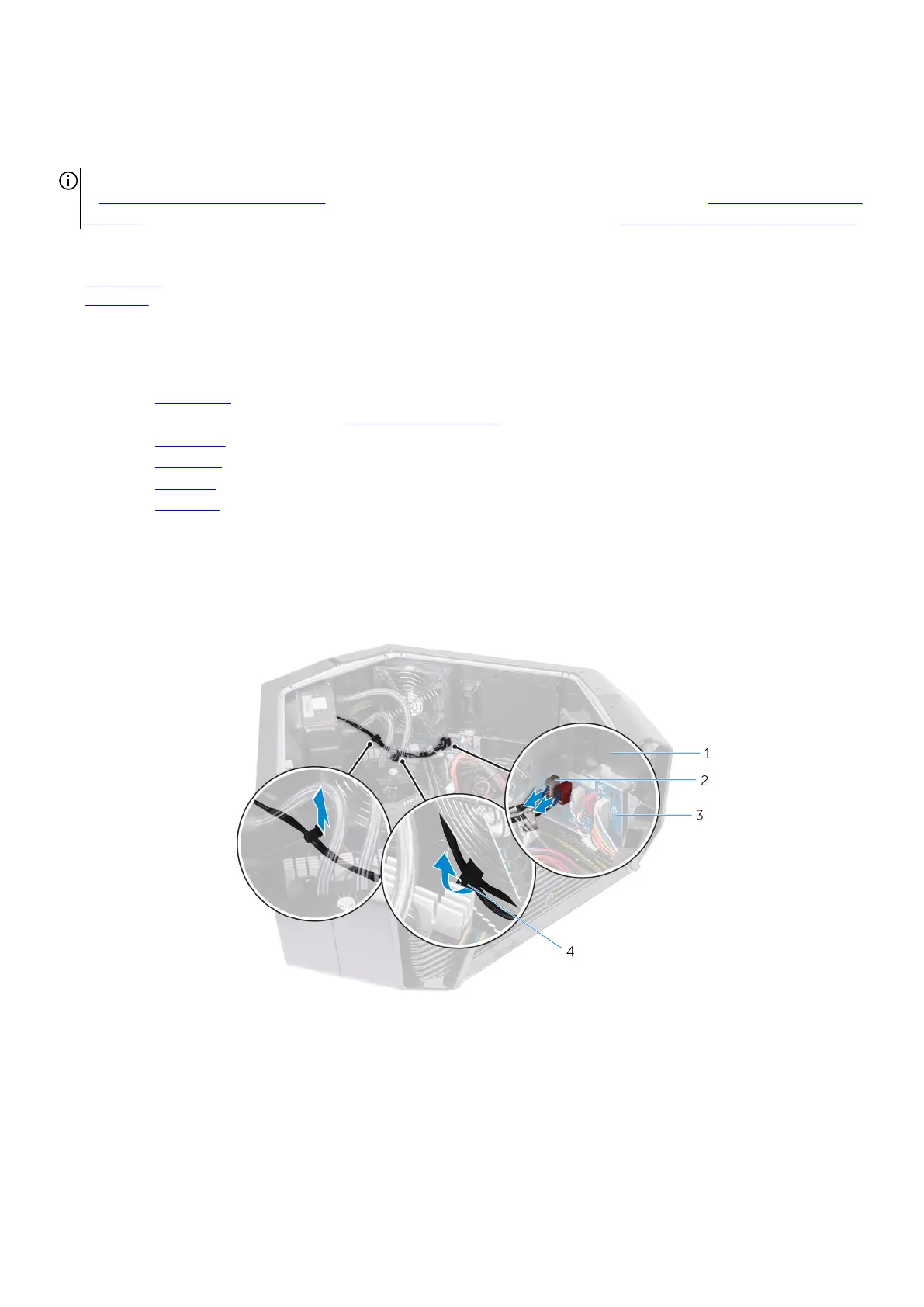

1. Disconnect the top tron-lighting cables from the logo board.
2. Remove the top tron-lighting cables from the routing-guides on the chassis.
1.
chassis 2. tron-lighting cables
3. logo board 4. routing guides
3. Peel the tape that secures the top tron-lighting cables to the chassis and lift the top tron-lighting cables.
111
