Dell Alienware Area-51 R3 Threadripper Edition User Manual

5. routing guides (2) 6. chassis

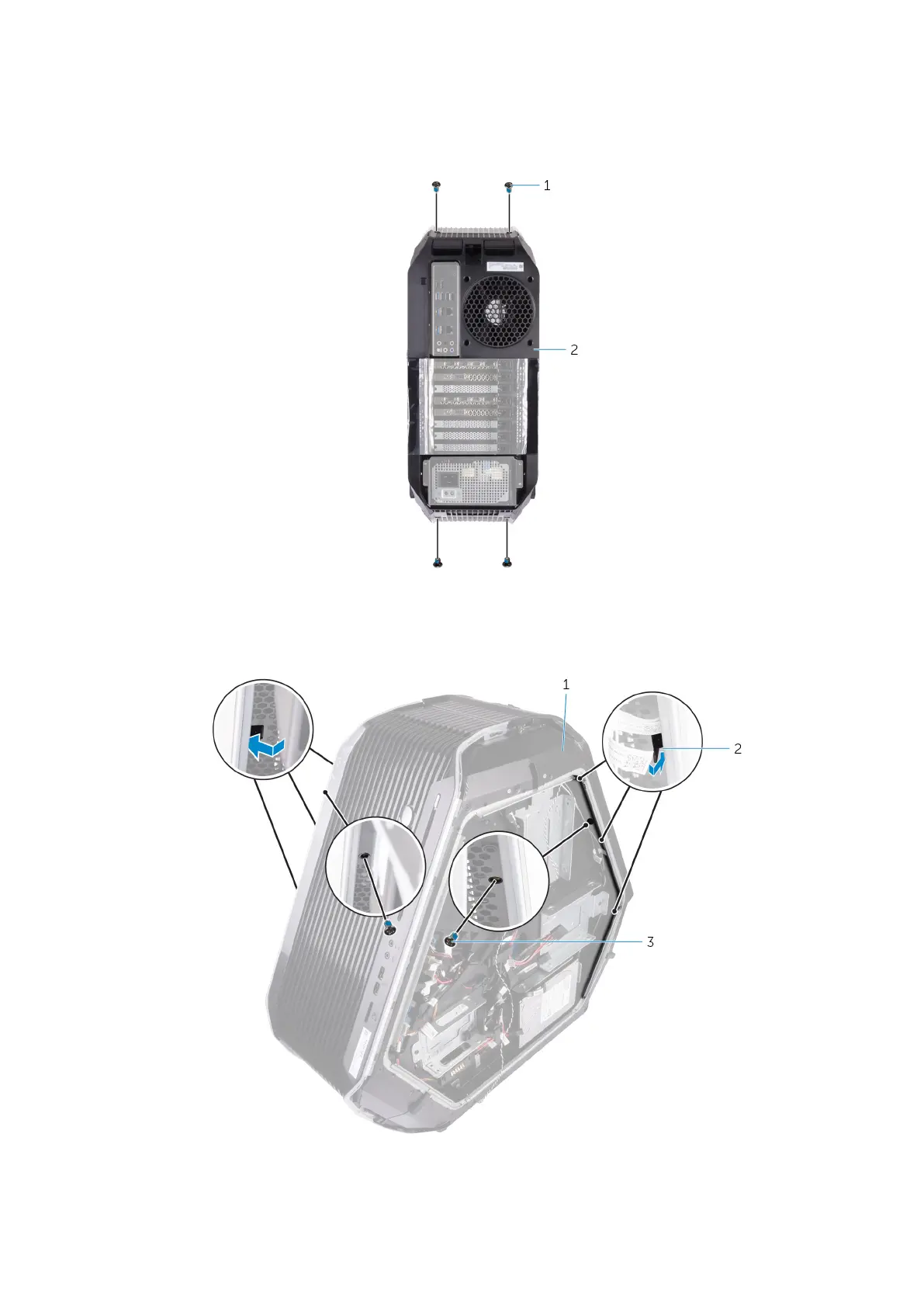

7. Remove the four screws (#6-32x6) that secure the rear bezel to the top and bottom of the chassis.
a. screws (4)
b. rear bezel
8. Remove the two screws (M3x5) from inside, that secure the rear bezel to the left side and right side of the chassis.
9. Release the tabs from inside the chassis on the right side and left side, securing the rear bezel to the chassis.
a. chassis
b. tabs (6)
104

Dell Alienware Area-51 R3 Threadripper Edition Specifications

General

Brand	Dell
Model	Alienware Area-51 R3 Threadripper Edition
Category	Desktop
Language	English
