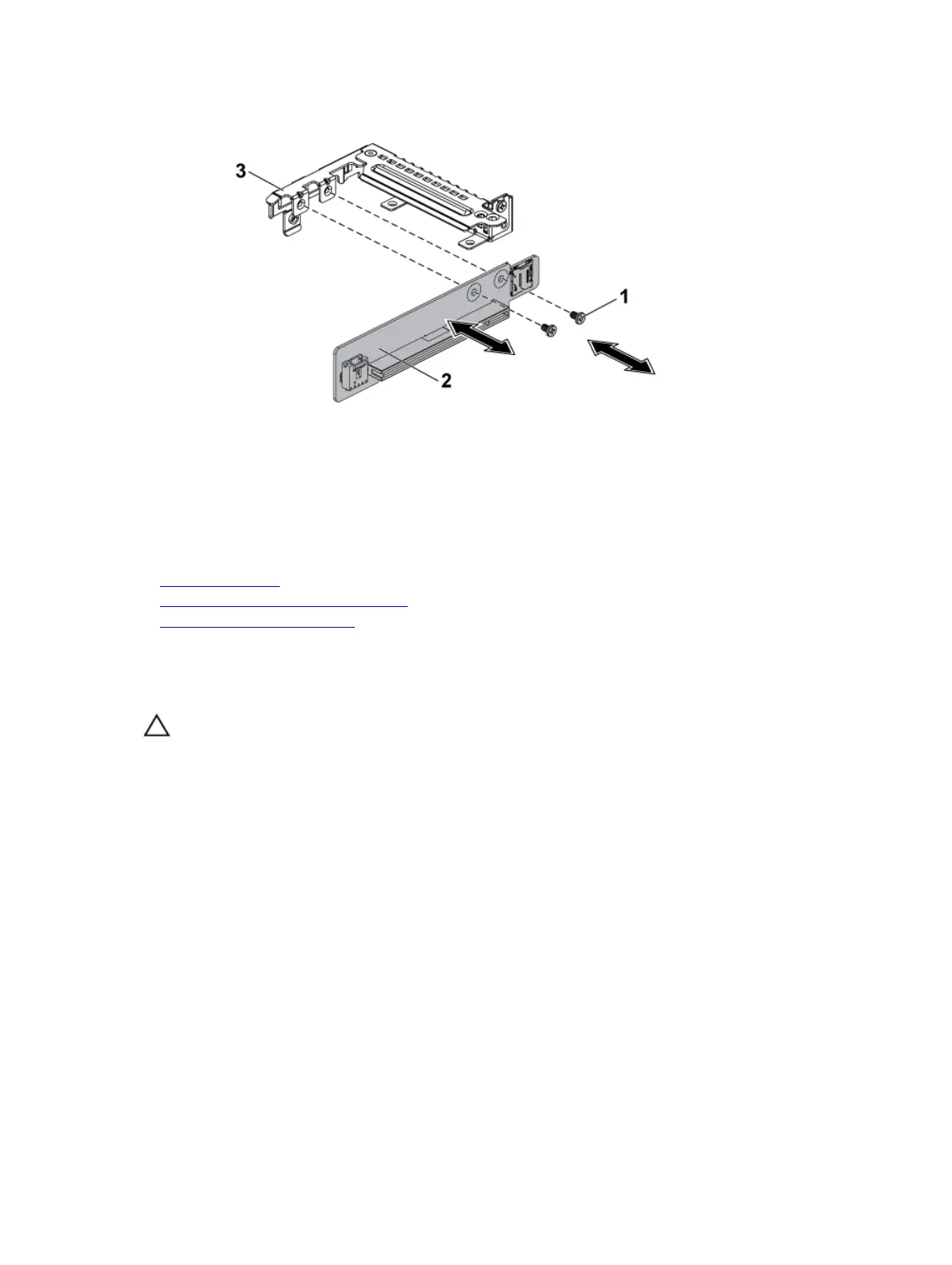

Figure 46. Removing and installing the riser card
1. screw (2) 2. riser card
3. expansion card bracket
Related Links
Safety instructions
Removing the system board assembly
Removing the expansion card
Installing the riser card
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
Follow the safety guidelines listed in the Safety instructions section.
Steps
1. Place the riser card into the expansion card bracket.
2. Replace the screws that secure the riser card to the expansion card bracket.
Next steps
1. Install the expansion card.
2. Install the system board assembly.
3. Reconnect the peripherals and connect the system to the electrical outlet.
4. Turn on the system, including any attached peripherals.
