7. Lift the PDB 2 out of the system.

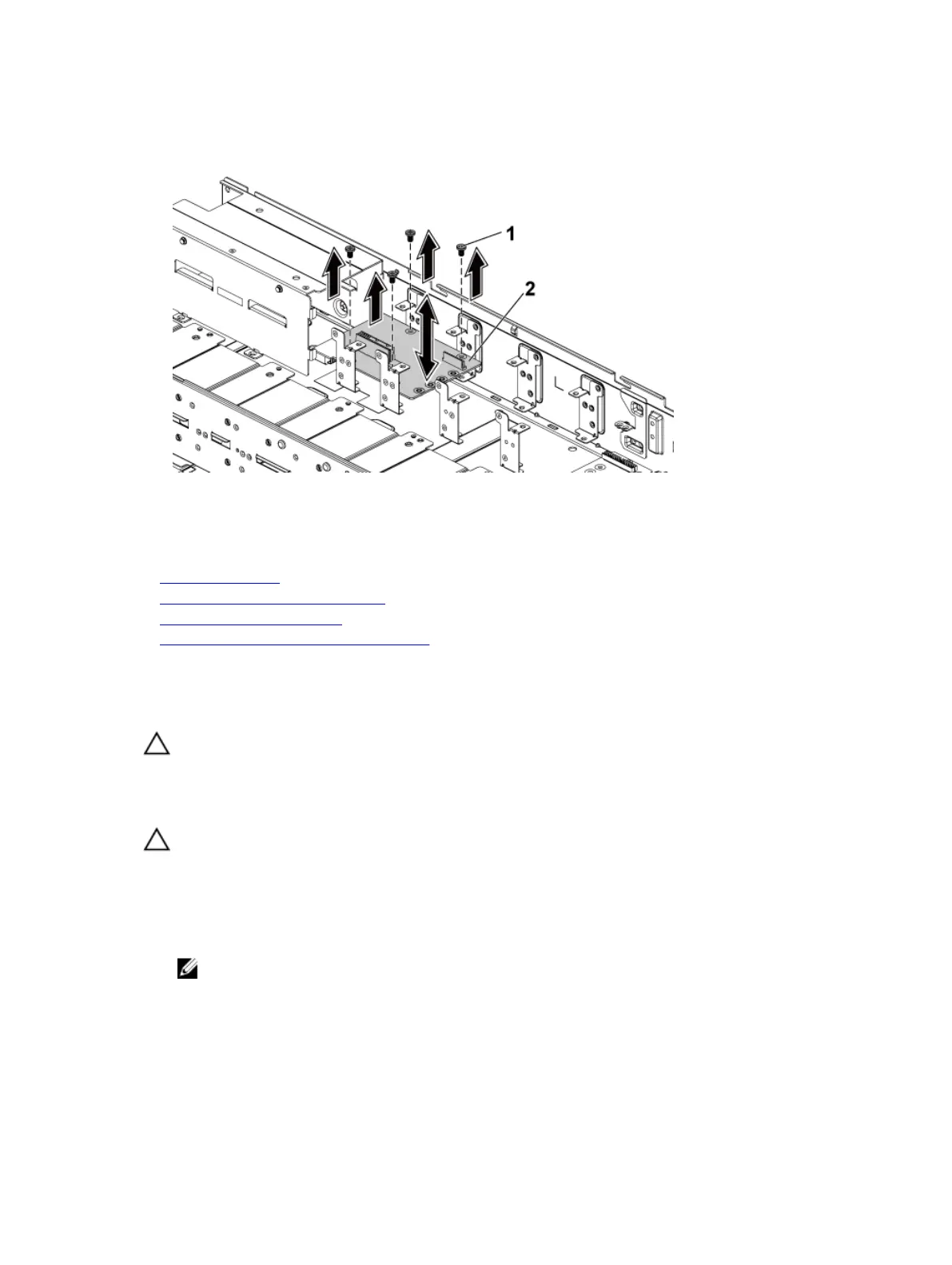

Figure 69. Removing and installing a PDB 2
1. screw (4) 2. PDB 2
Related Links
Safety instructions
Before working inside your system
Removing the system cover
Removing the power distribution board 2
Installing the power distribution board 2
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
CAUTION: If removed, you must replace the power distribution board 2 (PDB 2) and the power
distribution board-connector before replacing the power distribution board 1 (PDB 1).
Follow the safety guidelines listed in the Safety instructions section.
Steps
1. Align the screw holes on the PDB 2 with the holes on the chassis.
NOTE: To install the PDB 2, angle the board during installation.
2. Install the screws that secure the PDB 2 to the system.
3. Install the power distribution board connector.
4. Connect the power cables to the PDB 2 by using screws.
5. Connect all the other cables to the PDB 2.
