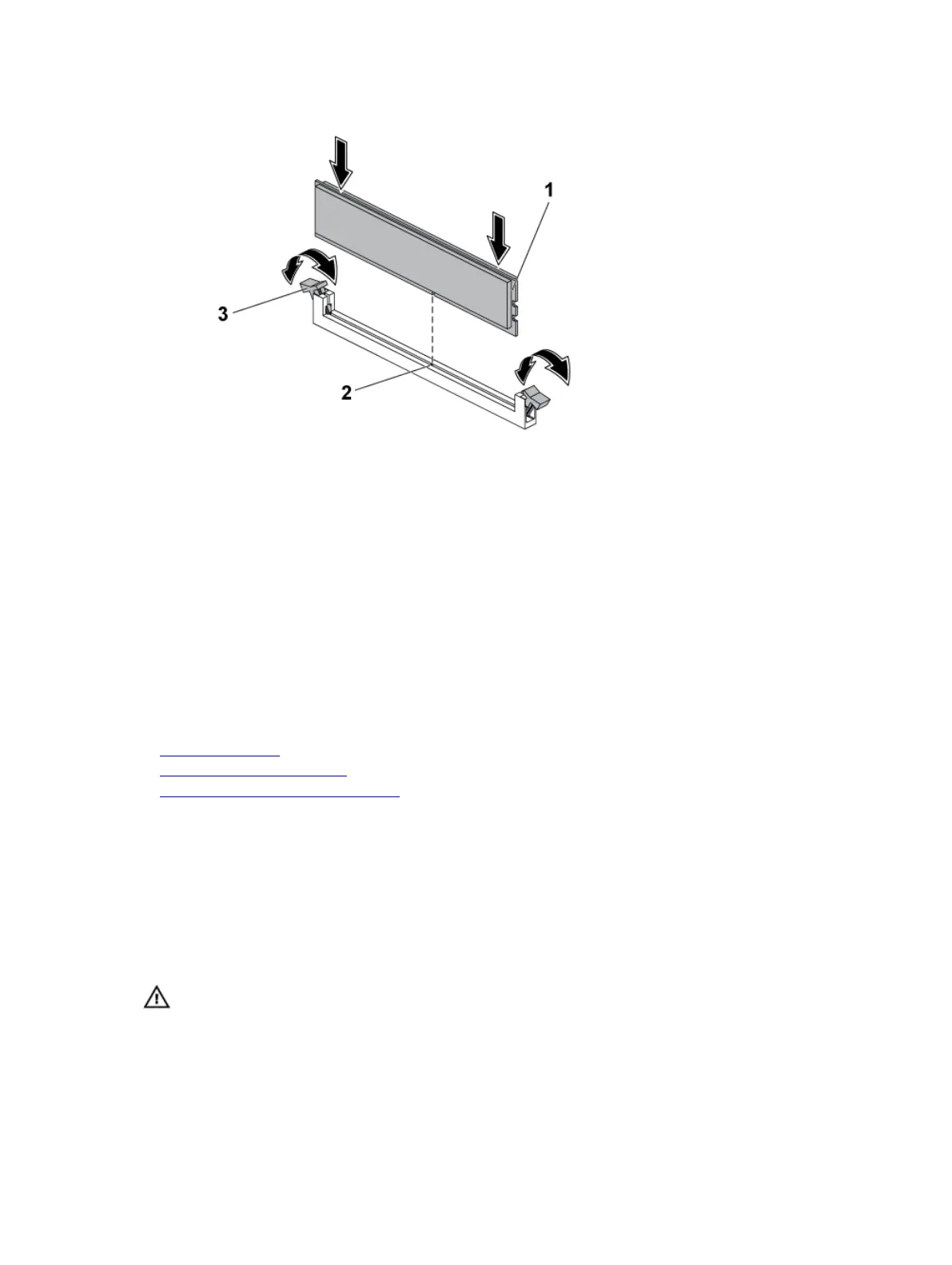

Figure 59. Installing a memory module
1. memory module 2. alignment key
3. memory module socket ejector (2)
Next steps
1. Install the cooling shroud.
2. Install the system board assembly.
3. Press F2 to enter System Setup, and check the System Memory setting.
4. If the value is incorrect, one or more of the memory modules may not be installed properly. Ensure
that the memory modules are firmly seated in the sockets.
5. Run the system memory test in the system diagnostics.
Related Links
Safety instructions
Installing the cooling shroud
Installing the system board assembly
System battery
The system battery is used for low-level system functions like powering the real-time clock and storing
the computer’s BIOS settings.
Replacing the system battery
Prerequisites
WARNING: There is a danger of a new battery exploding if it is incorrectly installed. Replace the
battery only with the same or equivalent type recommended by the manufacturer. See your
safety information for additional information.
