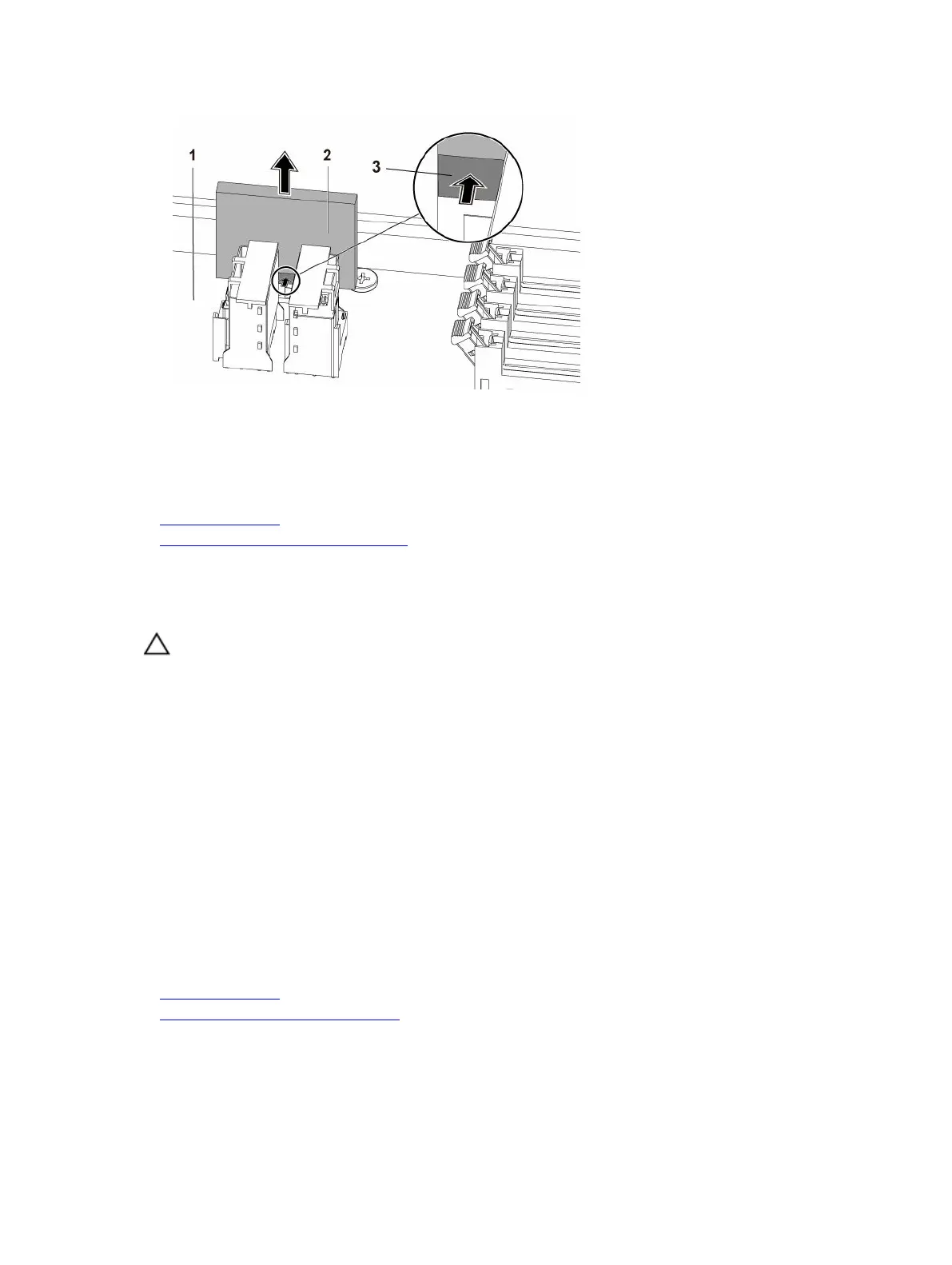

Figure 34. Removing the SATADOM
1. system board assembly 2. SATADOM
3. metal latch
Related Links
Safety instructions
Removing the system board assembly
Installing the SATADOM
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
Follow the safety guidelines listed in the Safety instructions section.
Steps
1. Holding the SATADOM by its edges, position it so that the card edge connector aligns with the
onboard SATA connector 5 on the system board.
2. Press the SATADOM with your thumbs until it is fully seated.
3. Reconnect all the cables.
Next steps
1. Reconnect the peripherals and connect the system to the electrical outlet.
2. Turn on the system, including any attached peripherals.
Related Links
Safety instructions
Installing the system board assembly
