Cable routing for LSI 2008 SAS mezzanine card
1. Connect the mini-SAS/SGPIO cable to the LSI 2008 SAS Mezzanine card, and connect the other end
of the cable to the corresponding connectors on the system board.
2. Connect the mini-SAS cable to the LSI 2008 SAS Mezzanine card, and connect the other end of the
cable to the corresponding connector on the system board.
NOTE: The SGPIO cable must be connected before the LSI 2008 SAS Mezzanine card is
installed.

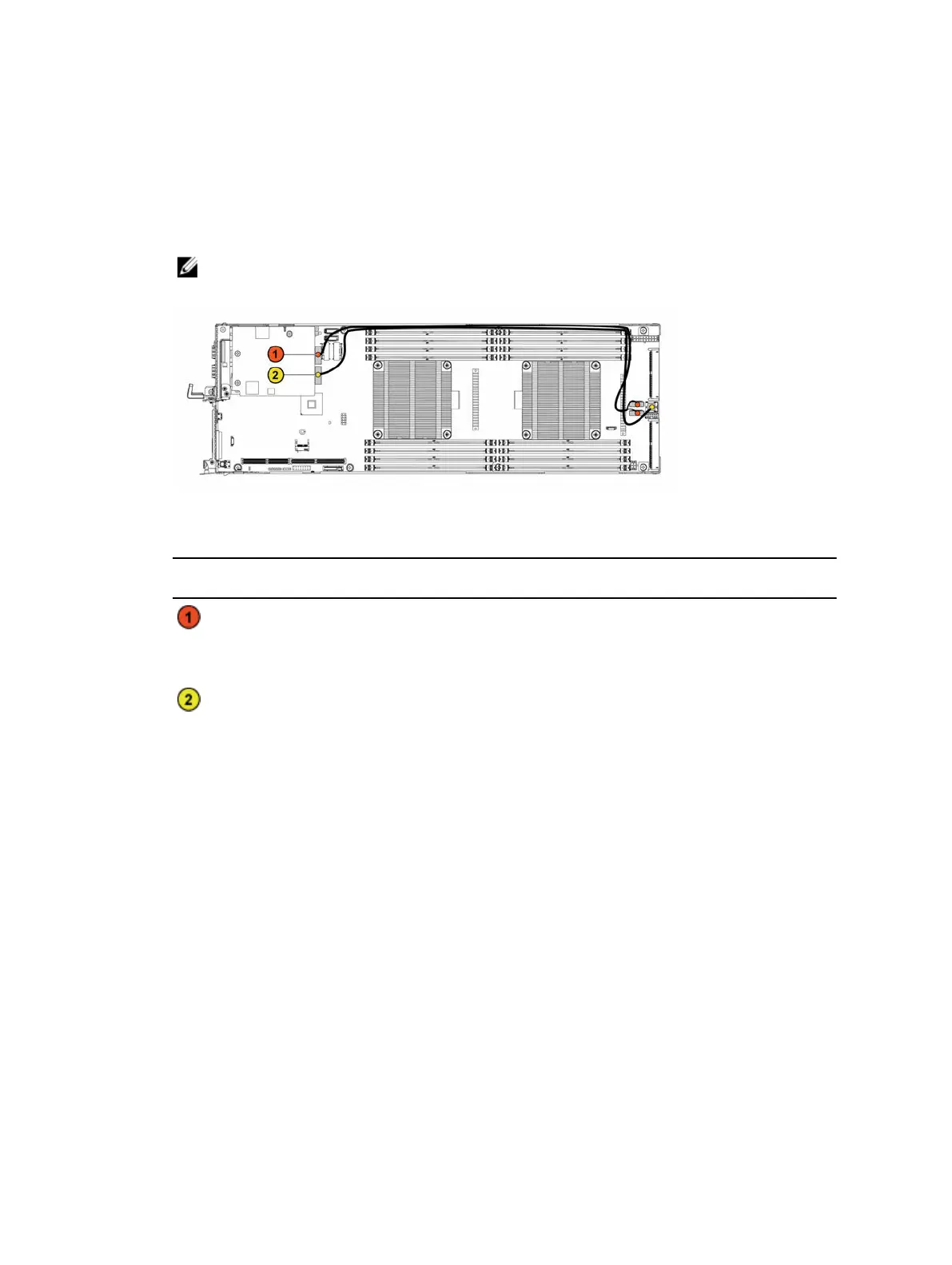

Figure 48. Cable routing for LSI 2008 SAS mezzanine card
Table 28. Cable routing for LSI 2008 SAS mezzanine card
Item Cable From (LSI 2008 SAS
mezzanine card)
To (system board)
Mini-SAS/SGPIO cable Mini-SAS connector
4-7 (J4)
SAS/SATA input
connector 4 and SAS/
SATA input connector 5
Mini-SAS cable Mini-SAS connector
0-3 (J3)
Mini SAS HD connector
0-3
3. Press down on the cables, and ensure the cables are routed lower than the height of the CPU heat
sinks.
