Jumper settings
System configuration jumper settings on the C6320 system board
The function of system configuration jumper installed on each C6320 system board is shown below:

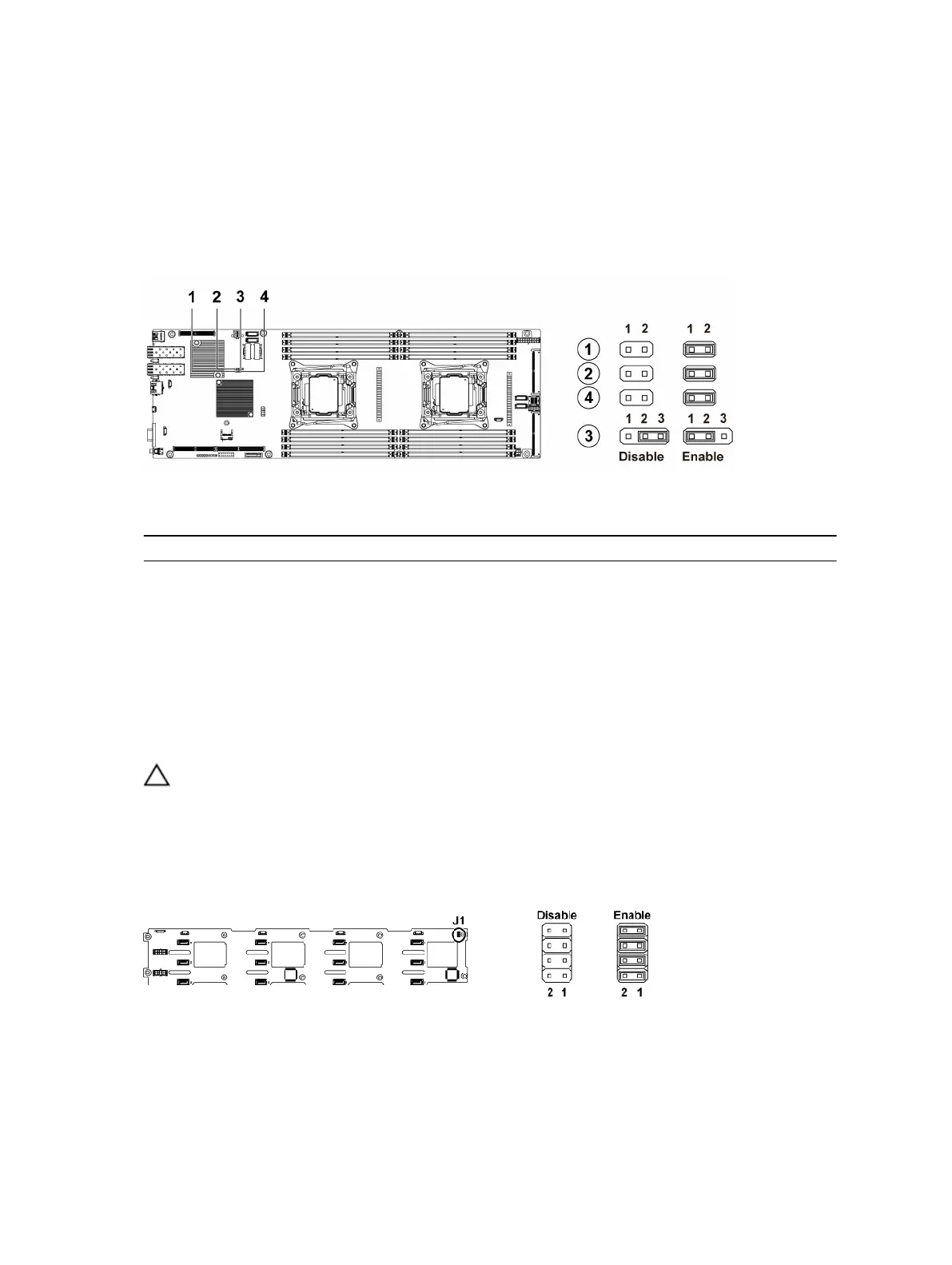

Figure 115. System configuration jumpers on the C6320 system board
Table 44. System configuration jumper on the C6320 system board
Jumpers Function Disabled (Default state) Enabled
1
BIOS Recovery
No pin Pin 1-2
2
NVRAM Clear
No pin Pin 1-2
3
PWRD_EN
Pin 1-2 Pin 2-3
4
ME_FM Recovery
No pin Pin 1-2
Backplane jumper settings
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
The function of jumpers installed on 3.5-inch hard drive backplane and 2.5-inch hard drive backplane is
the same. Following is an example using the jumpers installed on 3.5-inch HDD backplane.
Figure 116. Backplane jumper settings
168
