SSD and SSD holder
A solid-state drive (SSD, also known as a solid-state disk although it contains neither an actual disk nor a
drive motor to spin a disk) is a solid-state storage device that uses integrated circuit assemblies as
memory to store data persistently. SSDs have no moving (mechanical) components. SSDs are typically
more resistant to physical shock, run silently, have lower access time, and less latency.
Removing the SSD and SSD Holder
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
1. Follow the safety guidelines listed in the Safety instructions section.
2. Turn off the system, including any attached peripherals.
3. Disconnect the system from the electrical outlet and disconnect the peripherals.
4. Remove the system board assembly.
Steps
1. Disconnect the MicroSATA cables from the system board.
2. Slide the SSD with the MicroSATA cable out of the SSD holder.

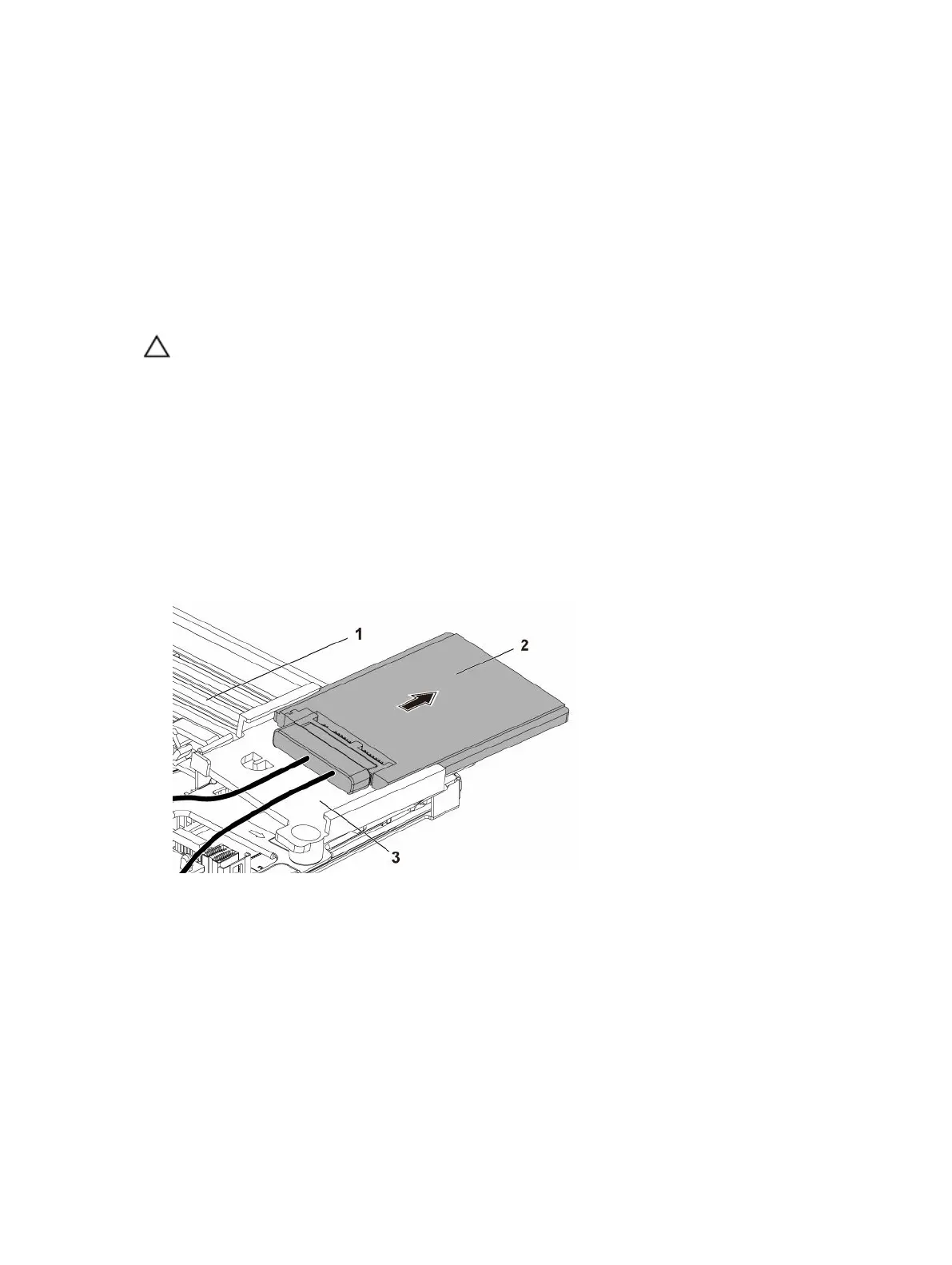

Figure 28. Removing the SSD with MicroSATA cable
1. system-board assembly 2. SSD with MicroSATA cable
3. SSD holder
3. Disconnect the MicroSATA cable from the SSD.
