NOTE: You can enter the Service Tag only when the Service Tag field is empty. Ensure that you
enter the correct Service Tag. After the Service Tag is entered, it cannot be updated or changed.
5. Click Ok.
Restoring the Service Tag by using the Easy Restore feature
The Easy Restore feature enables you to restore your system’s Service Tag, license, UEFI configuration,
and the system configuration data after replacing the system board. All data is automatically backed up in
a backup flash device. If BIOS detects a new system board and the Service Tag in the backup flash device,
BIOS prompts the user to restore the backup information.
1. Turn on the system.
If BIOS detects a new system board, and if the Service Tag is present in the backup flash device, BIOS
displays the Service Tag, the status of the license, and the UEFI Diagnostics version.
2. Perform one of the following steps:
After the restore process is complete, BIOS prompts to restore the system configuration data.
3. Perform one of the following steps:
• Press Y to restore the system configuration data.
• Press N to use the default configuration settings.
After the restore process is complete, the system restarts.
Cable routing for onboard SATA cables (1U node)
1. Connect the onboard SATA cables to the system board, and connect the other end of the cable to
the corresponding connectors on the system board.

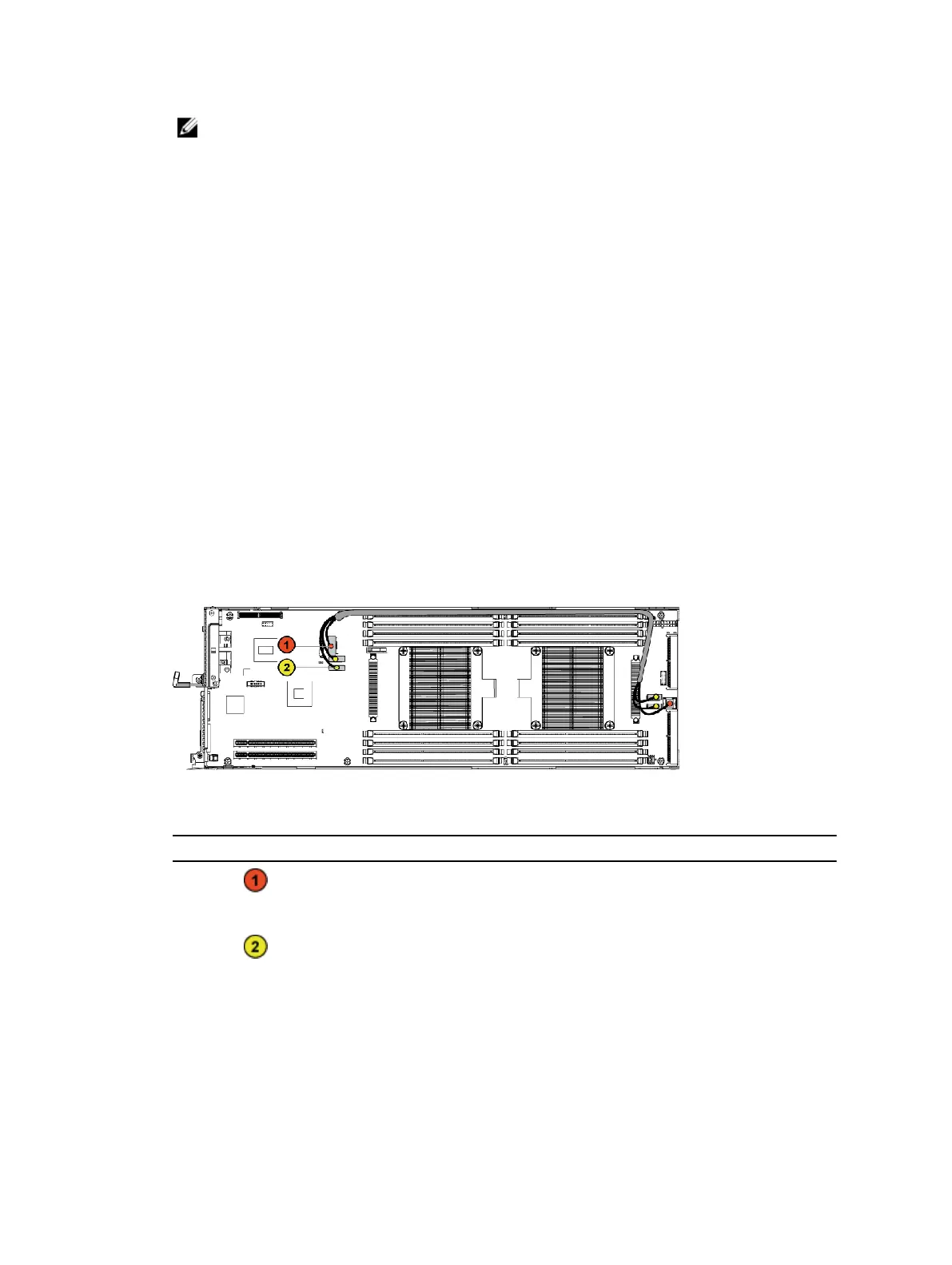

Figure 62. Cable routing for onboard SATA cables (1U node)
Table 32. Cable routing for onboard SATA cables (1U node)
Item Cable From (system board) To (system board)
Onboard SATA cable Onboard SATA output
connector 0
SAS/SATA input
connector 0
Onboard SATA cable Onboard SATA
connectors 4&5
SAS/SATA input
connectors 4&5
2. Press down on the cables, and ensure the cables are routed lower than the height of the processor
heat sinks.
