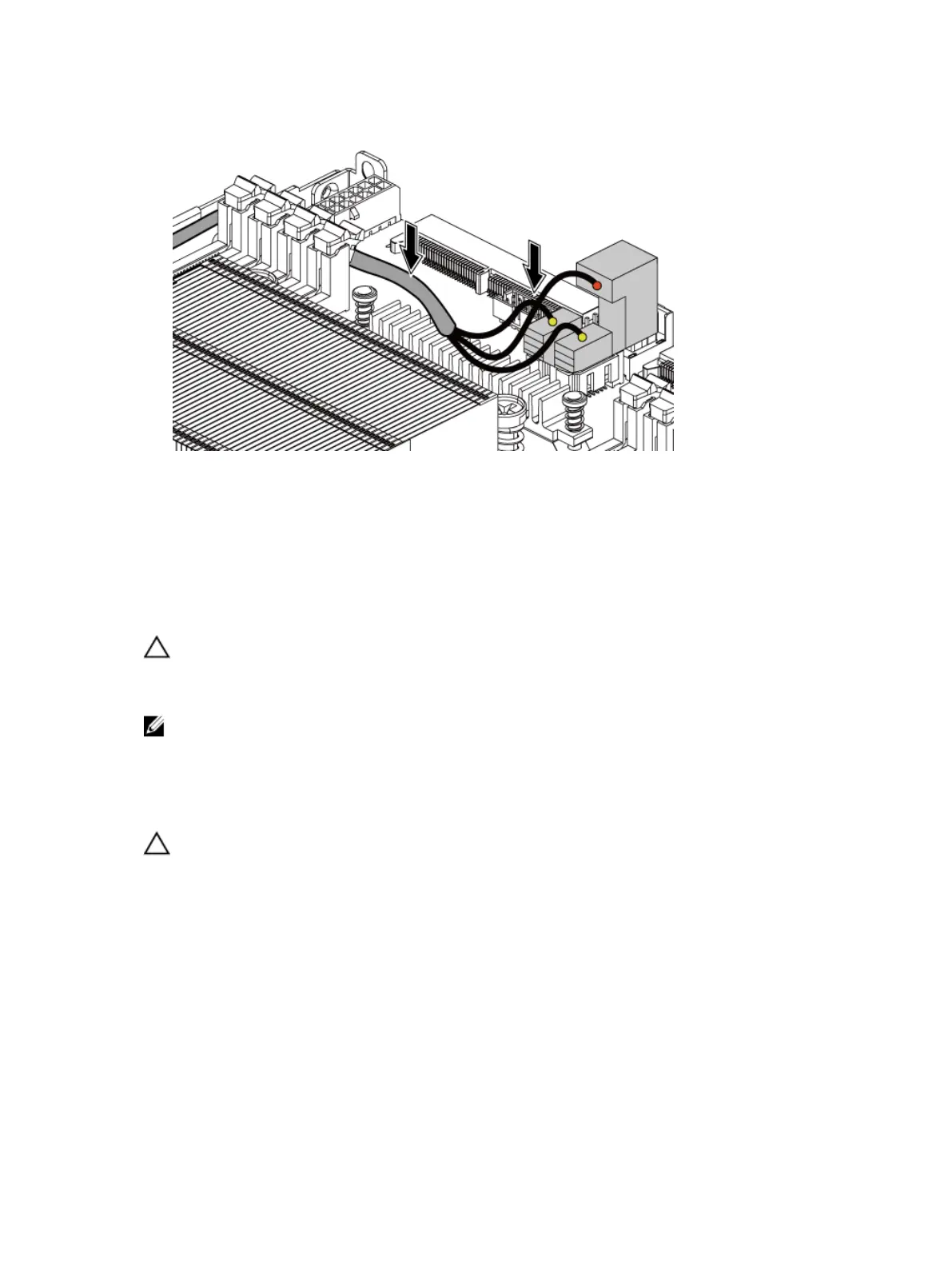

Figure 63. Cable routing down for onboard SATA cables (1U node)
Trusted Platform Module
Trusted Platform Module (TPM) is a dedicated microprocessor designed to secure hardware by
integrating cryptographic keys into devices. A software can use a Trusted Platform Module to
authenticate hardware devices. As each TPM chip has a unique and secret RSA key burned in as it is
produced, it can perform the platform authentication.
CAUTION: Do not attempt to remove the Trusted Platform Module (TPM) from the system board.
After the TPM is installed, it is cryptographically bound to that specific system board. Any attempt
to remove an installed TPM breaks the cryptographic binding, and it cannot be re-installed or
installed on another system board.
NOTE: This is a Field Replaceable Unit (FRU). Removal and installation procedures must be
performed only by Dell certified service technicians.
Installing the Trusted Platform Module
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
1. Follow the safety guidelines listed in the Safety instructions section.
2. Follow the procedure listed in the Before working inside your system section.
Steps
1. Locate the TPM connector on the system board.
