5. one 10pin control connector 6. two 17pin control connector for system
board 2 and 4
7. two 17pin control connector for system board
1 and 3
8. one 8pin control connector to hard drive
backplane
9. control panel connector for system board 3
and 4
Power distribution board 2 connectors

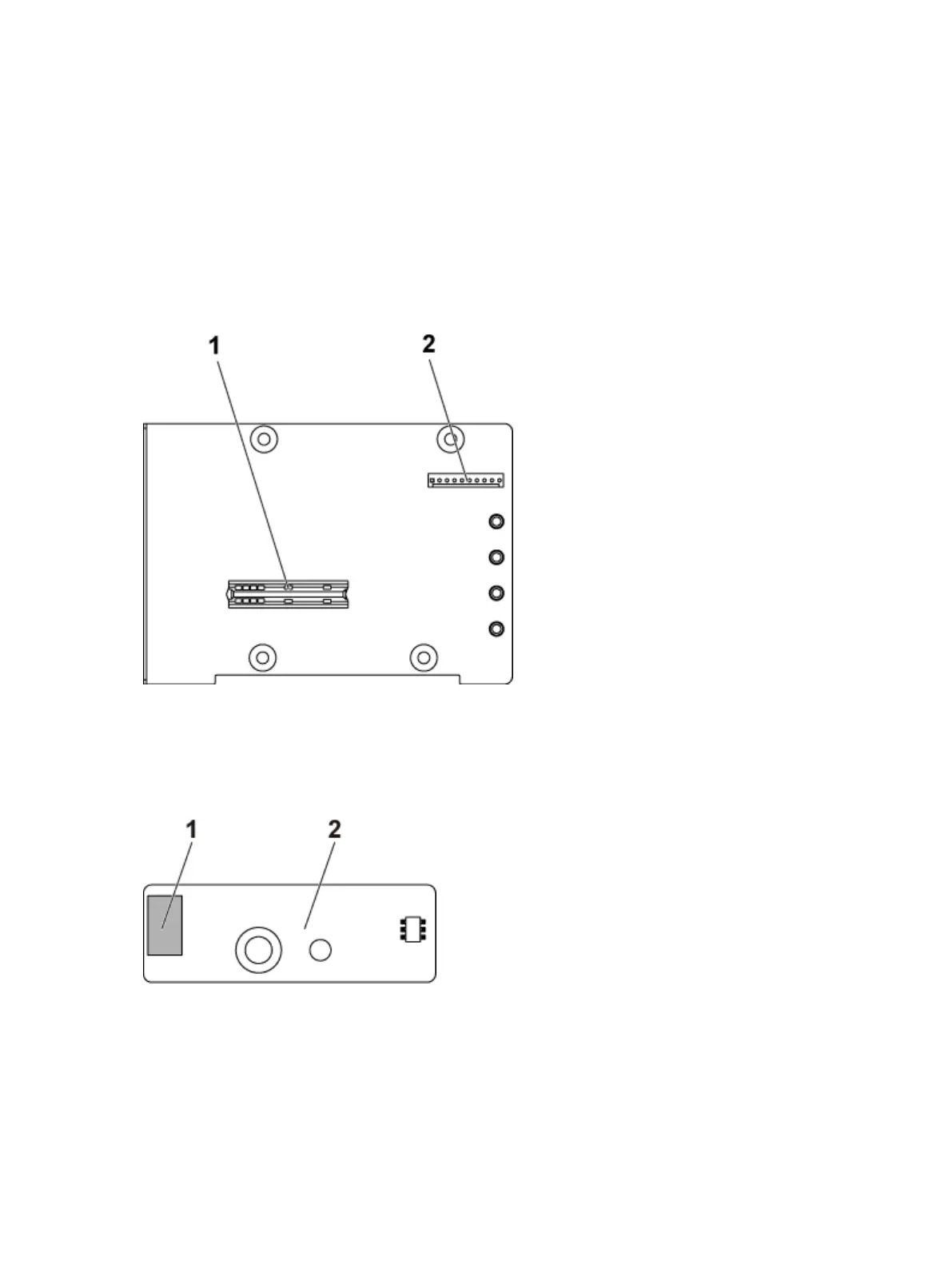

Figure 113. Power distribution board 2 connectors
1. bridge card connector 2. one 10pin control connector
Sensor board connectors
Figure 114. Sensor board connectors
1. power connector 2. sensor board
167
