Cable routing–midplane to the hard drive backplane

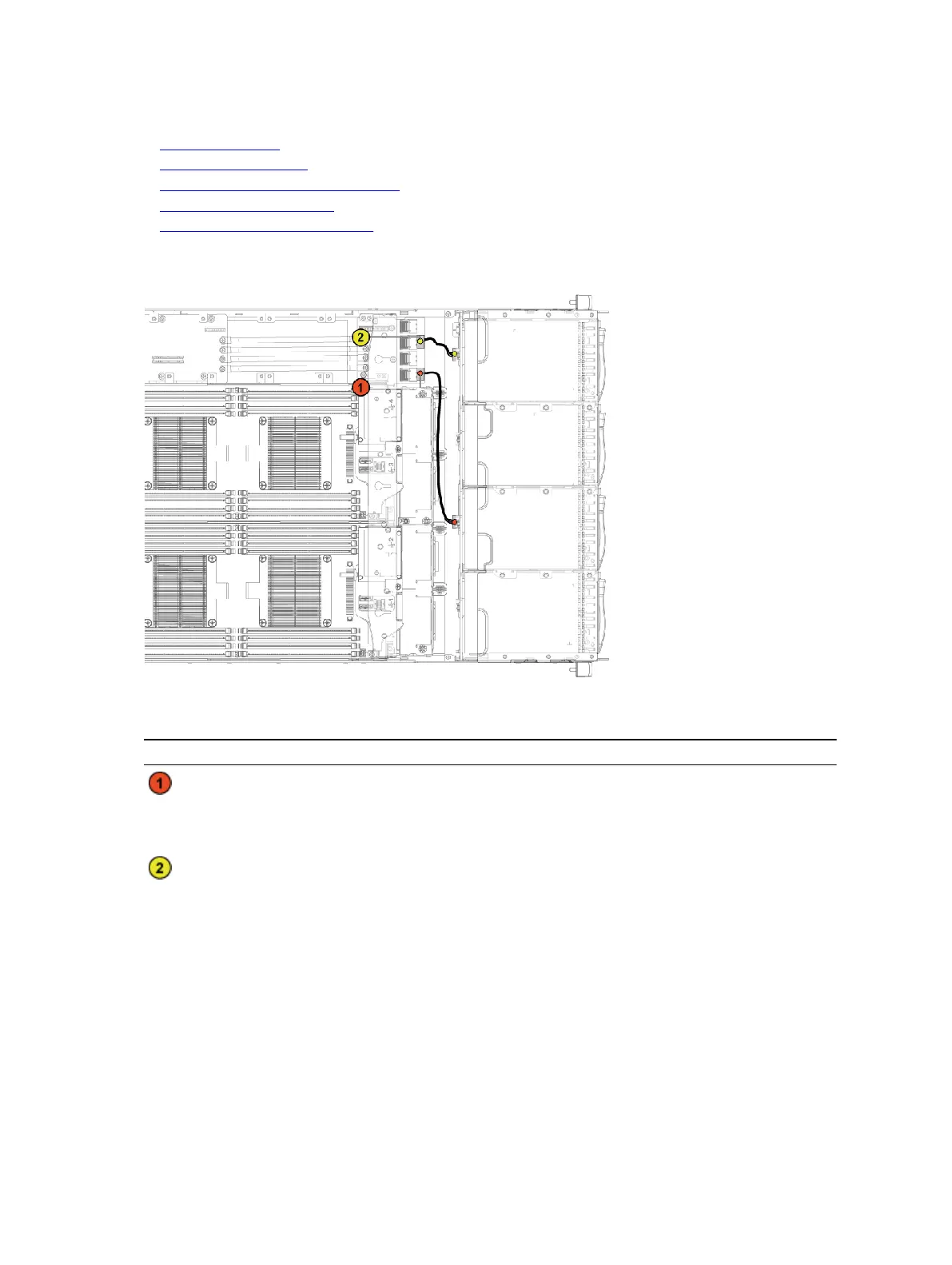

Figure 79. Cable routing−top midplane to backplane for 12 x3.5-inch hard drive configuration
Table 35. Cable routing−bottom midplane to backplane for 12 x3.5-inch hard drive configuration
Item Cable From (top midplane) To (backplane)
Hard drive backplane
cable
mini-SAS connector for
system board 1 (hard
drive 1, 2, 3 and 4) (J1)
SATA2 hard drive
connectors 1, 2 and 3
for system board 1 (from
top to bottom)
Hard drive backplane
cable
mini-SAS connector for
system board 3 (hard
drive 1, 2, 3 and 4) (J3)
SATA2 hard drive
connectors 1, 2 and 3
for system board 3 (from
top to bottom)
