LSI 2008 SAS mezzanine card connectors

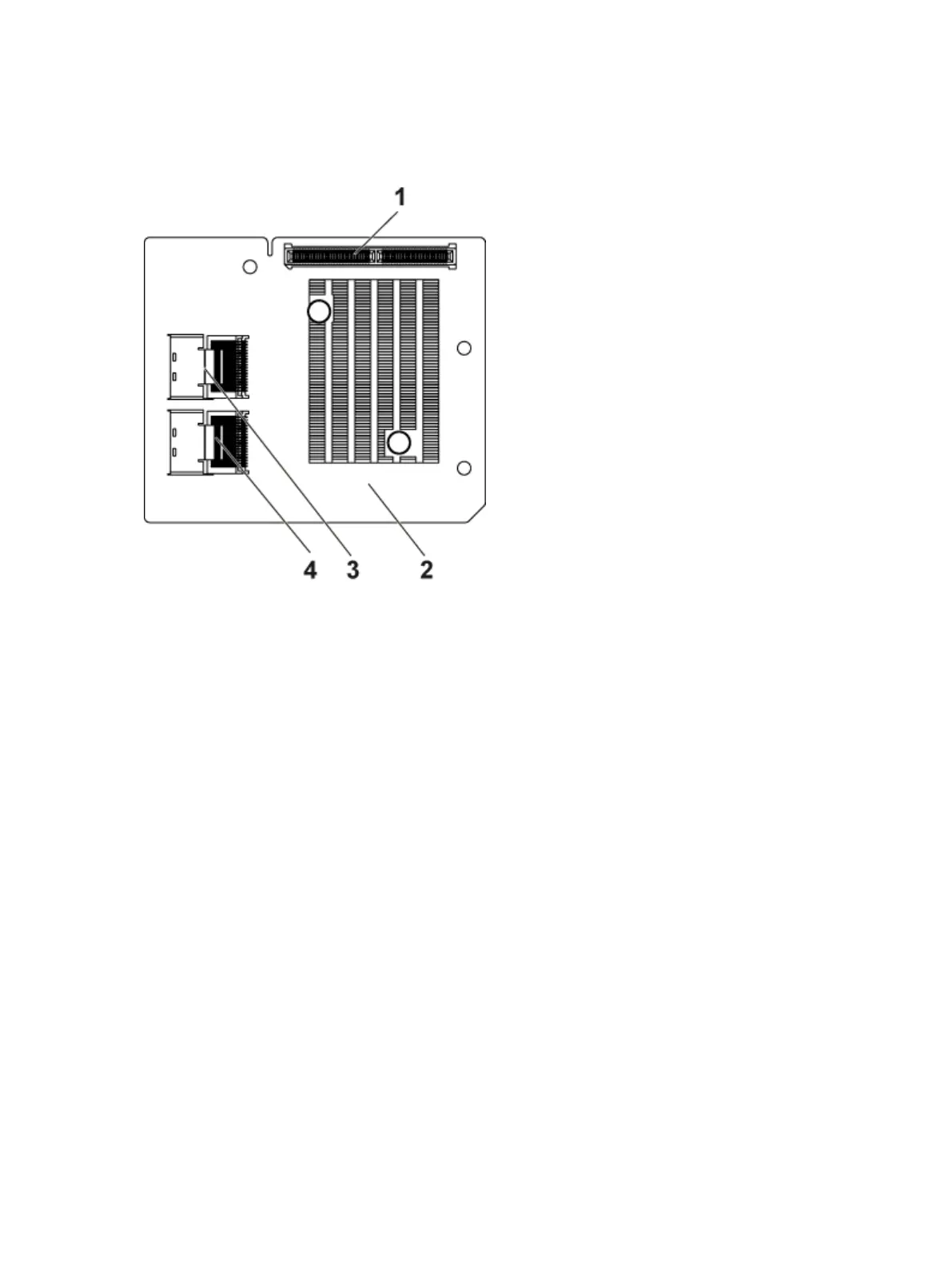

Figure 109. LSI 2008 SAS mezzanine card connectors
1. mezzanine card connectors 2. LSI 2008 mezzanine card
3. mini-SAS connector (port 4-7) 4. mini-SAS connector (port 0-3)
164
