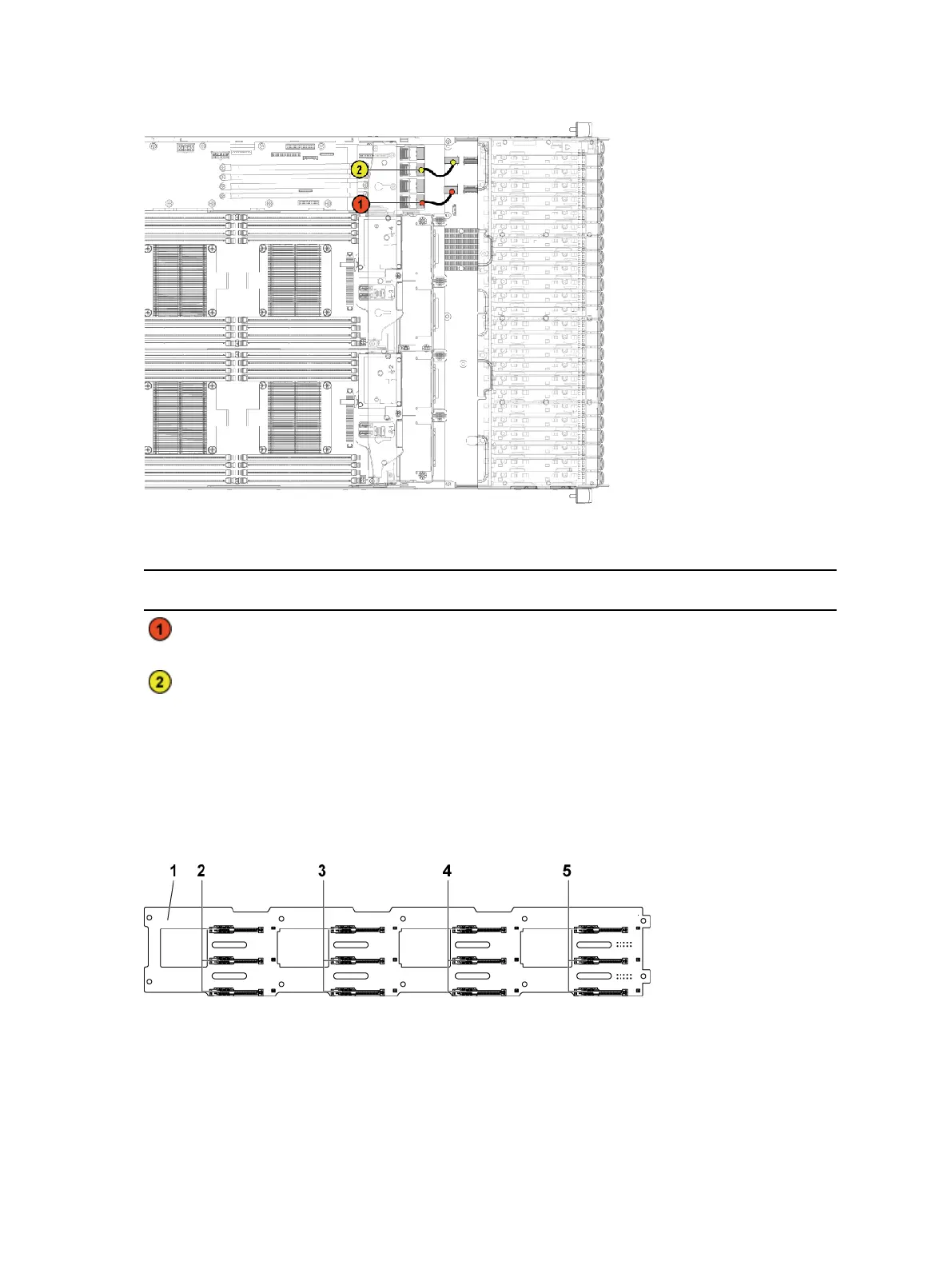

Figure 84. Cable routing−bottom middle plane to 2.5-inch hard drive for expander configuration
Table 40. Cable routing−bottom middle plane to 2.5-inch hard drive for expander configuration
Item Cable From (bottom middle
plane)
To (expander card)
Hard drive backplane
cable
Mini-SAS connector for
system board 2 (J4)
Mini-SAS connector
(4-7) for system board 2
Hard drive backplane
cable
Mini-SAS connector for
system board 4 (J6)
Mini-SAS connector
(12-15) for system board
4
Hard drive backplanes
Servers use a backplane to attach hot swappable hard drives. A backplane has pins that pass directly into
hard drive sockets without cables. They may have single connector to connect one disk array controller
or multiple connectors that can be connected to one or more controllers.
Figure 85. Front view of the 3.5 inch hard drive backplane
1. 3.5 inch backplane 2. hard drive connectors 1, 2 and 3 for system
board 1 (from top to bottom)
142
