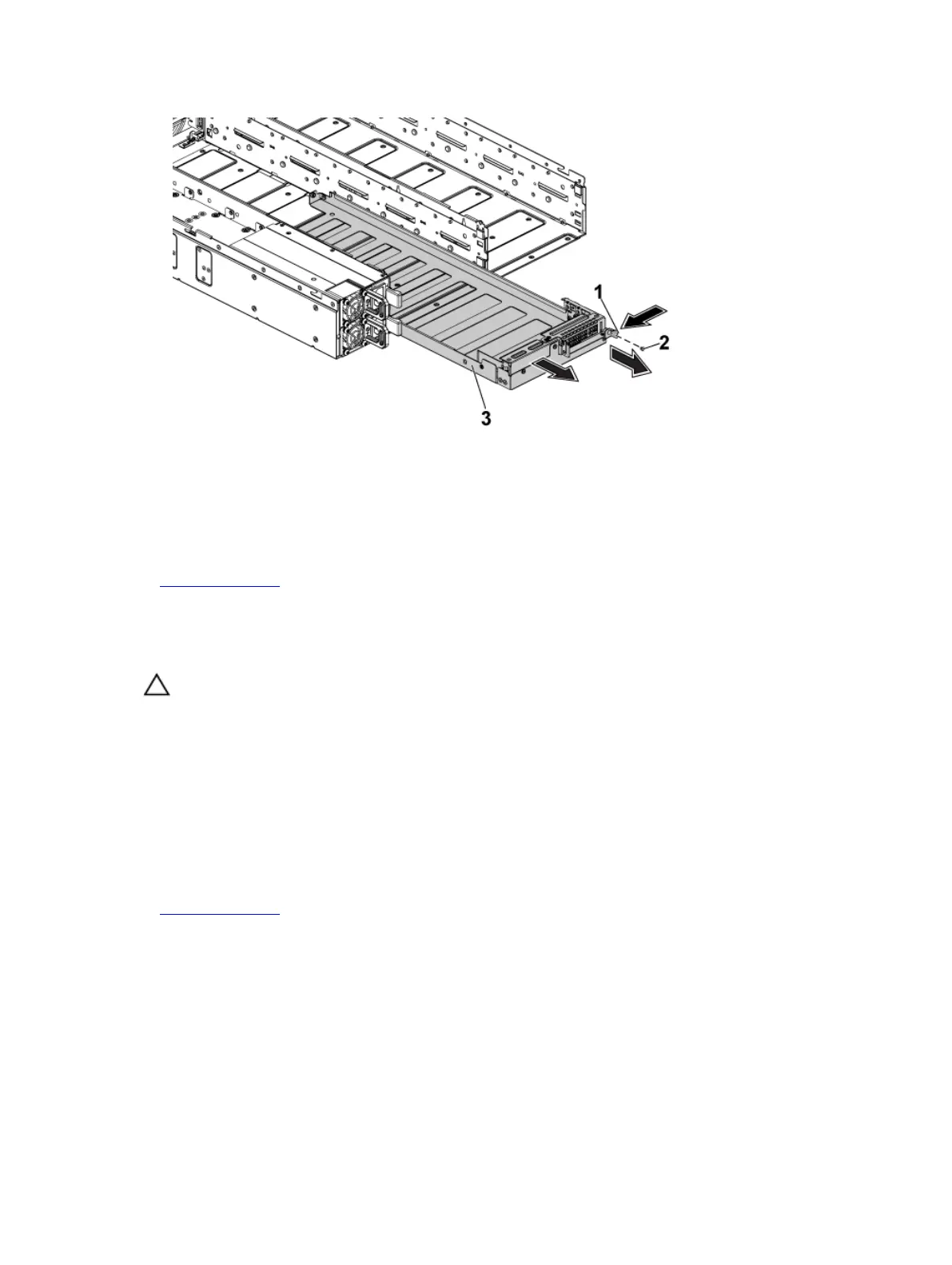

Figure 37. Removing and installing a system board tray
1. retaining latch 2. screw
3. system board tray
Related Links
Safety instructions
Installing the system board tray
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
Follow the safety guidelines listed in the Safety instructions section.
Steps
1. Slide the system board tray into the chassis until it snaps into place.
2. Replace the screw that secures the retaining latch.
Related Links
Safety instructions
