Cable routing for the power distribution boards

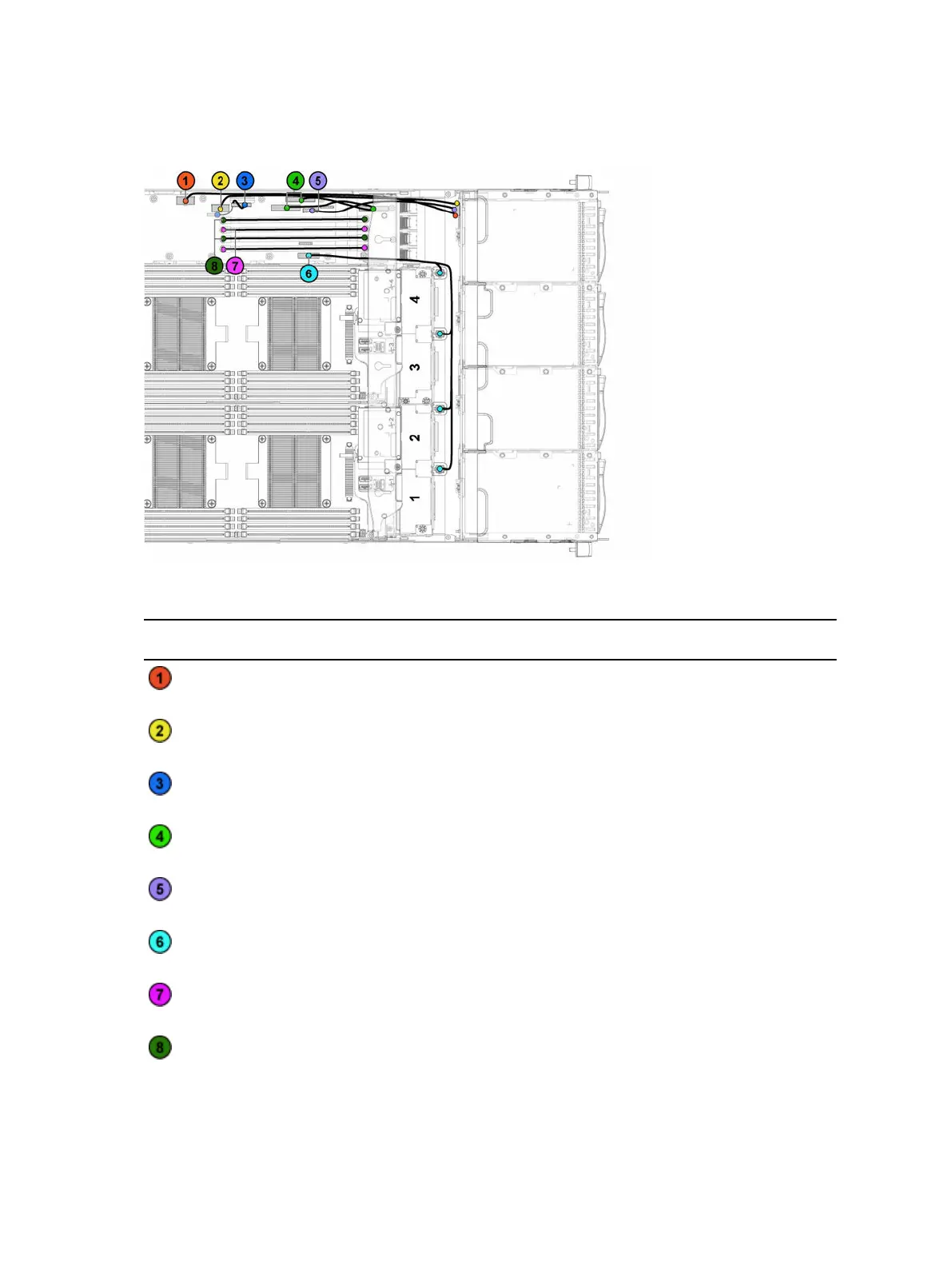

Figure 70. Cable routing−power distribution board 1 (top view)
Table 33. Cable routing−power distribution board 1 (top view)
Item Cable From (power
distribution boards)
To
Hard-drive backplane
power cable
Hard-drive backplane
power connector (J84)
Backplane
Hard-drive backplane
power cable
Hard-drive backplane
power connector (J29)
Backplane
Power distribution board
cable
Control connector (J31) Power distribution board
2
I2C cables System board control
connectors (J5&J6)
Midplanes
Backplane control cable Hard-drive backplane
control connector (J17)
Backplane
System fan cable System fan connector
(J9)
Cooling fans
12 V power cables Power distribution board
1/2
Midplanes
Ground power cables Power distribution board
1/2
Midplanes
