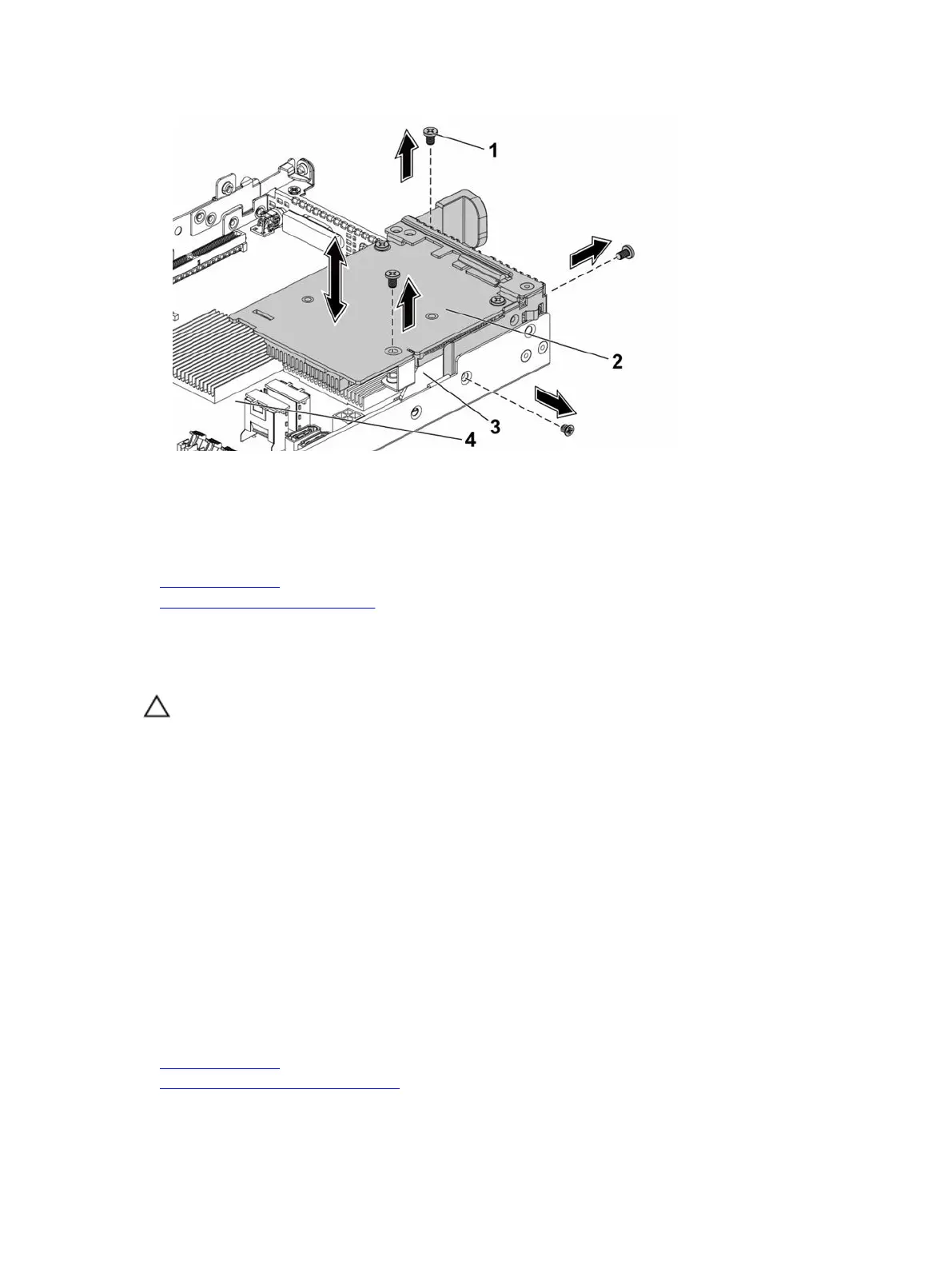

Figure 47. Removing and installing the LSI 2008 SAS mezzanine card
1. screw (3) 2. LSI 2008 SAS mezzanine card
3. card bridge card 4. system board assembly
Related Links
Safety instructions
C6320 system board connectors
Installing the optional LSI 2008 SAS mezzanine card
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
Follow the safety guidelines listed in the Safety instructions section.
Steps
1. Place the LSI 2008 SAS mezzanine card on the system board assembly.
2. Install the screws that secure the LSI 2008 SAS mezzanine card.
3. Reconnect all the cables to the LSI 2008 SAS mezzanine card.
Next steps
1. Install the system board assembly.
2. Reconnect the peripherals and connect the system to the electrical outlet.
3. Turn on the system, including any attached peripherals.
Related Links
Safety instructions
Installing the system board assembly
103
