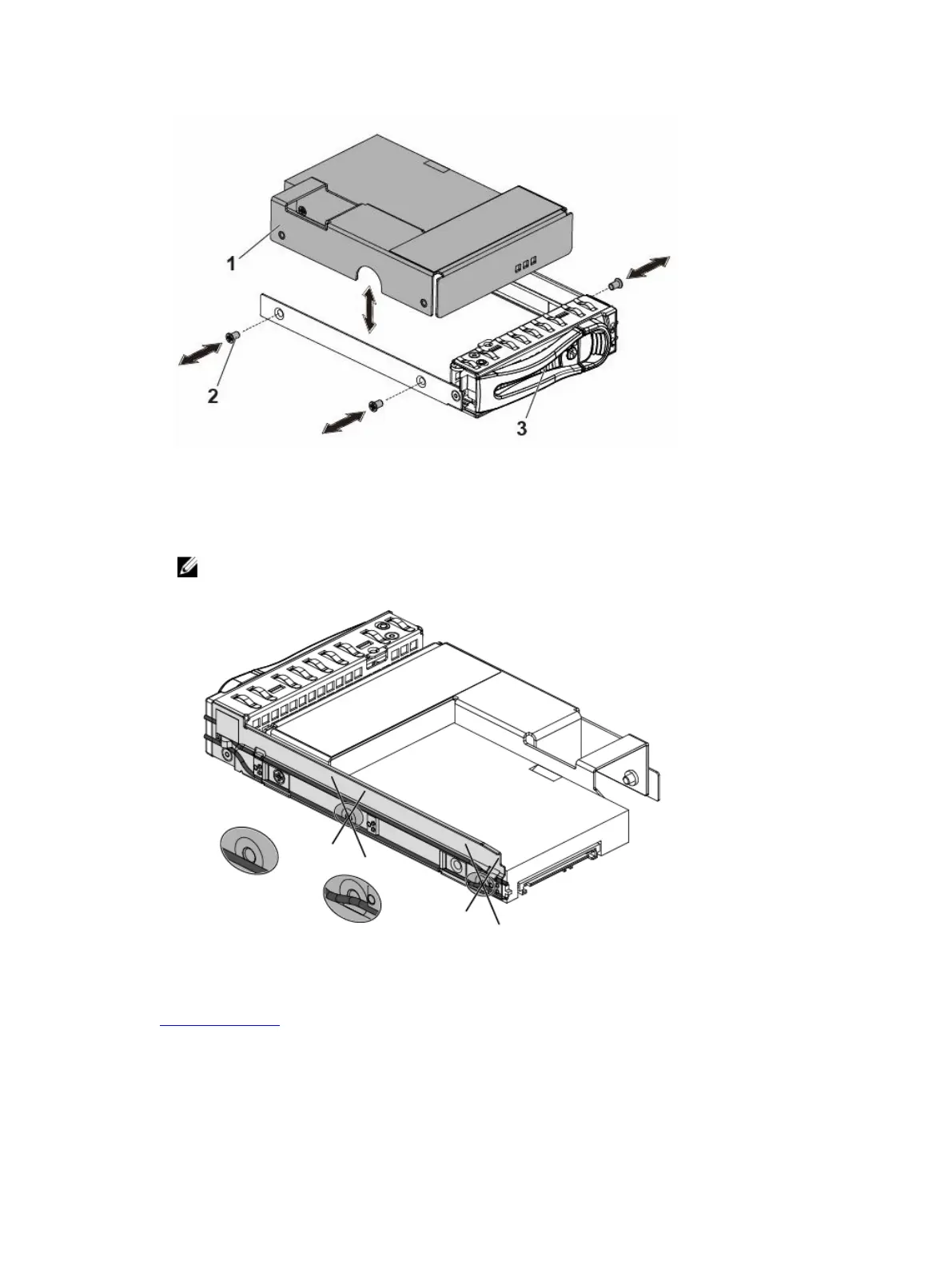

Figure 26. Removing and installing an adapter assembly from the hard drive carrier
1. adapter assembly 2. screw (3)
3. hard drive carrier
NOTE: Do not install screws in the screw holes on the side of SSD, which are occupied by the
light pipe.
Figure 27. Screw holes on the side of SSD occupied by the light pipe
