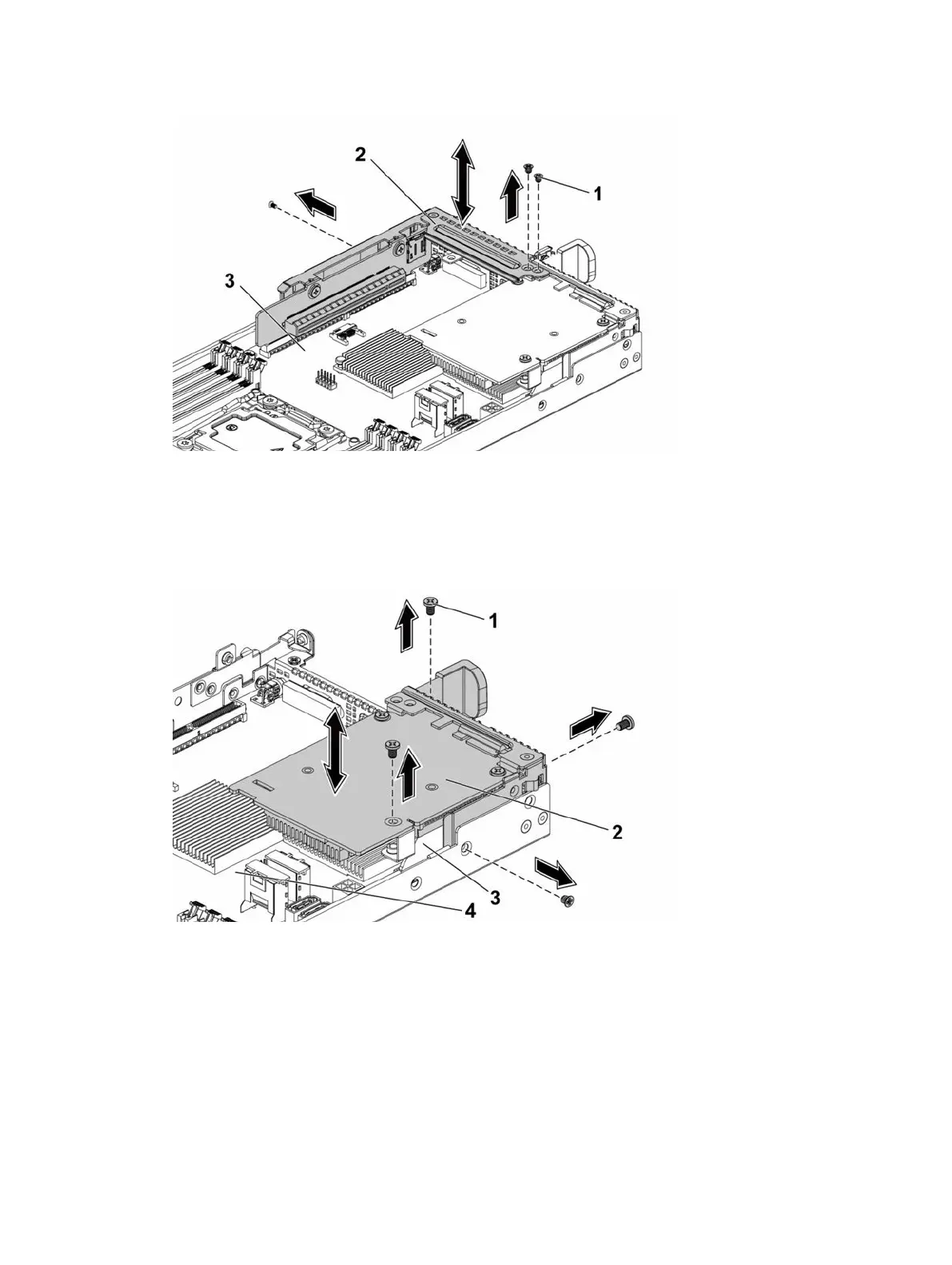

Figure 50. Removing and installing the expansion card bracket
1. screw (3) 2. expansion card bracket
3. system board assembly
3. Remove the screws that secure the 1GbE mezzanine card assembly.
4. Lift the 1GbE mezzanine card assembly away from the card bridge board on the system board.
Figure 51. Removing and installing the 1GbE mezzanine card assembly
1. screw (4) 2. 1GbE mezzanine card assembly
3. mezzanine card bridge board 4. system board assembly
5. Remove the screws that secure the 1GbE mezzanine card to the bracket.
6. Remove the 1GbE mezzanine card from the bracket.
