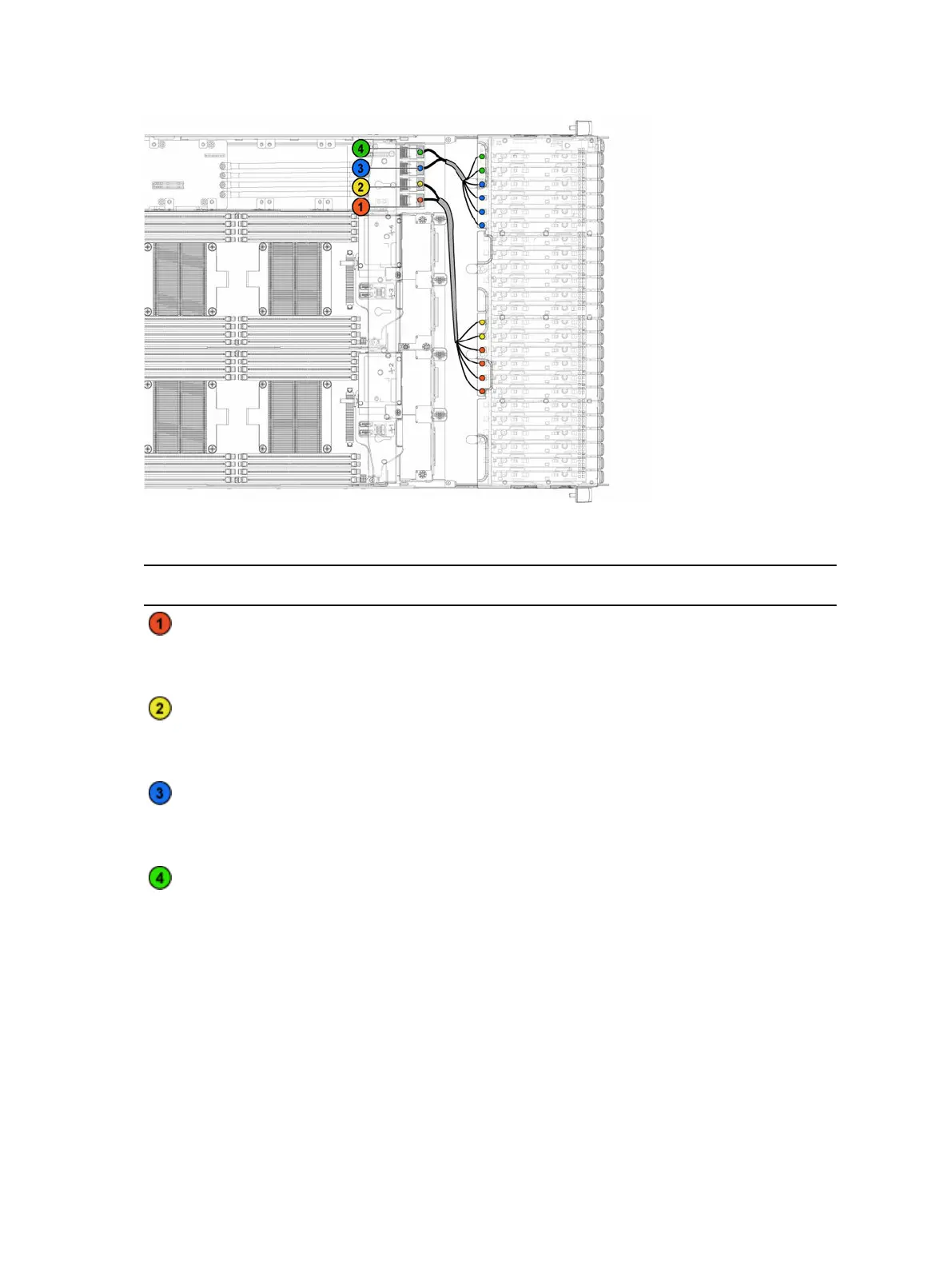

Figure 82. Cable routing−bottom midplane to backplane for 24 x2.5-inch hard drive configuration
Table 38. Cable routing−bottom midplane to backplane for 24 x2.5-inch hard drive configuration
Item Cable From (bottom
midplane)
To (backplane)
Hard drive backplane
cable
Mini-SAS connector for
system board 2 (hard
drive 1, 2, 3 and 4) (J1)
SATA2 hard drive
connectors 1 to 4 for
system board 2 (from
right to left)
Hard drive backplane
cable
Mini-SAS connector for
system board 2 (hard
drive 5 and 6) (J2)
SATA2 hard drive
connectors 5 to 6 for
system board 2 (from
right to left)
Hard drive backplane
cable
Mini-SAS connector for
system board 4 (hard
drive 1, 2, 3 and 4) (J3)
SATA2 hard drive
connectors 1 to 4 for
system board 4 (from
right to left)
Hard drive backplane
cable
Mini-SAS connector for
system board 4 (hard
drive 5 and 6) (J4)
SATA2 hard drive
connectors 5 to 6 for
system board 4 (from
right to left)
