Air shroud
Removing the air shroud
Prerequisites
CAUTION: Never operate your system with the air shroud removed. The system may get overheated quickly,
resulting in shutdown of the system and loss of data.
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working on your system .
3. Remove the system cover.
Steps
Hold the air shroud at both ends and lift the air shroud out of the system.

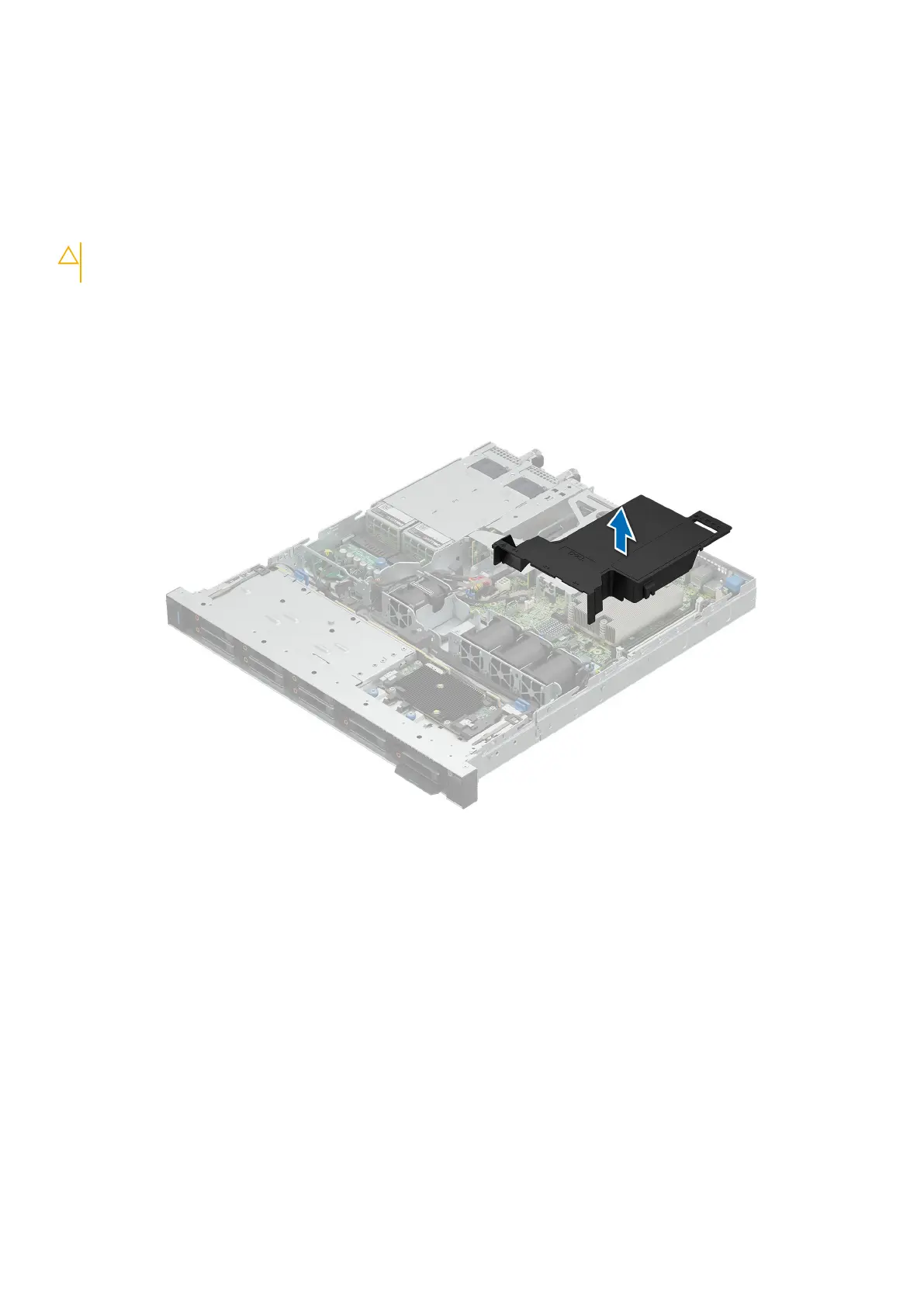

Figure 18. Removing air shroud
Next steps
Install the air shroud.
Installing the air shroud
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working on your system.
3. Remove the system cover.
Steps
1. Align the air shroud with the standoff on the chassis wall.
54
Installing and removing system components
