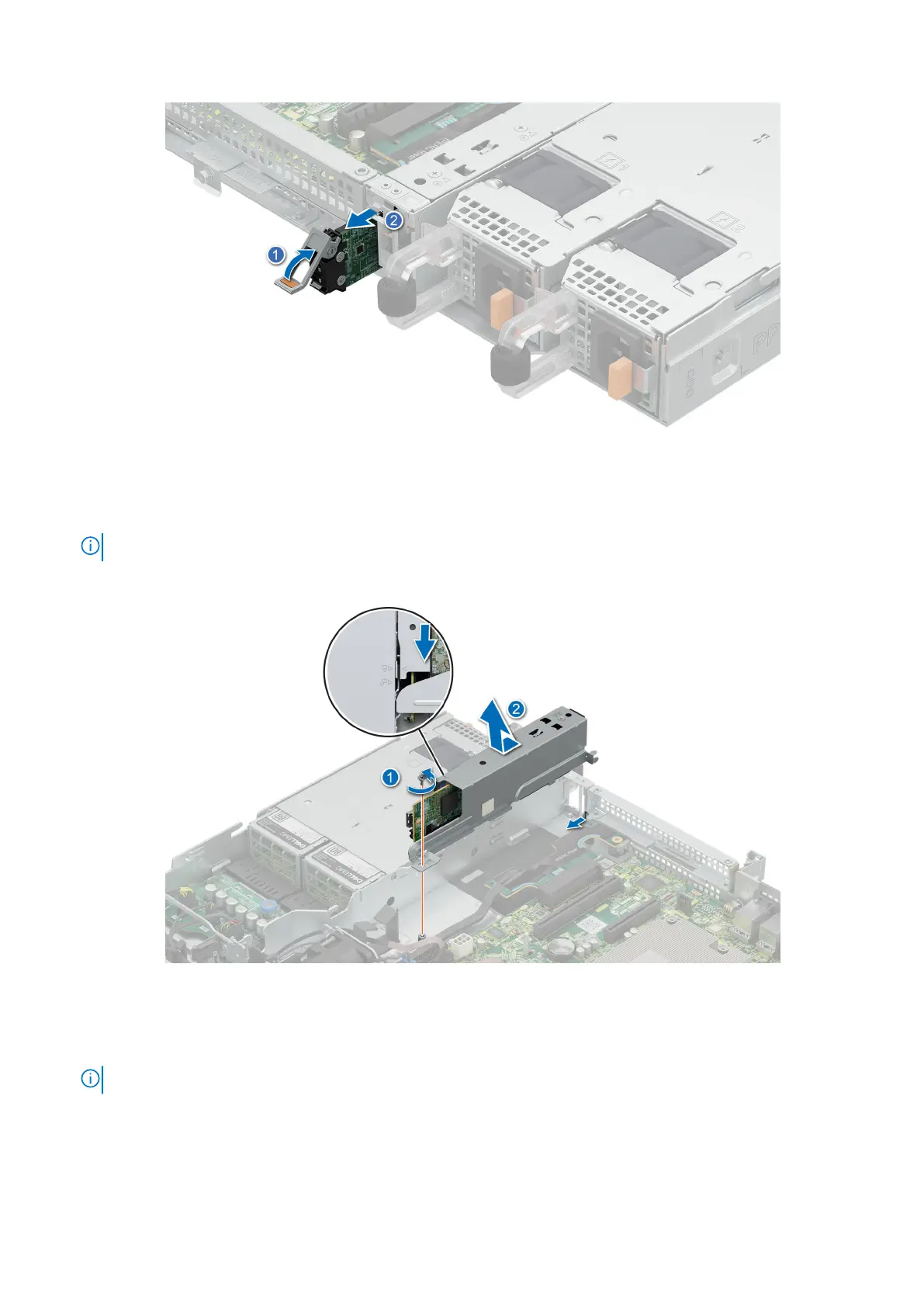

Figure 55. Removing the BOSS N1 M.2 module
4. Loosen and remove the single screw securing the BOSS N1 cage t the chassis floor.
5. Slide the BOSS N1 cage to the unlock position and lift from the system to remove.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
Figure 56. Removing the BOSS N1 cage
6. Loosen and remove the two screws securing the BOSS N1 card to the cage.
7. Pull the BOSS N1 card out from the cage.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
Installing and removing system components 87
