Denon AVR-4806 - Getting Started: Front Panel Interface; Front Panel Controls and Functions List

10

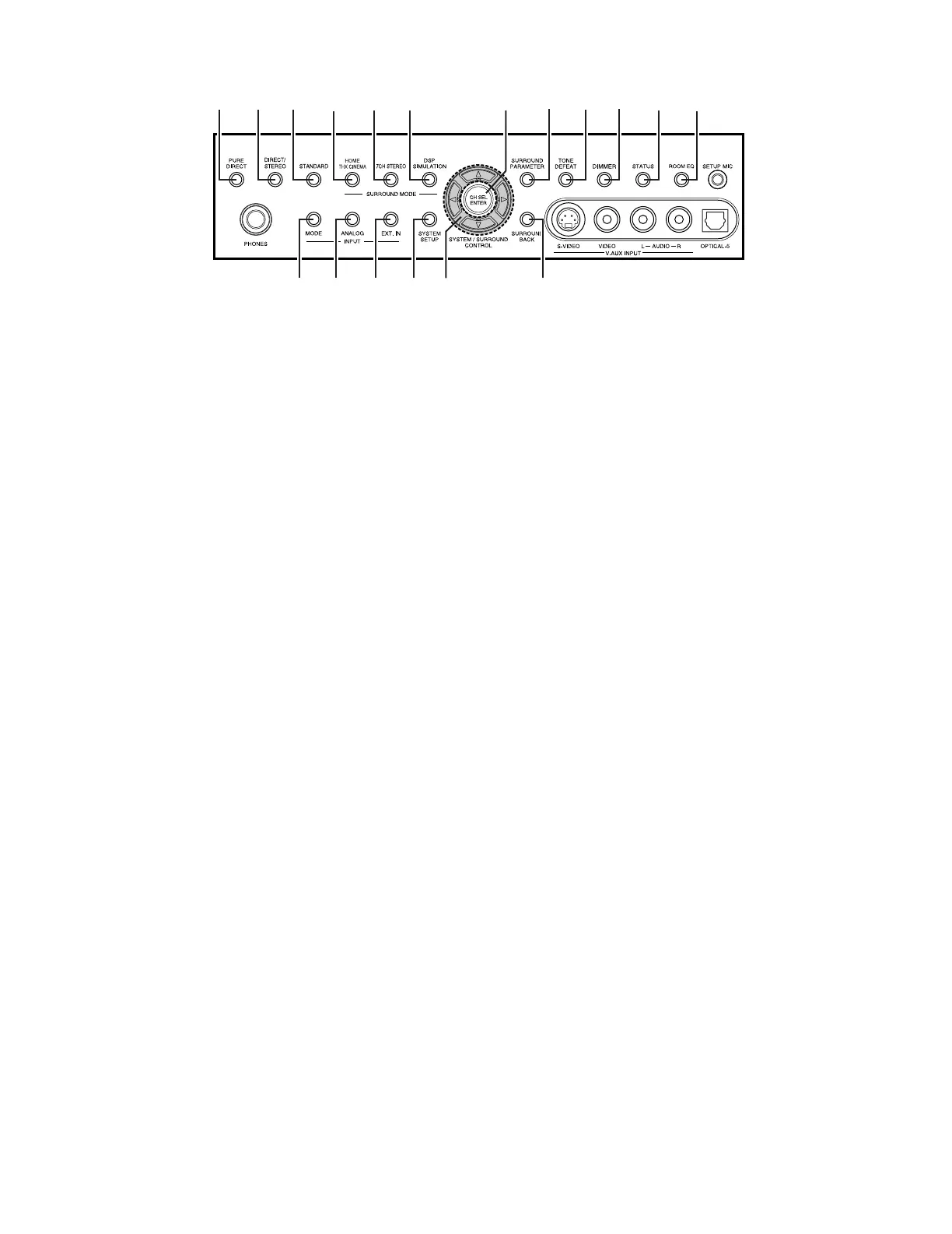

Getting Started
@0 @1 @2 @3 @5@4
#5#6#7 #4 #3
#2
@9#0#1 @8 @7 @6
q Power ON/STANDBY switch ................................(21)
w Power indicator ........................................................(21)
e Power switch ......................................................(21, 86)
r Headphones jack (PHONES) .................................(44)
t V.AUX INPUT terminals .........................................(30)
y SETUP MIC jack........................................................(20)
u USER MODE 1 button.............................................(59)
i USER MODE 2 button.............................................(59)
o USER MODE 3 button.............................................(59)
!0 Master volume control knob ................................(43)
!1 Master volume indicator........................................(43)
!2 Display ........................................................................(11)
!3 Remote control sensor .............................................(9)
!4 FUNCTION knob ....................................(43, 67, 82, 85)
!5 SOURCE button........................................................(43)
!6 TUNING PRESET button ........................................(67)
!7 ZONE2 SELECT button ...........................................(82)
!8 ZONE3/REC SELECT button ...........................(82, 85)
!9 MultEQ XT indicator ...............................................(47)
@0 INPUT MODE button...............................................(45)
@1 ANALOG button .......................................................(46)
@2 EXT. IN button ..........................................................(44)
@3 SYSTEM SETUP button .........................................(21)
@4 CURSOR button .......................................................(21)
@5 SURROUND BACK button .....................................(51)
@6 ROOM EQ button .....................................................(47)
@7 STATUS button.........................................................(45)
@8 DIMMER button........................................................(45)
@9 TONE DEFEAT button .............................................(63)
#0 SURROUND PARAMETER button .......................(50)
#1 CH SELECT/ENTER button........................(21, 64, 65)
#2 DSP SIMULATION button......................................(61)
#3 7CH STEREO button................................................(61)
#4 HOME THX CINEMA button ...........................(50, 51)
#5 STANDARD button............................................(53~57)
#6 DIRECT/STEREO button.........................................(49)
#7 PURE DIRECT button ..............................................(49)
