Denon AVR-4806 User Manual

16
Easy Setup and Operation
2 Connections

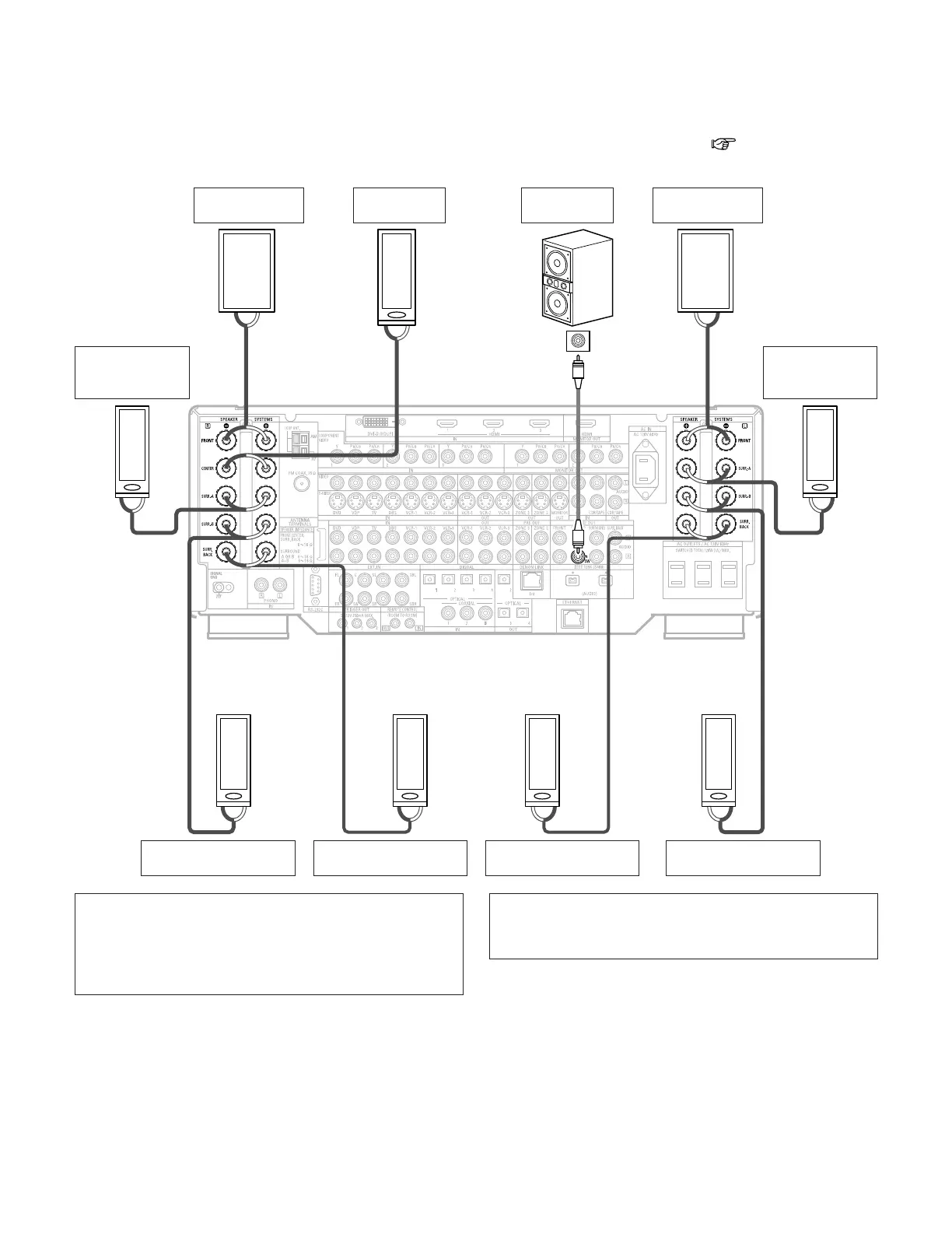

• The AVR-4806 can be configured for 10 speaker playback using two pairs of surround speakers (A+B) and one pair of surround
back speakers as shown below.
• The output of each power amplifier can be assigned to any desired channel to best suit the application.
For details, refer to “Setting the Channel Setup” and “Setting the Power Amplifier Assignment” ( page 105 ~ 107).
• When making connections, also refer to the operating instructions of the other components.
>< <>
><
><
>< >< <><>
<>
IN
(
L
)
(
R
)
(
R
) (
R
) (
L
) (
L
)
(
L
)
(
R
)
Connection terminal
for subwoofer with
built-in amplifier
(subwoofer), etc.
Surround
left speaker
(A)
Subwoofer
Front
right speaker
• Precautions when connecting speakers
If a speaker is placed near a TV or video monitor, the
colors on the screen may be disturbed by the speaker’s
magnetism. If this should happen, move the speaker
away to a position where it does not have this effect.
Surround
left speaker (B)
Surround back
left speaker
NOTE:
• When using only one surround back speaker, connect it
to left channel.
Front
left speaker
Center
speaker
Surround back
right speaker
Surround
right speaker (B)
Surround
right speaker
(A)
