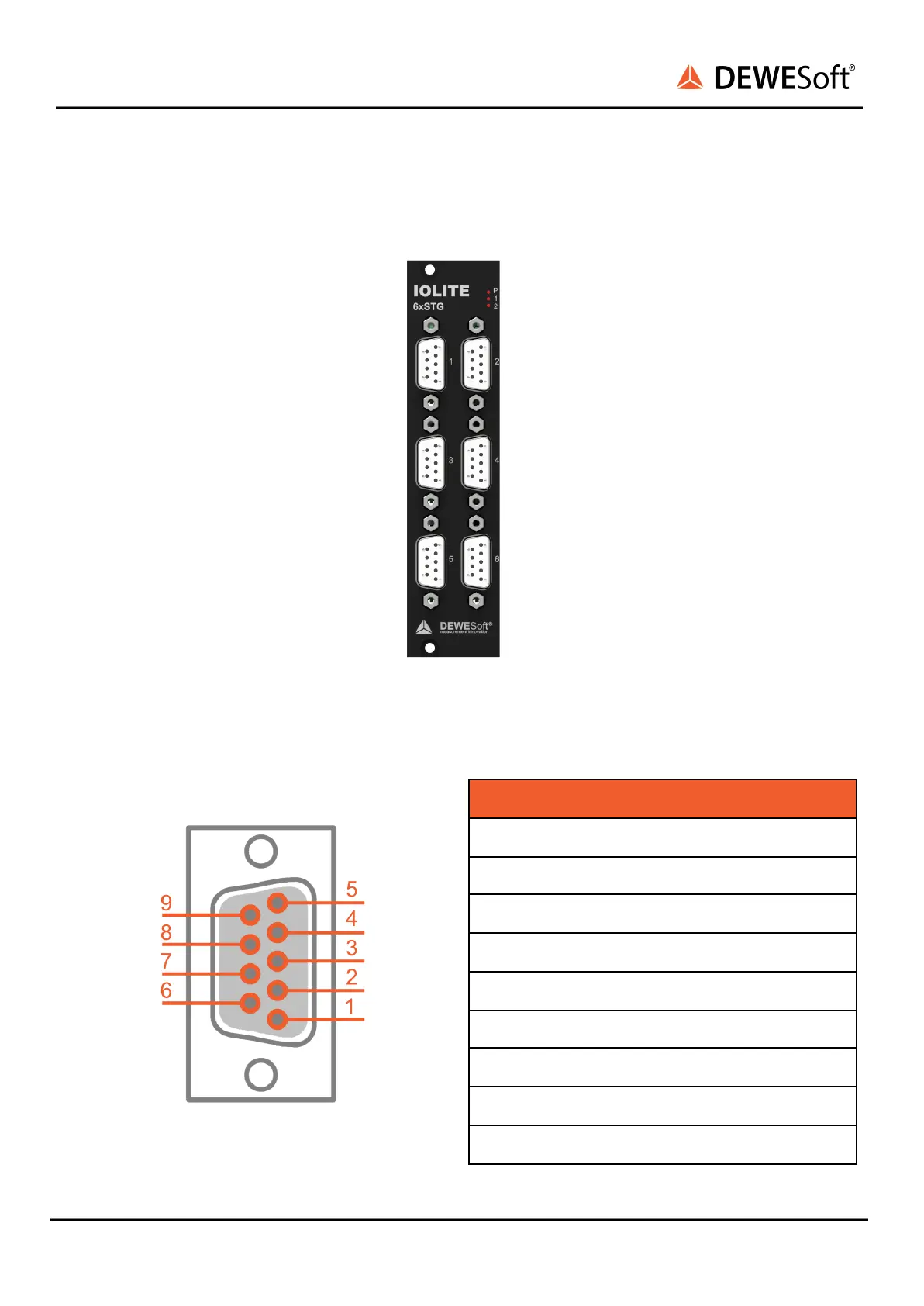

5.5.5. STG: DSUB-9 Connector

IOLITE-6xSTG module has 6 standard DSUB-9 female connectors for voltage or strain measurement.

IOLITE-6xSTG front

5.5.5.1. DSUB-9 Connector: Pinout

STG connector: pin-out (DSUB-9 female)

Name

Description

Exc+

Excitation+

In+

Input+

Sns-

Sense-

GND

Ground

R+

¼ Bridge / Shunt

Sns+

Sense+

In-

Input-

Exc-

Excitation-

TEDS
