5.1.7.8. IOLITEi-8xDI-4xDO: Digital Output: Pinout

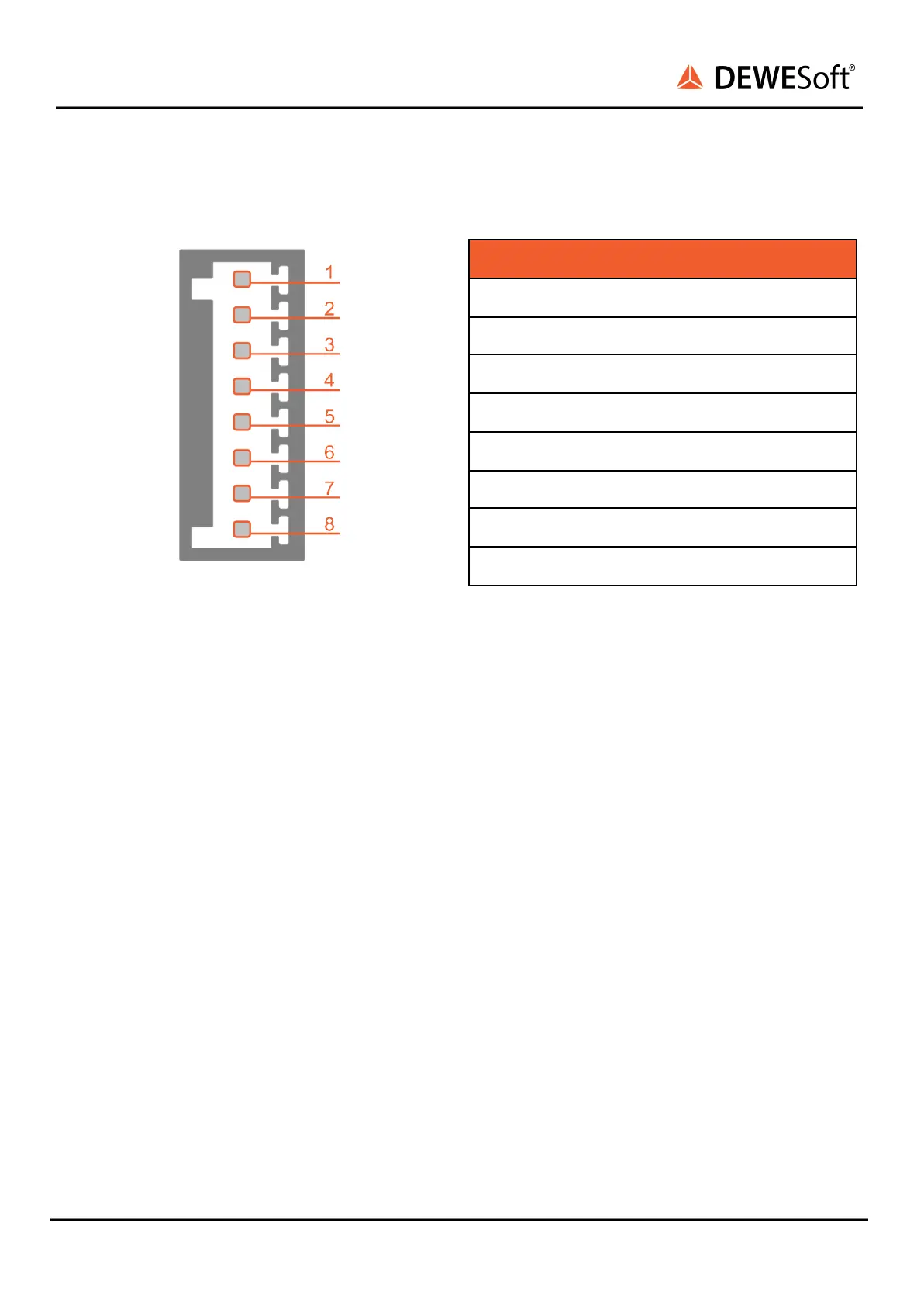

Digital out connector: pin-out (terminal block male)
Pin
Name
Description
1
DO 1
Digital output 1
2
-
Output ground
3
DO 2
Digital output 2
4
-
Output ground
5
DO 3
Digital output 3
6
-
Output ground
7
DO 4
Digital output 4
8
-
Output ground
DO connector (on the device): OMNIMATE Signal SL 2.50/09/90G
Mating connector (for the cable): OMNIMATE Signal BLF 2.50/09/180
