DEWESOFT IOLITE User Manual

IOLITE®
TECHNICAL REFERENCE MANUAL
4.3.1.5. IOLITE-GATE: Connection of IOLITE-R12 and DEWE-43A device
The connection of the IOLITE device to PC is the same as in 2.3.1.4.
Connect power supply cable to DEWE-43A (PS-60W-12V-5A-L1B2f). Then connect the USB cable
(CABLE-USBAmini-USBBS-1.8m) to the USB port on the connector side of DEWE-43A. Finally connect
the other side of the USB cable to the USB port on PC.
In order to have synchronized data between IOLITE and DEWE-43A, connect SYNC cable (e.g.
L00B4m-L00B4m-0.2m) to the SYNC connector on IOLITE-GATE and the other side of cable to the SYNC
connector on DEWE-43A.

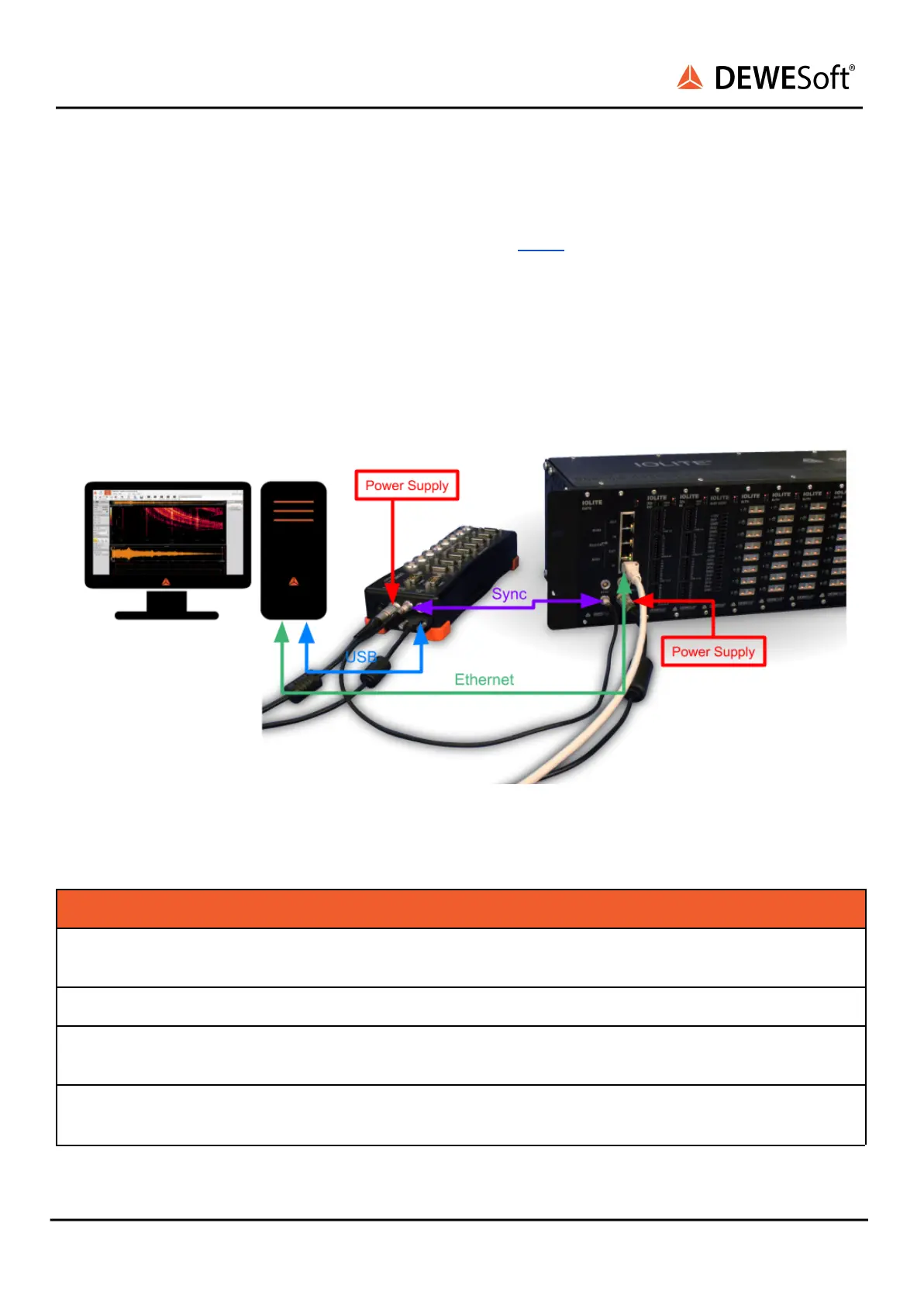

Connection of IOLITE-R12 and DEWE-43A device
List of required cables:
Function
Dewesoft order code
Power supply
IOLITE-R12: PS-120-L1B2f (default)
DEWE-43A: PS-60W-12V-5A-L1B2f (default)
Ethernet
RJ45-RJ45
USB
CABLE-USBAmini-USBBS-1.8m (default),
CABLE-USBAmini-USBBS-1m
Synchronization
L00B4m-L00B4m-0.2m (default), L00B4m-L00B4m-0.5m,
L00B4m-L00B4m-3m
IOLITE® V20-1 38/153
