DEWESOFT IOLITE User Manual

IOLITE®
TECHNICAL REFERENCE MANUAL

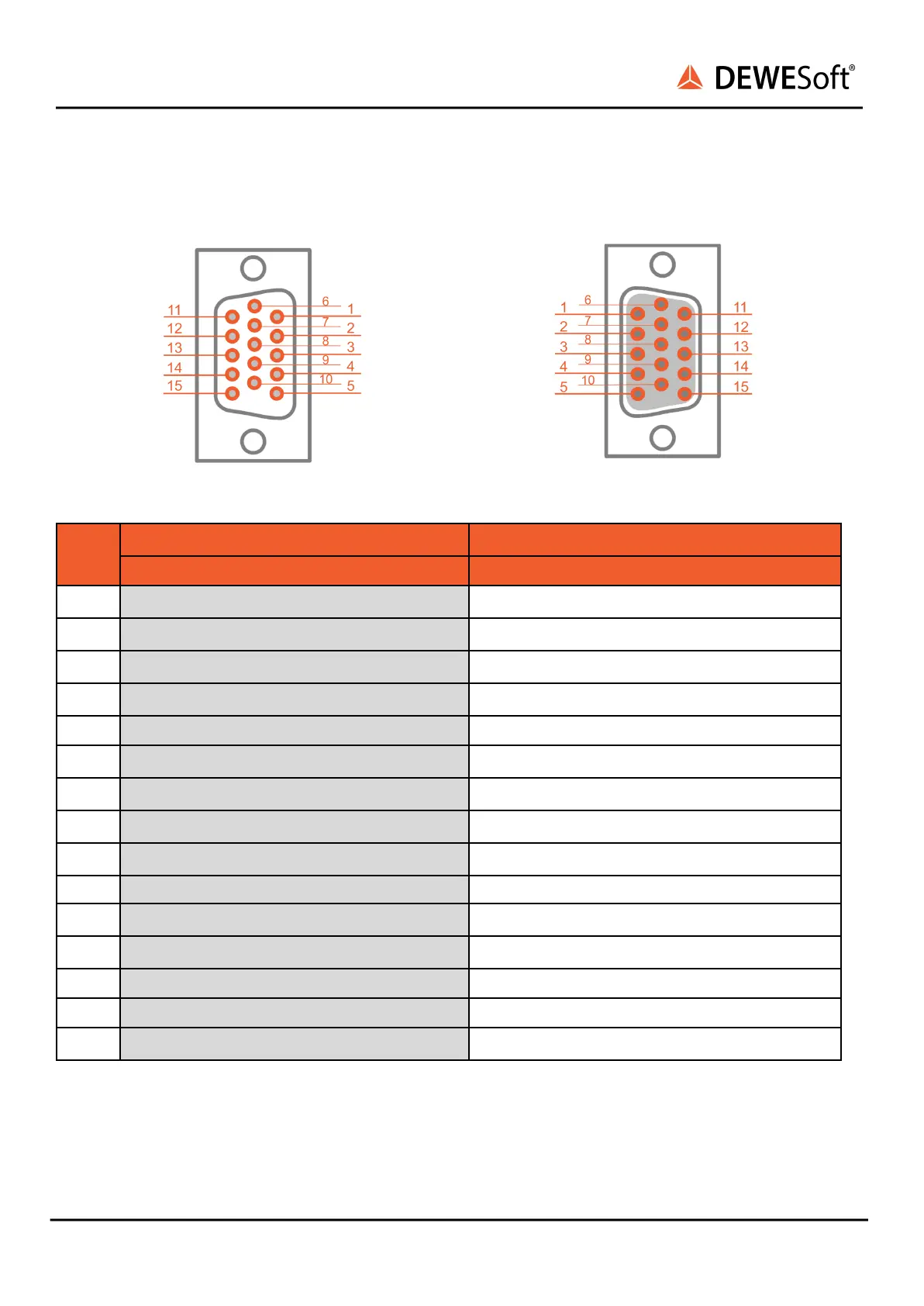

5.1.7.9. IOLITEi-4xDO and 4xDI Connectors: Pinout
DSUB-15 HD male for IOLITEi-4xDI
DSUB-15 HD female for IOLITEi-4xDO
Pin
4xDI
4xDO
Name
Description
Name
Description
1
DI1 +
Digital input CH1 +
DO1
Digital output CH1
2
DI2 +
Digital input CH2 +
DO2
Digital output CH2
3
DI3 +
Digital input CH3 +
DO3
Digital output CH3
4
DI4 +
Digital input CH4 +
DO4
Digital output CH4
5
NC
-
Vext +
External voltage
6
DI1 -
Digital input CH1 -
GNDi
Isolated ground
7
DI2 -
Digital input CH2 -
GNDi
Isolated ground
8
DI3 -
Digital input CH3 -
GNDi
Isolated ground
9
DI4 -
Digital input CH4 -
GNDi
Isolated ground
10
NC
-
NC
-
11
+5V/300mA
5 V supply, max. 300 mA
+5V/300mA
5 V supply, max. 300 mA
12
+12V/130mA
12 V supply, max.130 mA
+12V/130mA
12 V supply, max.130 mA
13
GND
Ground
GND
Ground
14
GND
Ground
GND
Ground
15
V
supply
/200mA
Supply voltage, max. 200 mA
V
supply
/200mA
Supply voltage, max. 200 mA
IOLITE® V20-1 77/153
