4.3.1.3.1. IOLITE-GATE: Connectors
The IOLITE-GATE module includes 4x RJ45 connectors for dual EtherCAT bus. Primary bus (BUS 1) for
buffered data and Secondary bus (BUS 2) for unbuffered data have IN and OUT connectors.
Two 2-pin LEMO 1B connectors are used for redundant power supply (PWR IN).
Synchronization with Dewesoft USB data acquisition devices or connection to clock master is on
IOLITE-GATE enabled by connecting a synchronization cable to two SYNC inputs (4-pin LEMO 00).

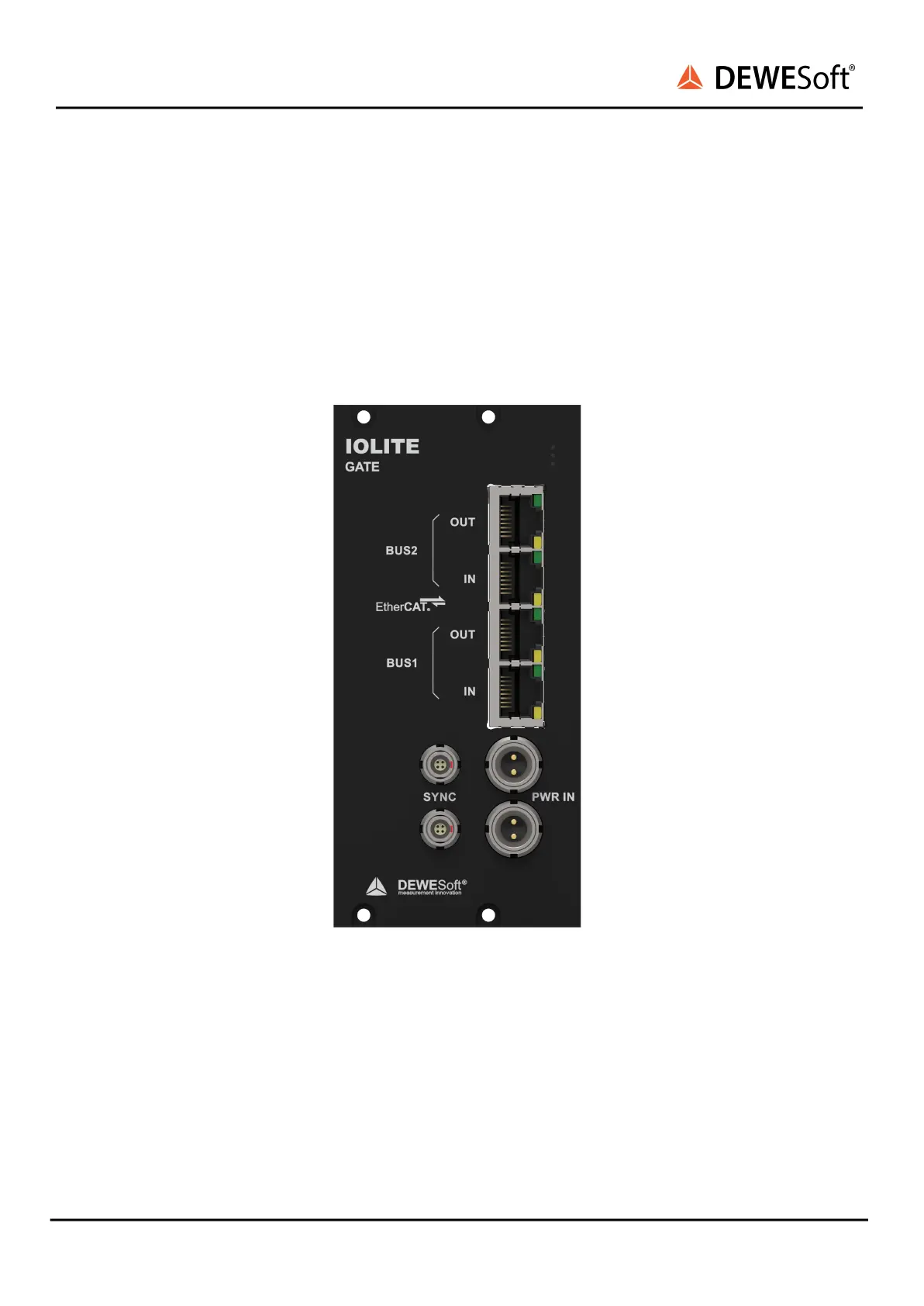

IOLITE-GATE front
