IOLITE®
TECHNICAL REFERENCE MANUAL

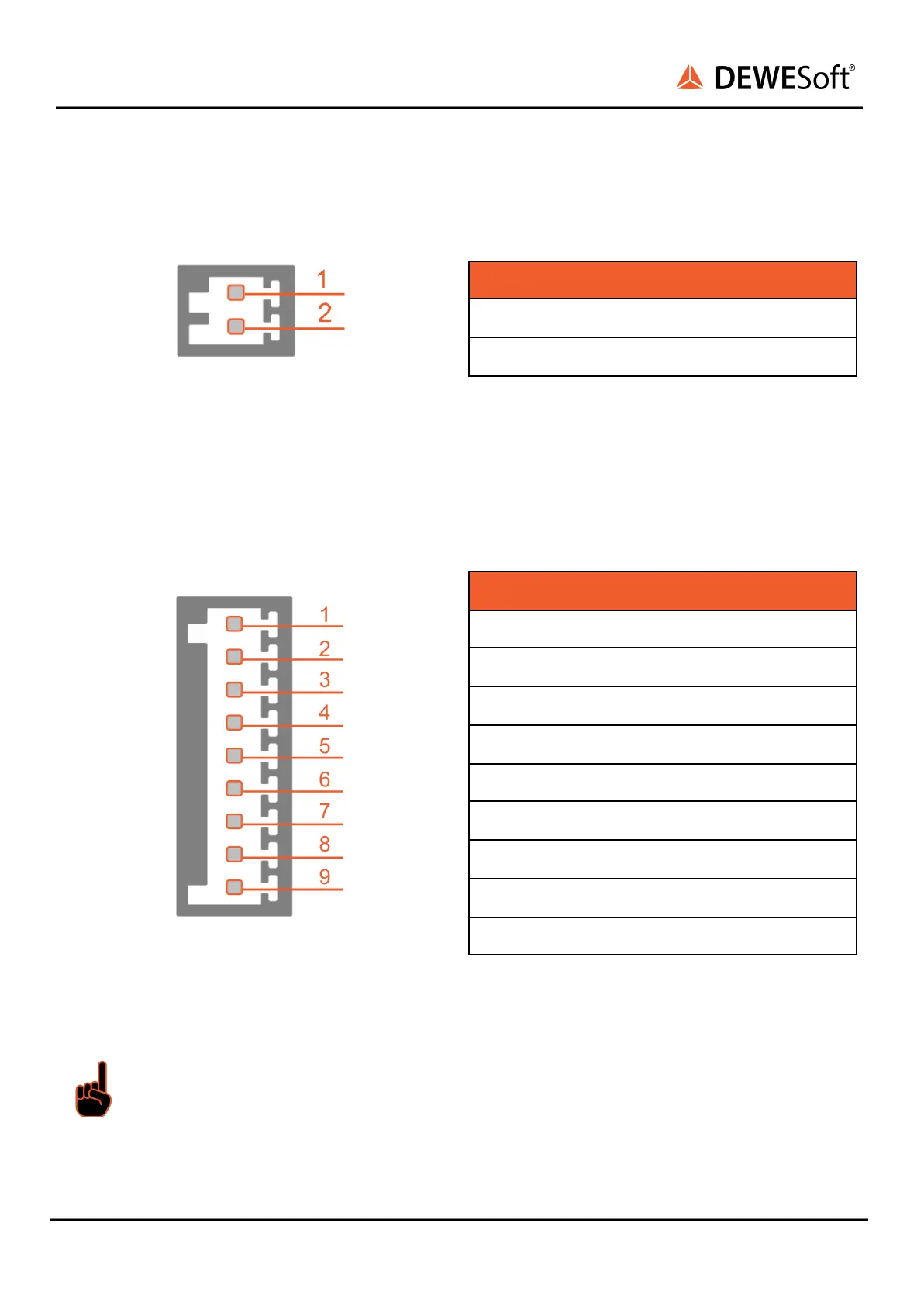

5.1.7.1. IOLITEi-32xDI: Power Out: Pinout
Power out connector: pin-out (terminal block male)
Pin
Name
Description
1
VOUT
Output voltage
2
GND
Ground
PWR OUT connector (on the device): OMNIMATE Signal SL 2.50/02/90G
Mating connector (for the cable): OMNIMATE Signal BLF 2.50/02/180
5.1.7.2. IOLITEi-32xDI: Digital Input: Pinout
Digital in connector: pin-out (terminal block male)
Pin
Name
Description
1
DI 1
Digital input 1
2
DI 2
Digital input 2
3
DI 3
Digital input 3
4
DI 4
Digital input 4
5
DI 5
Digital input 5
6
DI 6
Digital input 6
7
DI 7
Digital input 7
8
DI 8
Digital input 8
9
COM
Common ground
DI connector (on the device): OMNIMATE Signal SL 2.50/09/90G
Mating connector (for the cable): OMNIMATE Signal BLF 2.50/09/180
Important
The common ground is not shared through all the 32 channels, but by groups of 8 channels.
IOLITE® V20-1 72/153
