DEWESOFT IOLITE - IOLITE-R8: Boxed Chassis: BUS 1: IN: Pinout

IOLITE®
TECHNICAL REFERENCE MANUAL
4.3.2.3.3. IOLITE-R8: Boxed Chassis: BUS 1: IN: Pinout
IN connector of primary EtherCAT bus (BUS 1) is a 8-pin LEMO 1B male connector.

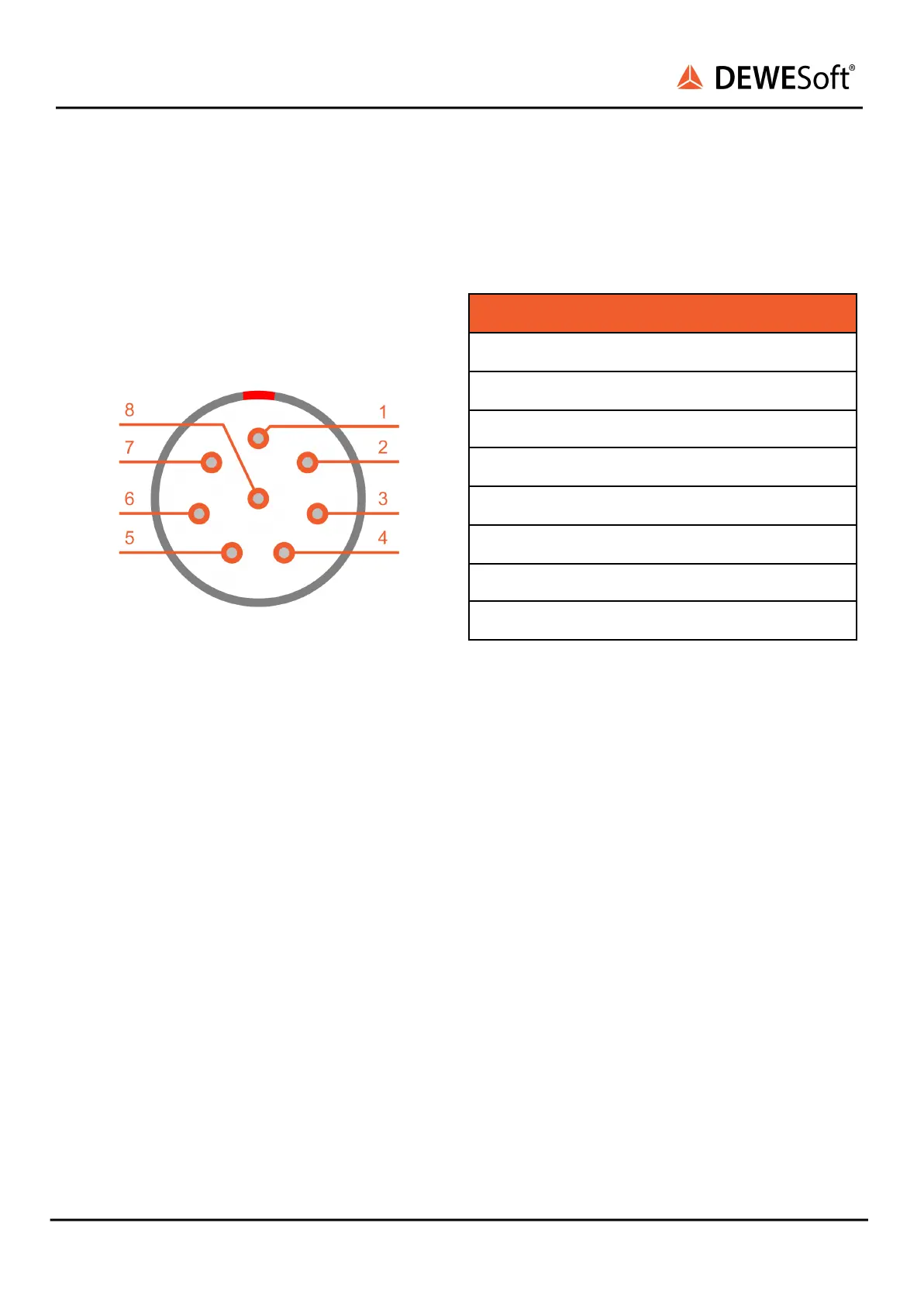

EtherCAT connector: pin-out (8-pin LEMO male)
Pin
Name
Description
1
TX_P
Transmission +
2
TX_N
Transmission -
3
RX_P
Reception +
4
RX_N
Reception -
5
VCC
Power IN
6
VCC
Power IN
7
GND
Ground
8
GND
Ground
BUS 1 IN connector (on the device): EEJ.1B.308.CLD
Mating connector (for the cable): FGJ.1T.308.CLL.1433
IOLITE® V20-1 45/153
