DEWESOFT IOLITE User Manual

IOLITE®
TECHNICAL REFERENCE MANUAL

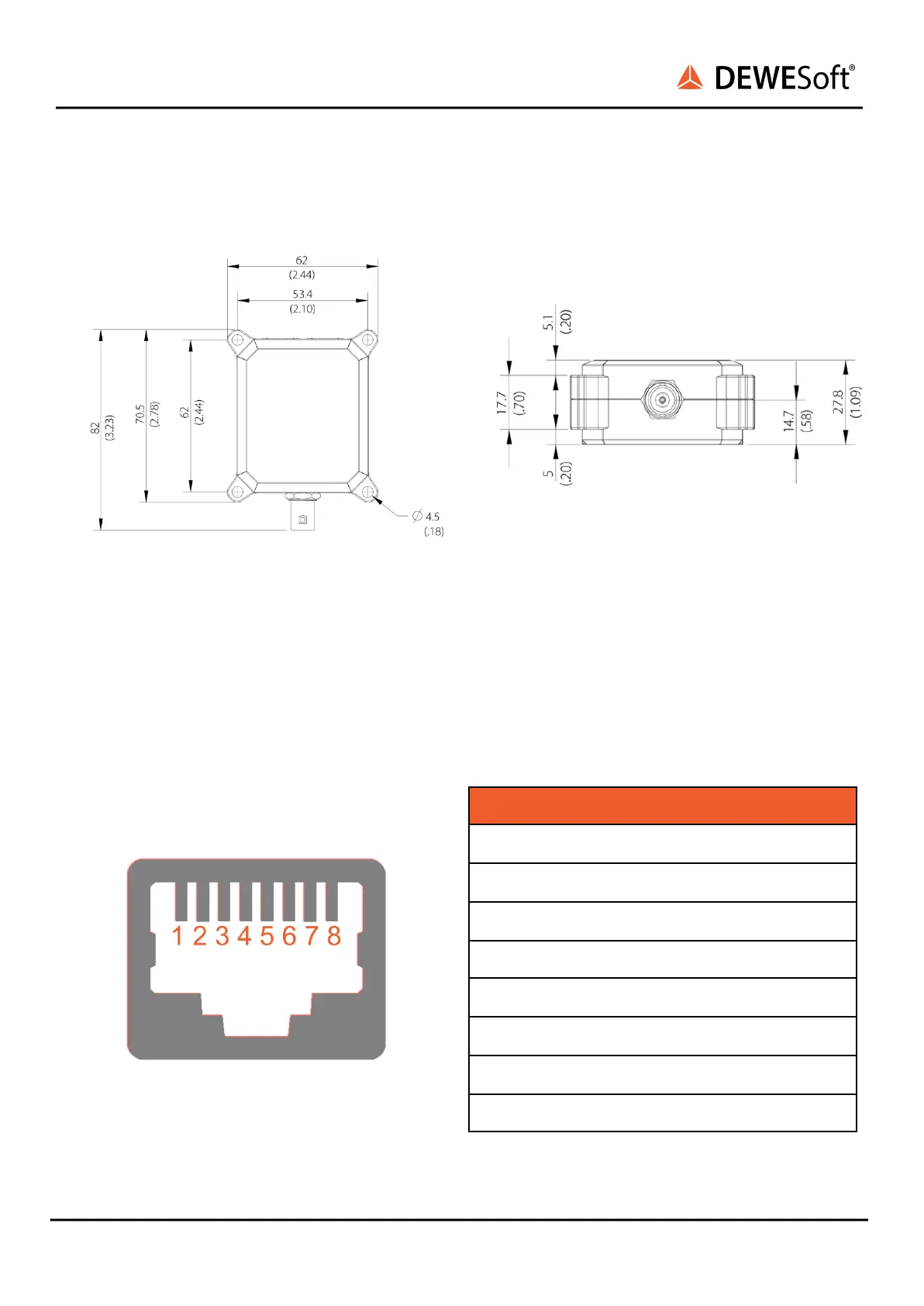

4.3.3.2. IOLITE - Single channel: Dimensions
4.3.3.3. IOLITE - Single channel: Connectors
4.3.3.3.1. EtherNET - IN (Data, Sync, PWR)
Connector used on the device is a standard Ethernet connector (RJ45).
Standard ethernet cable with standard connector can be used to connect IOLITE-Single channel with a
PC.
EtherCAT connector: pin-out (RJ-45 female)
Pin
Name
Description
1
TX_P
Transmission +
2
TX_N
Transmission -
3
RX_P
Reception +
4
DC +
PoE +
5
DC +
PoE +
6
RX_N
Reception -
7
DC -
PoE -
8
DC -
PoE -
IOLITE® V20-1 58/153
