IOLITE®
TECHNICAL REFERENCE MANUAL

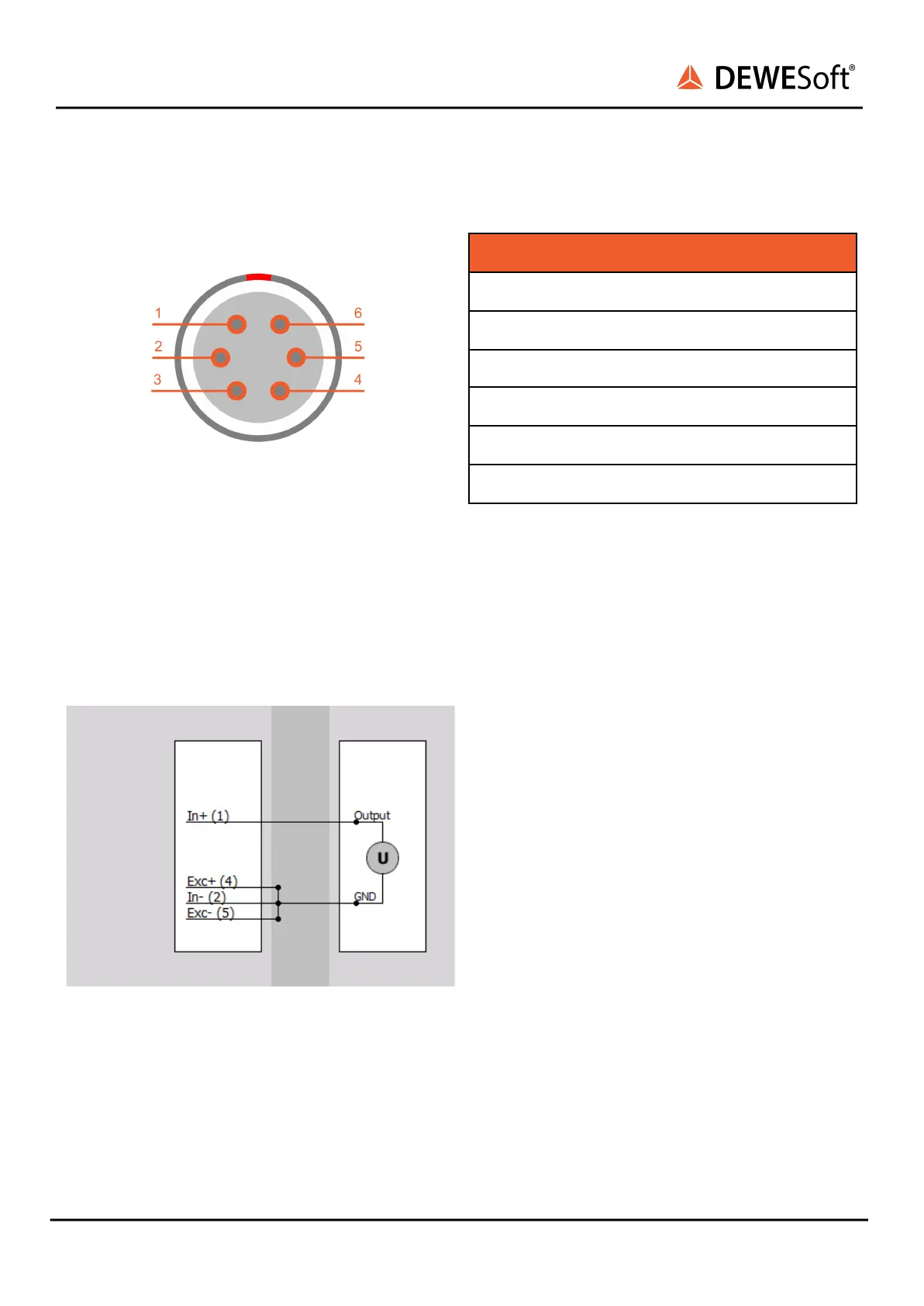

5.4.2.1. RTD: LEMO L0B6f Connector: Pinout
RTD connector: pin-out (6-pin LEMO female)
Pin
Name
Description
1
In+
Input+
2
In-
Input-
3
NC
Do not connect
4
Exc+
Excitation+
5
Exc-
Excitation-
6
NC
Do not connect
RTD connector (on the device): EEA.0B.306.CLN
Mating connector (for the cable): FGA.0B.306.CLAD21Z
5.4.2.2. RTD: LEMO L0B6f Connector: Wiring diagram
5.4.2.2.1. RTD: Voltage
IOLITE® V20-1 99/153
