5.1.7. DIO: Connectors
IOLITEi-32xDI and IOLITEi-32xDO modules have 9-pin terminal block connectors with 2.50 mm pitch for
digital input / output. 8 pins on a 9-pin connector bank are used for digital inputs and pin 9 for common
GND.
Additionally, there is a 2-pin terminal block connector with a 2.50 mm pitch for PWR OUT function.

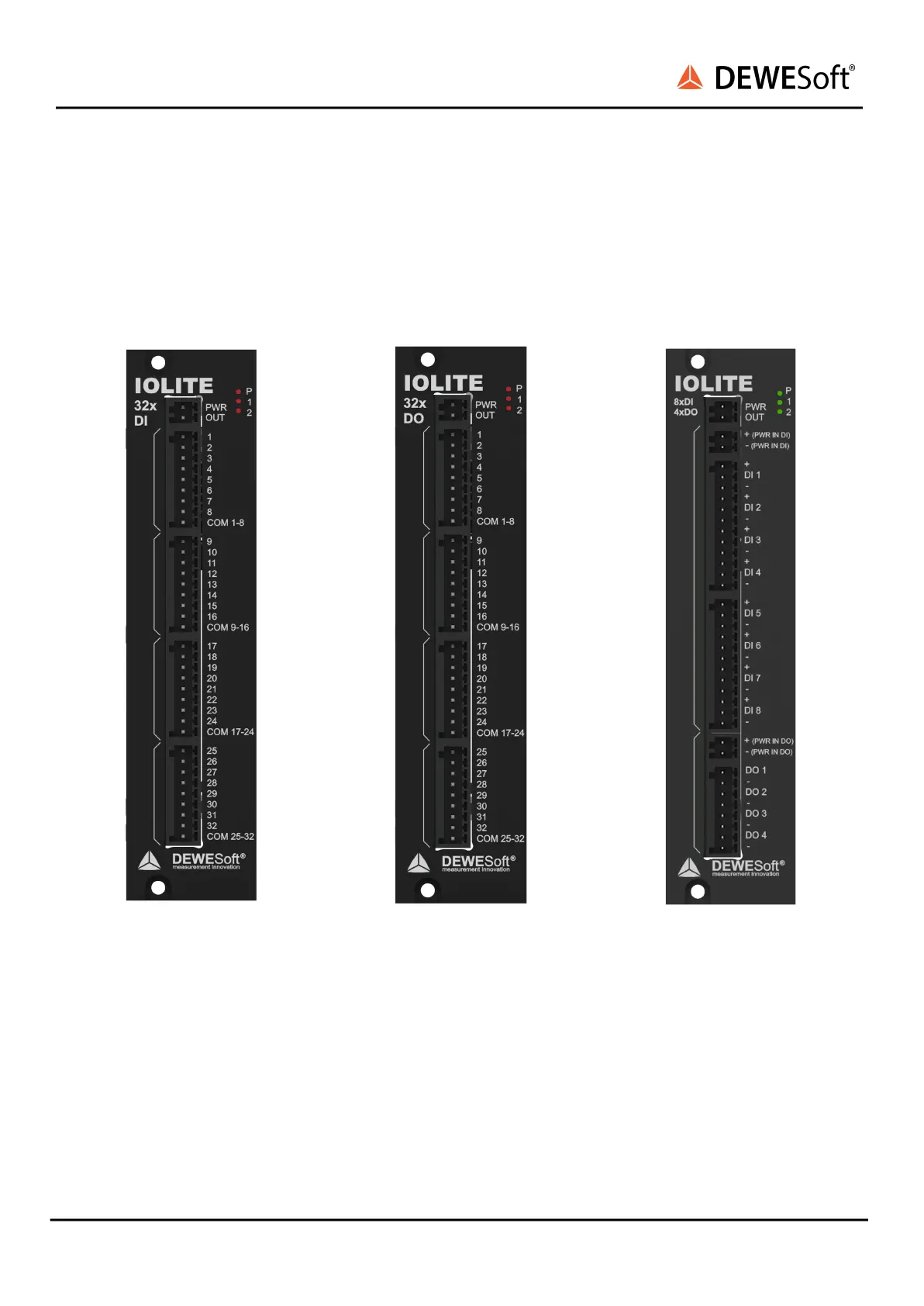

IOLITEi-32xDI front
IOLITEi-32xDO front
IOLITEi-8xDI-4xDO front
