5.2.4.7. IOLITE-16xLV Connectors
IOLITE-16xLV TBLOCK modules have 4 TBLOCK connectors for analog input.

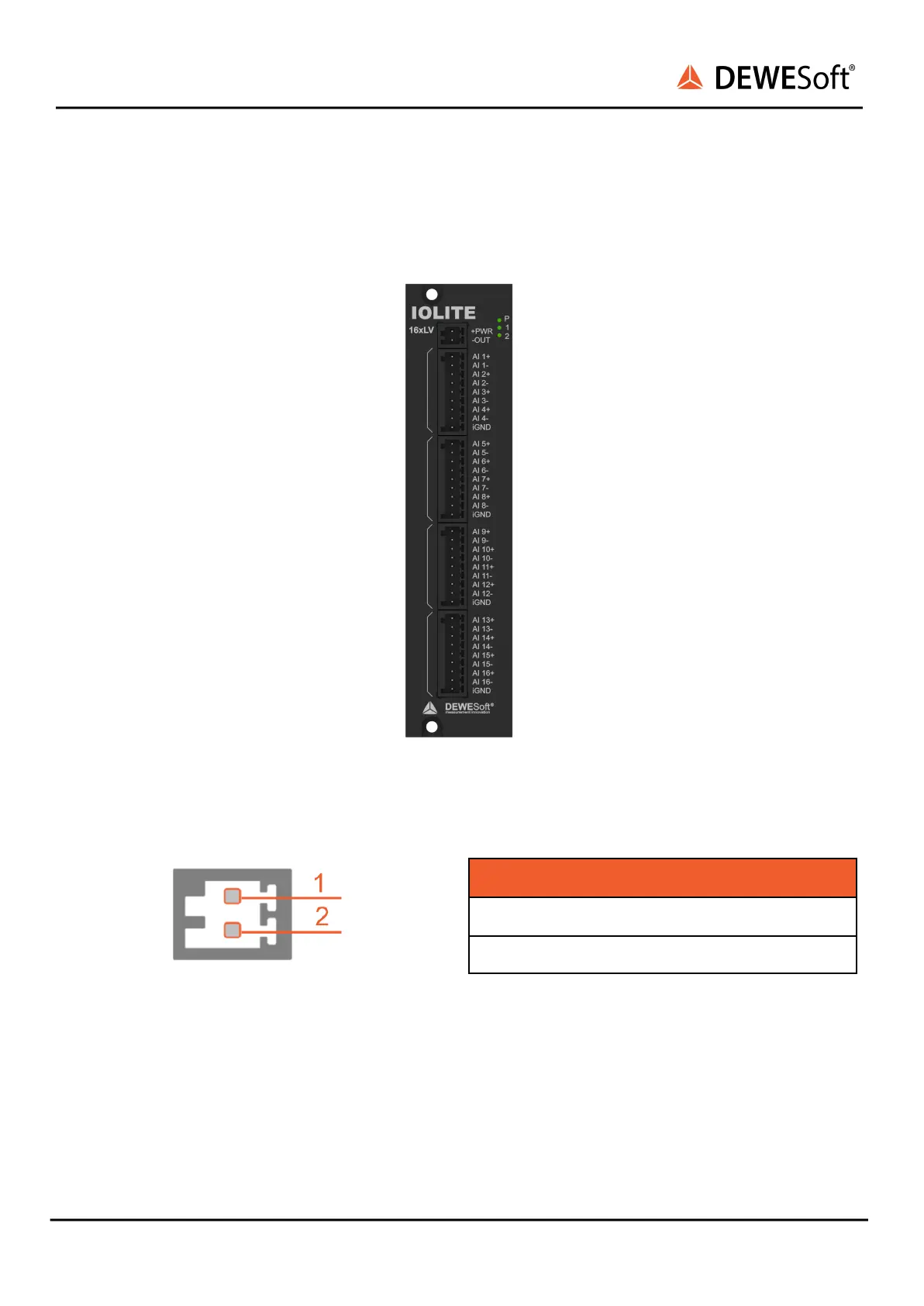

IOLITEi-16xLV-TBLOCK front
5.2.4.8. IOLITE-16xLV: TBLOCK Power Connector: Pinout
LV connector: pin-out (TBLOCK male)
Pin
Name
Description
1
IN+
Analog input +
2
IN-
Analog input -
Connector (on the device): OMNIMATE Signal SL 2.50/02/90G
Mating connector (for the cable): OMNIMATE Signal BLF 2.50/02/180
