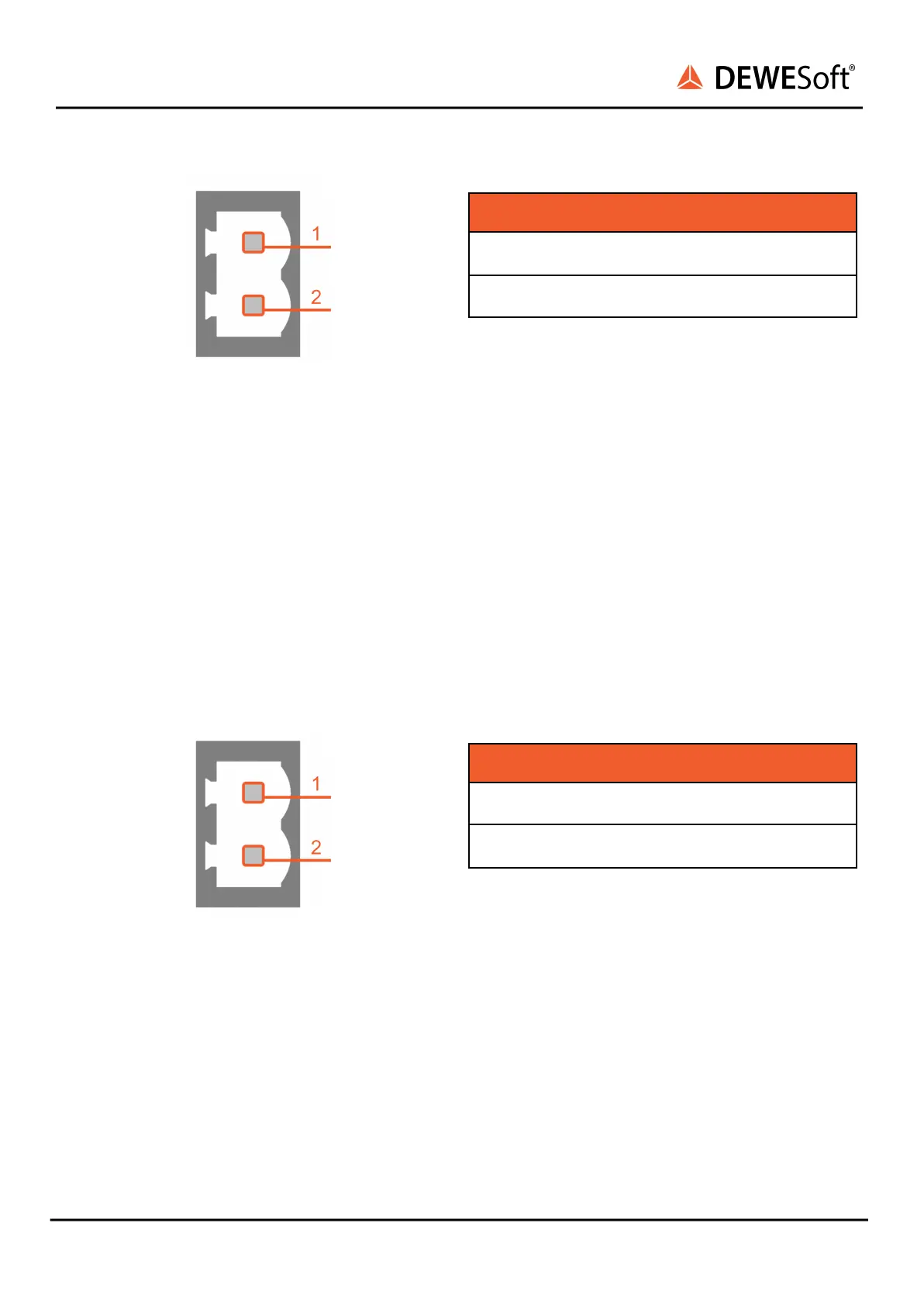

Power in connector: pin-out (2-pin male)
Connector (on the device):
SL-SMT 5.08HC/02/90F 3.2SN BK BX
Mating Connectors (for the cable):
BLF 5.08HC/02/180 SN BK BX
BLZP 5.08HC/02/180 SN BK BX
4.3.2.10.1. IOLITE - Multi channel: PWR OUT
Pin
Name
Description
1
+
Supply
2
-
Ground
Power in connector: pin-out (2-pin male)
Connector (on the device):
SL-SMT 5.08HC/02/90F 3.2SN BK BX
Mating Connectors (for the cable):
BLF 5.08HC/02/180 SN BK BX
BLZP 5.08HC/02/180 SN BK BX
Pin
Name
Description
1
+
Supply
2
-
Ground
4.3.2.10.2. EtherNET in
Connector used on the device is a standard Ethernet connector (RJ45).
IOLITE® V20-1 55/153
