5.3.3. LA: T2A2f Connector

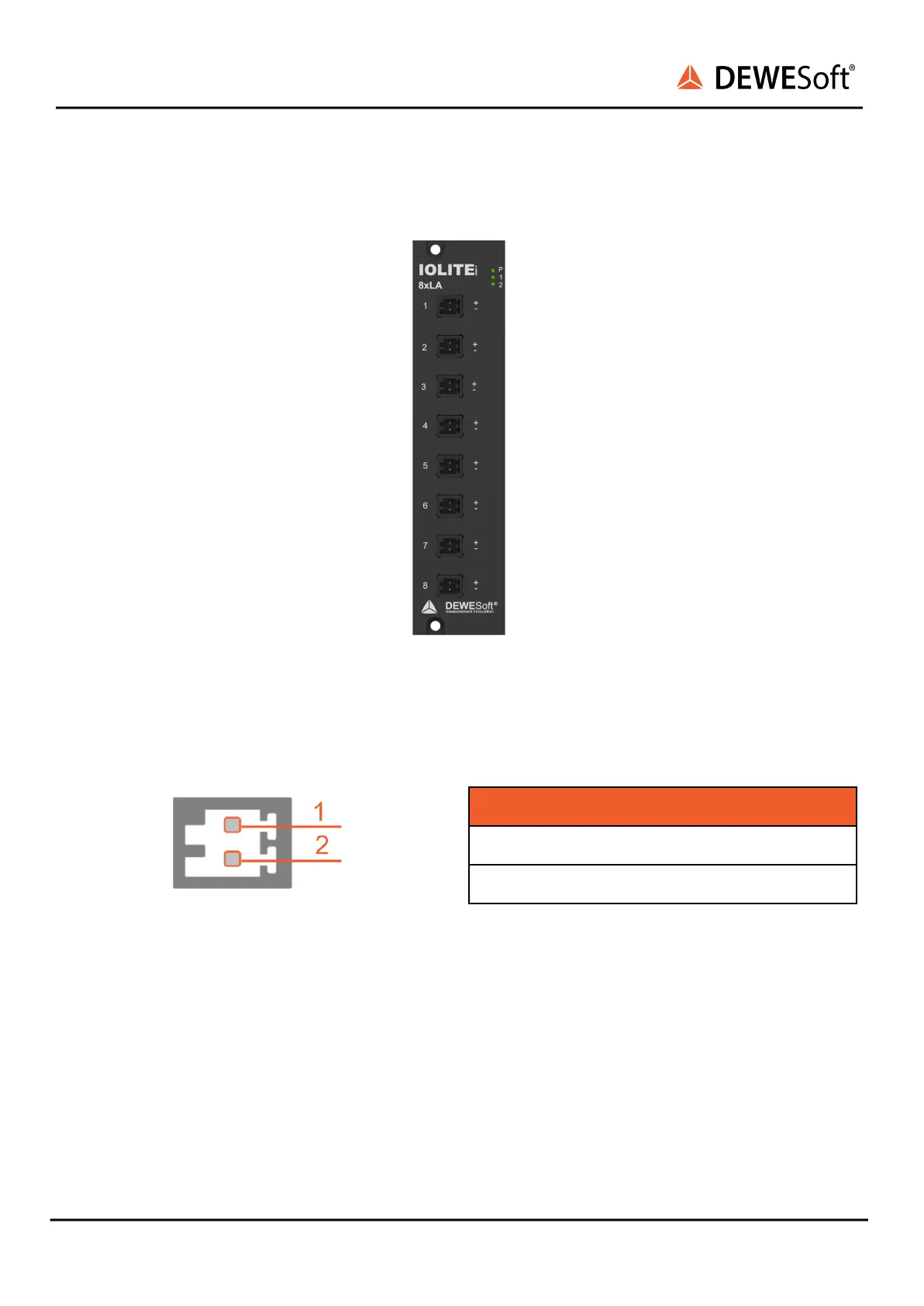

IOLITE-8xLA-T2A2f module
5.3.3.1. 8xLA: TBLOCK Connector: Pinout
LA connector: pin-out (TBLOCK male)
Pin
Name
Description
1
IN+
Analog input +
2
IN-
Analog input -
Connector (on the device): OMNIMATE Signal SL 2.50/02/180G 3.2SN BK BX
Mating connector (for the cable): OMNIMATE Signal BLF 2.50/02/180
